Outlaw XP - Bad Boy Zero-Turn Mower (2018) 824CC YAMAHA Parts Diagram

Zero-Turn Mower

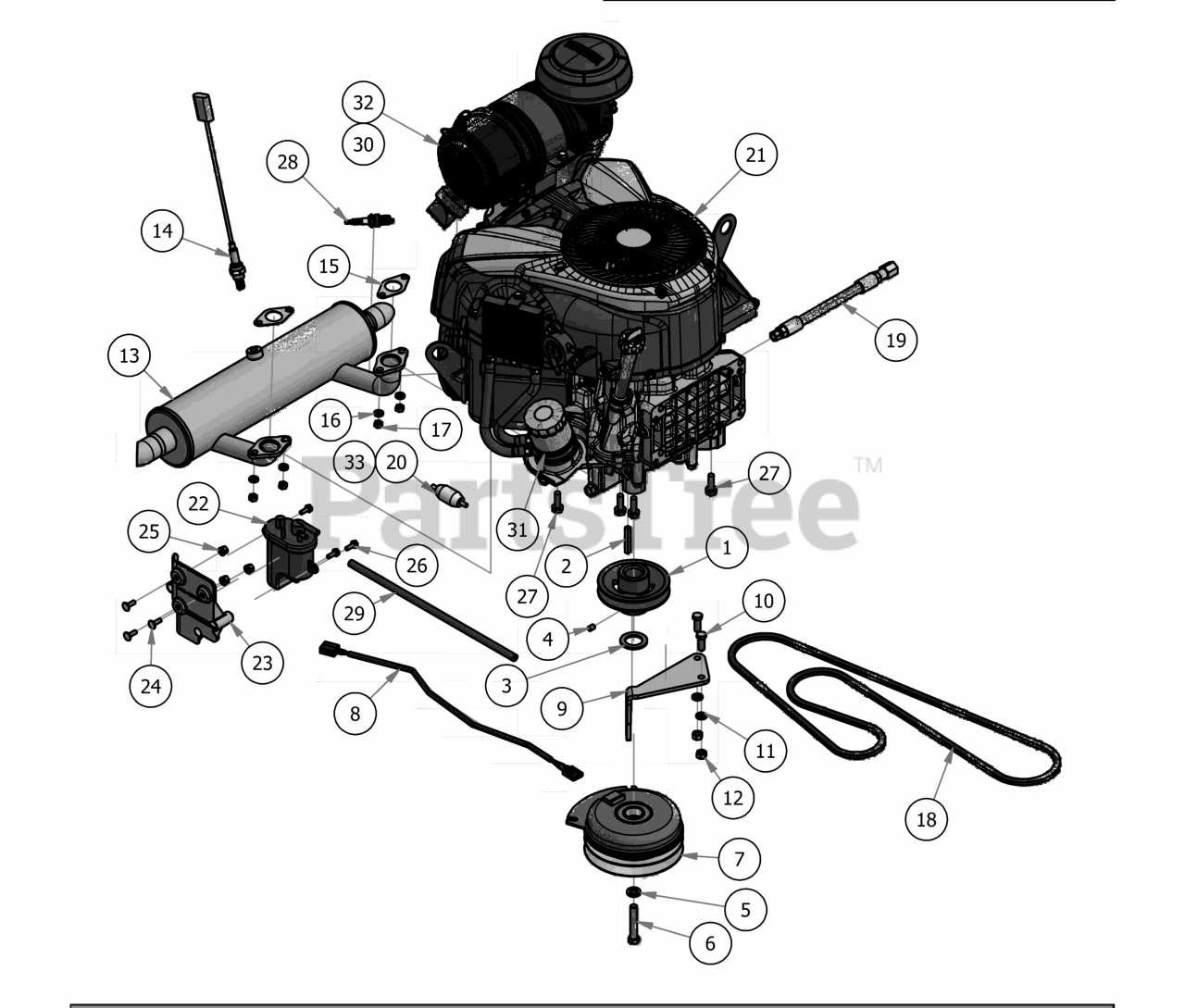

824CC YAMAHA Parts Diagram

  • Title

1

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 2 left!

0

2

Bad Boy 042-5020-00

1/4 x 2 Square key Stock

$3.49

$

In Stock, only 1 left!

0

3

Bad Boy 019-6029-00

1 1/8" Flat Spacer

$1.49

$

In Stock, only 2 left!

0

4

Bad Boy 030-6029-00

3/8" Set Screw

$0.99

$

In Stock, only 2 left!

0

5

Bad Boy 019-8053-00

7/16" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

6

Bad Boy 018-5300-00

7/16" x 2 1/2" Hex Bolt

$1.49

$

In Stock, only 2 left!

0

7

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 20+

0

8

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

9

Bad Boy 057-5906-00

PTO Engager Holder

$22.99

$

In Stock, only 2 left!

0

10

Bad Boy 018-6049-00

3/8" x 1" Hex Bolt

$0.99

$

In Stock, Qty 13

0

11

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 8

0

12

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

13

Bad Boy 015-0050-00

Yamaha Muffler

$186.99

$

Usually ships in 4-7 days

0

14

Bad Boy 015-0053-05

O2 Sensor for Yamaha

$292.99

$

Usually ships in 4-7 days

0

15

Bad Boy 015-0053-01

Exhaust Gasket for yamaha

$8.49

$

Usually ships in 4-7 days

0

16

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 4 left!

0

17

Bad Boy 013-0075-00

M8-1.25 Zinc Nut

$3.49

$

Usually ships in 4-7 days

0

18

Bad Boy 041-8411-00

Pump Belt Diesel

$68.99

$

In Stock, Qty 11

0

19

Bad Boy 051-5403-00

Oil drain Hose for Yamaha

$38.99

$

Usually ships in 4-7 days

0

20

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 19

0

21

Bad Boy 015-0053-00

Yamaha 33hp Engine

$3418.99

$

Usually ships in 4-7 days

0

22

Bad Boy 015-0053-03

Yamaha Fuel Pump

$649.99

$

Usually ships in 4-7 days

0

23

Bad Boy 015-0053-04

Yamaha Fuel Pump Bracket

$56.99

$

Usually ships in 4-7 days

0

24

Bad Boy 019-8040-00

1/4" x 3/4" Carriage Bolt

$1.99

$

In Stock, only 3 left!

0

25

Bad Boy 013-2050-00

1/4-20 Nylon Insert flange Nut

$1.49

$

In Stock, only 2 left!

0

26

Bad Boy 018-0099-00

M6-1.0x16mm Washer Head Hex Bolt

$

$

Currently unavailable

27

Bad Boy 018-1075-00

3/8 x 1 1/8 bolt

$1.99

$

In Stock, Qty 11

0

28

Bad Boy 015-0053-06

Spark Plug - Yamaha

$11.99

$

In Stock, only 2 left!

0

29

Bad Boy 051-8067-00

1/4 Fuel Line 15"

$6.99

$

In Stock, only 3 left!

0

30

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 10

0

31

Bad Boy 015-0053-02

Oil Filter

$36.99

$

In Stock, Qty 8

0

32

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, only 4 left!

0

33

Bad Boy 015-0053-21

Yamaha Fuel Filter

$

$

Not available
