Outlaw - Bad Boy Zero-Turn Mower (2018) OUTLAW FLOORBOARD & BATTERY Parts Diagram

Zero-Turn Mower

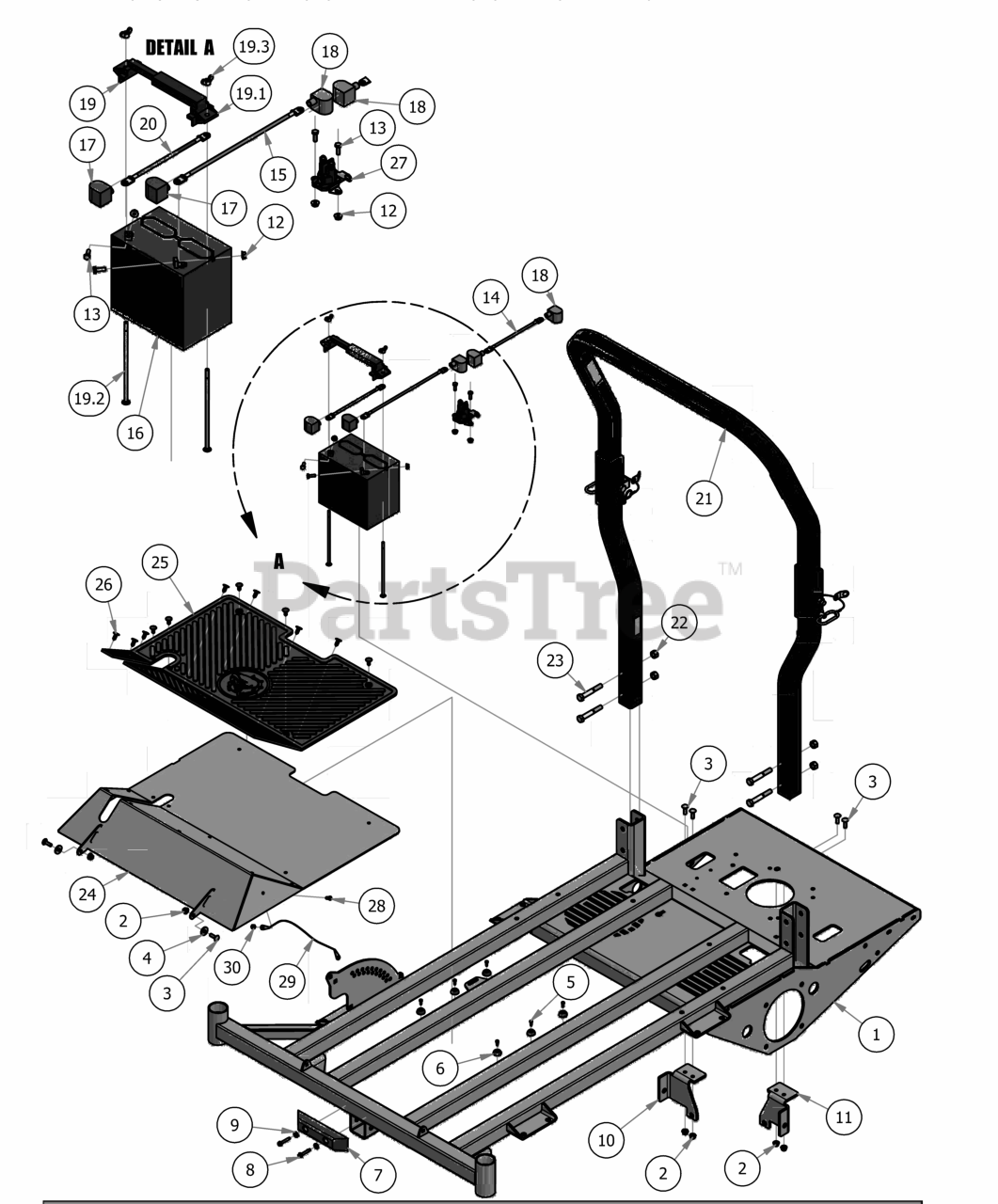

OUTLAW FLOORBOARD & BATTERY Parts Diagram

  • Title

1

Bad Boy 070-5370-17

2017 Standard/Extreme Outlaw Frame

$

$

Not available

2

Bad Boy 013-8049-00

5/16" Nylock Flange Nut Zinc

$0.99

$

In Stock, Qty 17

0

3

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, Qty 7

0

4

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, Qty 11

0

5

Bad Boy 030-3050-00

#10 x 1/2" Self Tapping Screw

$0.99

$

In Stock, Qty 9

0

6

Bad Boy 029-4010-00

Button Bumper

$1.49

$

Usually ships in 4-7 days

0

7

Bad Boy 029-7038-00

8" Rubber Bumper

$30.99

$

Usually ships in 4-7 days

0

8

Bad Boy 030-7039-00

1/4" x 1 1/2" Self Tapping Screw

$0.99

$

Usually ships in 4-7 days

0

9

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 7

0

10

Bad Boy 039-2113-00

Outlaw Brake Cable Mount Bracket (Right)

$17.99

$

Usually ships in 0 days

0

11

Bad Boy 039-2110-00

Outlaw Brake Cable Mounting Bracket (left)

$17.99

$

Usually ships in 0 days

0

12

Bad Boy 013-9001-00

1/4-20 Hex Flange Nuts Zinc w/Serrations

$0.99

$

In Stock, only 4 left!

0

13

Bad Boy 018-8052-00

1/4-20 x 3/4 GR 5 Hex Bolts Zinc

$0.99

$

In Stock, only 3 left!

0

14

Bad Boy 086-0003-00

Red Battery Cable Alternator to Starter Cable (Kohler Engine Only)

$8.49

$

Usually ships in 4-7 days

0

15

Bad Boy 064-5301-00

12 in red battery cable

$18.99

$

In Stock, only 2 left!

0

16

Bad Boy 068-8049-00

Battery

$

$

Not available

17

Bad Boy 103-5400-00

Black Boot For Ground Cable

$4.99

$

Usually ships in 4-7 days

0

18

Bad Boy 103-5300-00

Red Boot

$6.49

$

Usually ships in 4-7 days

0

19

Bad Boy 043-8929-00

Hold Down Assembly

$18.99

$

In Stock, Qty 11

0

20

Bad Boy 086-0005-00

Ground Cable

$10.99

$

Usually ships in 4-7 days

0

21

Bad Boy 089-0002-00

2015 Outlaw 2x2 Folding ROPS

$452.99

$

Usually ships in 0 days

0

22

Bad Boy 013-0005-00

1/2" Center Lock Nut

$3.49

$

Usually ships in 4-7 days

0

23

Bad Boy 018-0050-00

1/2-13 X 3.25 Hex Bolt - Grade 5

$0.99

$

Usually ships in 4-7 days

0

24

Bad Boy 079-3130-00

2016 Outlaw Floor Panel

$136.99

$

Usually ships in 0 days

0

25

Bad Boy 081-2050-00

Outlaw Floor Mat

$50.99

$

Usually ships in 4-7 days

0

26

Bad Boy 040-6080-00

Ratchet Fastener

$3.49

$

In Stock, only 3 left!

0

27

Bad Boy 108-0001-00

Solenoid (Kohler Engine Only)

$31.99

$

In Stock, Qty 12

0

28

Bad Boy 018-8064-00

1/4" x 5/8" BS C/S 18-8 SS

$0.99

$

Usually ships in 4-7 days

0

29

Bad Boy 064-2006-00

Floor board Cable W/ Swivel Ends

$16.99

$

Usually ships in 4-7 days

0

30

Bad Boy 013-8039-00

1/4" Hex Nut

$0.99

$

Usually ships in 4-7 days

0

19.1

Bad Boy 043-8929-00

Battery Hold Down

$18.99

$

In Stock, Qty 11

0

19.2

Bad Boy 018-8050-00

1/4"-20 x 8" Carriage Bolt

$1.99

$

In Stock, Qty 12

0

19.3

Bad Boy 013-8051-00

1/4" Wing Nut

$0.99

$

In Stock, Qty 5

0
