Outlaw - Bad Boy Zero-Turn Mower (2018) OUTLAW ACTUATOR BAR & REAR COVER Parts Diagram

Zero-Turn Mower

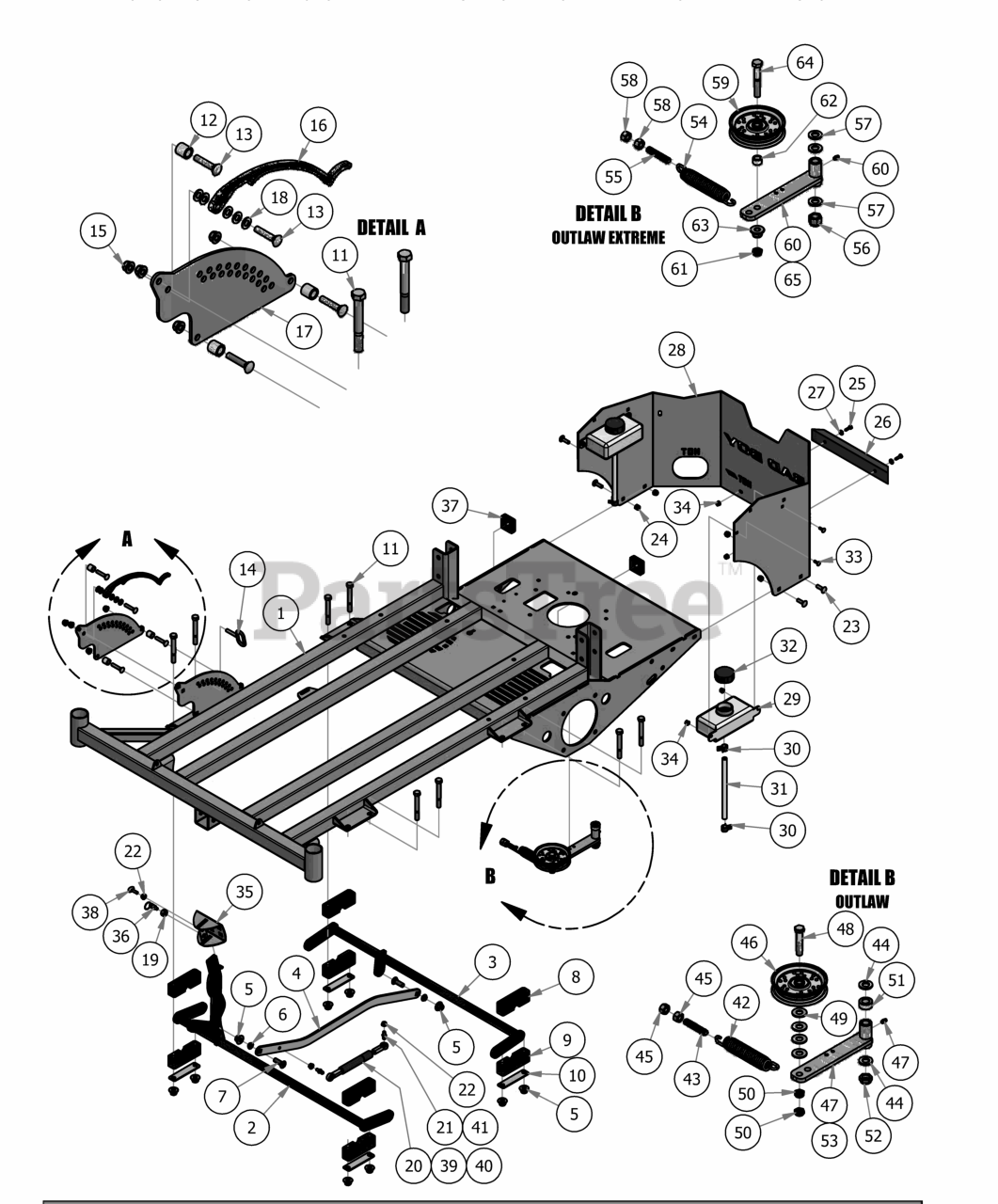

OUTLAW ACTUATOR BAR & REAR COVER Parts Diagram

  • Title

1

Bad Boy 070-5370-17

2017 Standard/Extreme Outlaw Frame

$

$

Not available

2

Bad Boy 028-6030-00

2015 Outlaw Act Bar Assembly (Front)

$181.99

$

Usually ships in 4-7 days

0

3

Bad Boy 028-6040-00

2015 Outlaw Act Bar Assembly (Rear)

$166.99

$

Usually ships in 4-7 days

0

4

Bad Boy 028-6050-00

Outlaw Deck Linkage Rod

$30.99

$

Usually ships in 4-7 days

0

5

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

6

Bad Boy 032-3000-00

Bushing- SF-1620-4

$1.49

$

Usually ships in 4-7 days

0

7

Bad Boy 018-0008-00

1/2 x 1-1/2 Carriage Bolt

$1.99

$

Usually ships in 4-7 days

0

8

Bad Boy 017-9000-00

Two Piece Pillow Block (Male)

$11.99

$

Usually ships in 4-7 days

0

9

Bad Boy 017-9050-00

Two Piece Pillow Block (Female)

$11.99

$

Usually ships in 4-7 days

0

10

Bad Boy 017-9025-00

Two Piece Pillow Block Strap

$34.99

$

Usually ships in 4-7 days

0

11

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, Qty 6

0

12

Bad Boy 025-5203-00

Spacer 3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 17

0

13

Bad Boy 018-0009-00

3/8 x 1 3/4 Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

14

Bad Boy 040-4000-00

Deck height lever pin

$18.99

$

In Stock, only 3 left!

0

15

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, Qty 20+

0

16

Bad Boy 031-0100-00

Outlaw Deck Lever Lock

$19.99

$

Usually ships in 4-7 days

0

17

Bad Boy 026-2100-00

Outlaw Height Indicator Plate (Outer)

$13.99

$

Usually ships in 4-7 days

0

18

Bad Boy 019-2003-00

.390 x .750 x .062 Nylon Washer

$0.99

$

Usually ships in 4-7 days

0

19

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

20

Bad Boy 087-5400-00

200 lb Gas Spring- 54" Deck outlaw

$66.99

$

Usually ships in 4-7 days

0

21

Bad Boy 018-2050-00

10mm Damper Ball Stud-Steering

$2.49

$

In Stock, only 4 left!

0

22

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, Qty 10

0

23

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, Qty 10

0

24

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

In Stock, only 2 left!

0

25

Bad Boy 018-4702-00

1/4-20 x 1-1/4 GR 5 Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

26

Bad Boy 029-7037-00

14" Rubber Bumper

$45.99

$

Usually ships in 4-7 days

0

27

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 7

0

28

Bad Boy 026-2190-00

Outlaw Rear Plate

$205.99

$

Usually ships in 0 days

0

29

Bad Boy 067-8085-00

Expansion Tank Outlaw

$33.99

$

In Stock, only 4 left!

0

30

Bad Boy 072-8074-00

5/8 Wire Clamp-Outlaw Only

$4.99

$

Usually ships in 4-7 days

0

31

Bad Boy 051-9000-00

5/8 Braided Hose

$4.99

$

In Stock, only 2 left!

0

32

Bad Boy 066-5050-00

Hydraulic Tank Cap

$16.99

$

In Stock, only 2 left!

0

33

Bad Boy 019-8040-00

1/4" x 3/4" Carriage Bolt

$1.99

$

In Stock, only 3 left!

0

34

Bad Boy 013-2050-00

1/4-20 Nylon Insert flange Nut

$1.49

$

In Stock, only 2 left!

0

35

Bad Boy 026-0013-00

Outlaw Deck Lift Pedal

$22.99

$

Usually ships in 4-7 days

0

36

Bad Boy 040-5000-00

Pull Pin

$22.99

$

Usually ships in 4-7 days

0

37

Bad Boy 014-9000-00

2X2 Frame Plug

$2.99

$

Usually ships in 4-7 days

0

38

Bad Boy 030-0010-00

5/16-18 x1 Thumb Screw Zinc

$3.49

$

Usually ships in 4-7 days

0

39

Bad Boy 087-6100-00

250 lb Gas Spring - 61" Deck Outlaw

$83.99

$

In Stock, only 2 left!

0

40

Bad Boy 087-7200-00

300 lb Gas Spring - 72" Deck Outlaw

$66.99

$

In Stock, only 3 left!

0

41

Bad Boy 018-2049-00

13mm Damper Ball Stud for 72" Deck only

$5.49

$

In Stock, Qty 5

0

54

Bad Boy 034-2009-00

2009 Deck/Pump Idler Spring

$19.99

$

In Stock, Qty 18

0

55

Bad Boy 018-2004-00

All Thread-Pump Idler Tensioner

$13.99

$

In Stock, only 4 left!

0

56

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

0

57

Bad Boy 019-6017-00

.630 ID Plastic Washer

$0.99

$

In Stock, Qty 20+

0

58

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

59

Bad Boy 033-6001-00

4 3/4 Idler Pulley - ABFI-76

$33.99

$

In Stock, Qty 20+

0

60

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 3 left!

0

61

Bad Boy 018-4010-00

1/2" Nylcock Nut (1/2 Jam)

$1.99

$

In Stock, Qty 11

0

62

Bad Boy 025-7036-00

1/2 x 1/2 Spacer

$4.99

$

In Stock, only 2 left!

0

63

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

64

Bad Boy 018-6036-00

1/2 x 2-3/4 Hex Bolt

$1.99

$

In Stock, only 4 left!

0

65

Bad Boy 039-6945-03

Pump Idler Assembly-Components:59,60,62,63,64

$56.99

$

Usually ships in 4-7 days

0
