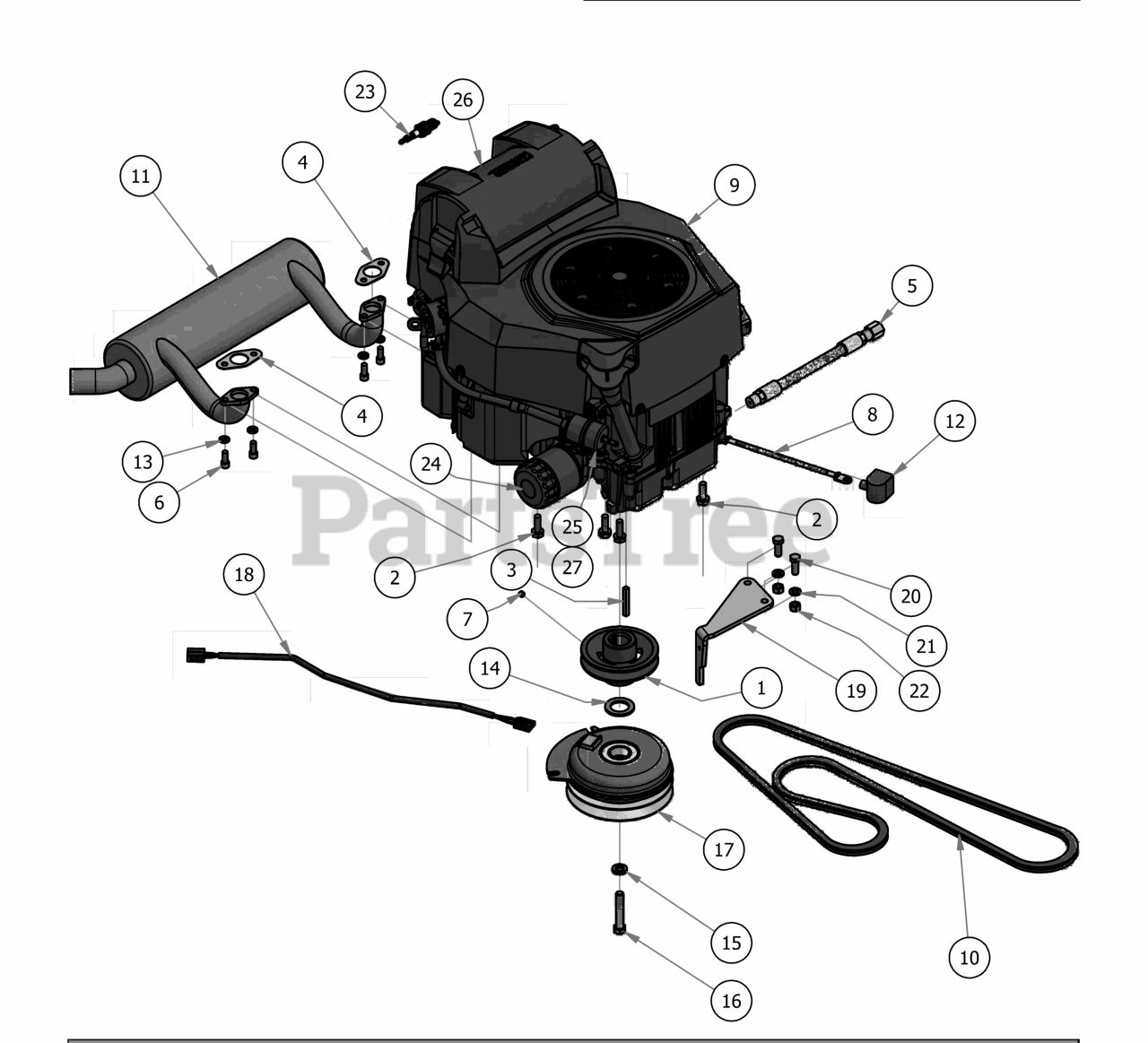

Outlaw - Bad Boy Zero-Turn Mower (2018) 747CC KOHLER Parts Diagram

Zero-Turn Mower

747CC KOHLER Parts Diagram

  • Title

1

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 2 left!

0

2

Bad Boy 018-1075-00

3/8 x 1 1/8 bolt

$1.99

$

In Stock, Qty 11

0

3

Bad Boy 042-5020-00

1/4 x 2 Square key Stock

$3.49

$

In Stock, only 1 left!

0

4

Bad Boy 015-2751-00

Exhaust Gasket

$6.99

$

In Stock, only 3 left!

0

5

Bad Boy 015-5401-00

Oil drain Valve

$37.99

$

Usually ships in 4-7 days

0

6

Bad Boy 018-8067-00

5/16-18 x 3/4 Socket C/S

$1.99

$

In Stock, Qty 8

0

7

Bad Boy 030-0050-00

5/16 Set Screw

$1.99

$

In Stock, Qty 20+

0

8

Bad Boy 086-0005-00

Ground Cable

$10.99

$

Usually ships in 4-7 days

0

9

Bad Boy 015-2030-00

Kohler-2014 CZT/Outlaw 747cc

$3190.99

$

Usually ships in 4-7 days

0

10

Bad Boy 041-5048-00

Pump Belt

$64.99

$

In Stock, Qty 19

0

11

Bad Boy 015-0065-00

2014 Kohler Outlaw Muffler

$240.99

$

Usually ships in 4-7 days

0

12

Bad Boy 103-5400-00

Black Boot For Ground Cable

$4.99

$

Usually ships in 4-7 days

0

13

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 4 left!

0

14

Bad Boy 019-6029-00

1 1/8" Flat Spacer

$1.49

$

In Stock, only 2 left!

0

15

Bad Boy 019-8053-00

7/16" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

16

Bad Boy 018-5300-00

7/16" x 2 1/2" Hex Bolt

$1.49

$

In Stock, only 2 left!

0

17

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 20+

0

18

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

19

Bad Boy 057-5906-00

PTO Engager Holder

$22.99

$

In Stock, only 2 left!

0

20

Bad Boy 018-6049-00

3/8" x 1" Hex Bolt

$0.99

$

In Stock, Qty 13

0

21

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 8

0

22

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

23

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 17

0

24

Bad Boy 063-5000-00

725 & 747 Kohler Oil Filter

$23.99

$

In Stock, Qty 6

0

25

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 19

0

26

Bad Boy 063-5005-00

747 Kohler Air Filter

$53.99

$

In Stock, Qty 7

0

27

Bad Boy 015-0077-07

Kohler Fuel Filter

$17.99

$

Usually ships in 4-7 days

0
