OS 901 SPHD - Billy Goat Overseeder TRANSMISSION Parts Diagram

Overseeder

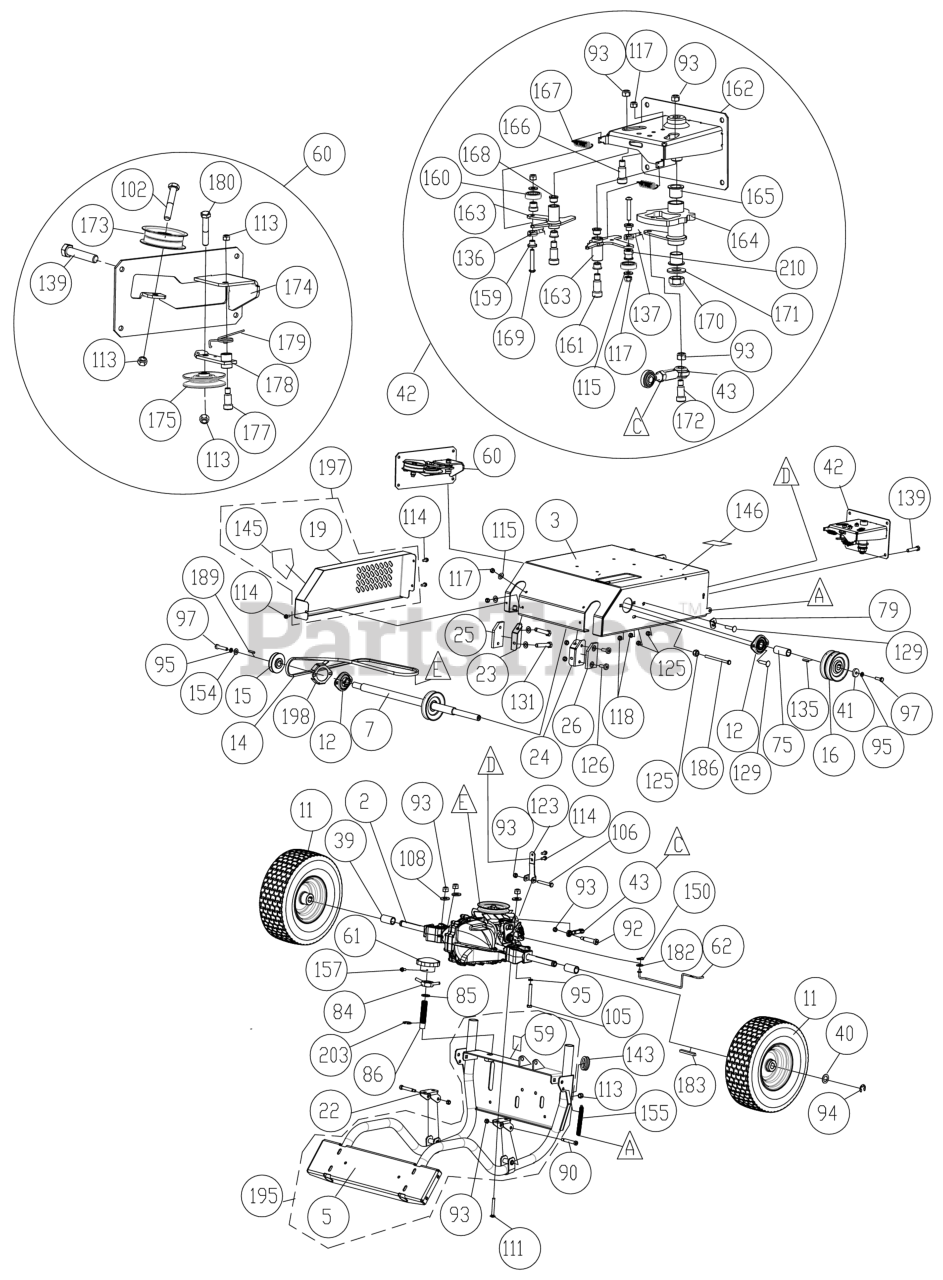

TRANSMISSION Parts Diagram

  • Title
2

Billy Goat 351201

TRANSAXLE

$1801.99

$

Usually ships in 2-11 days

0

3

Billy Goat 351125

ENGINE BASE WA

$

$

Currently unavailable

5

Billy Goat 351126

FRAME SUPPORT OS900SP WA

$

$

Currently unavailable

7

Billy Goat 351107

JACKSHAFT WA

$

$

Not available

11

Billy Goat 351202

REAR WHEEL13" X 5" PNEU ASSY

$142.99

$

In Stock, only 2 left!

0

12

Billy Goat 850232

BEARING & FLANGETTE ASSY .75"

$45.99

$

In Stock, only 1 left!

0

14

Billy Goat 351327

BELT, TRUFLEX OS9 SERIES DRIVE

$27.99

$

In Stock, only 2 left!

0

15

Billy Goat 351325

PULLEY 0.75 I.D. X 3.50

$59.99

$

Usually ships in 2-11 days

0

16

Billy Goat 351210

PULLEY 0.75" ID X 4" 4L SECTION

$90.99

$

In Stock, only 1 left!

0

19

Billy Goat 351118

GUARD DRIVE BELT

$79.99

$

Usually ships in 2-11 days

0

22

Billy Goat 351226

BRACKET FIXED FRONT FRAME

$18.99

$

Usually ships in 2-11 days

0

23

Billy Goat 351227

BRACKET RH WEAR PAD

$18.99

$

Usually ships in 2-11 days

0

24

Billy Goat 351228

BRACKET LH WEAR PAD

$18.99

$

Usually ships in 2-11 days

0

25

Billy Goat 351229

WEAR PAD RH

$27.99

$

Usually ships in 2-11 days

0

26

Billy Goat 351230

WEAR PAD LH

$27.99

$

Usually ships in 2-11 days

0

39

Billy Goat 351409

SPACER REAR WHEEL

$7.99

$

Usually ships in 2-11 days

0

40

Billy Goat 850238

WASHER .765" ID X 1.25 OD X .06"

$1.49

$

In Stock, only 2 left!

0

41

Billy Goat 441150

WASHER 1.125 OD X 0.344 ID X .25 THK ZP

$3.99

$

Usually ships in 2-11 days

0

42

Billy Goat 351011

SPEED CONTROL ASSY

$

$

Not available

43

Billy Goat 351015

CONNECTOR SPEED CONTROL

$30.99

$

Usually ships in 2-11 days

0

59

Billy Goat 351504

LABEL DEPTH GAUGE

$

$

Not available

60

Billy Goat 351614

MULE ASSY OS901SP

$298.99

$

Usually ships in 2-11 days

0

61

Billy Goat 850154

KNOB HAND

$10.99

$

In Stock, only 1 left!

0

62

Billy Goat 351304

ROD, BYPASS ARM TRANSAXLE

$86.99

$

Usually ships in 2-11 days

0

75

Billy Goat 351415

SPACER PULLEY JACKSHAFT

$9.99

$

In Stock, only 1 left!

0

79

Billy Goat 351200

BRACKET CLUTCH CABLE

$20.99

$

Usually ships in 2-11 days

0

84

Billy Goat 800227

LOCKNUT WA

$25.99

$

In Stock, only 1 left!

0

85

Billy Goat 800109

WASHER 3\4" NYLON

$1.49

$

In Stock, only 1 left!

0

86

Billy Goat 351311

STUD 3/4"-10 X 3 3/4 PLTD

$33.99

$

In Stock, only 1 left!

0

90

Billy Goat 360153

BOLT SHOULDER 3/8" X 2"

$4.49

$

Usually ships in 2-11 days

0

92

Billy Goat 830528

BOLT SHOULDER 3/8" X 1/2"

$4.99

$

Usually ships in 2-11 days

0

93

Billy Goat 8160002

NUT LOCK 5/16"-18 HEX Z/P

$0.99

$

In Stock, only 4 left!

0

94

Billy Goat 850230

RING RETAINING "E" 3/4"

$0.99

$

Usually ships in 2-11 days

0

95

Billy Goat 8177011

WASHER LOCK 5/16 ST MED

$0.99

$

In Stock, Qty 10

0

97

Billy Goat 400164

SCREWCAP 5/16"-24 X 1" GR.8 ZP W/PATCH

$

$

Not available

102

Billy Goat 8041053

SCREWCAP 3/8"-16 X 1 3/4" HCS ZP

$1.49

$

Usually ships in 2-11 days

0

105

Billy Goat 8041036

SCREWCAP 5/16"-18 X 3" HCS ZP

$1.49

$

Usually ships in 2-11 days

0

106

Billy Goat 8041032

SCREWCAP 5/16"-18X2" HCS ZP

$0.99

$

In Stock, Qty 6

0

108

Billy Goat 8171003

WASHER 5/16" FLATWASHER Z/P

$0.99

$

In Stock, Qty 10

0

111

Billy Goat 8024047

BOLT CARRISGE 5/16-18 X 2 3/4" ZP

$0.99

$

Usually ships in 2-11 days

0

113

Billy Goat 8160003

NUT LOCK 3/8"-16 HEX

$0.99

$

In Stock, Qty 6

0

114

Billy Goat 890359

SCREW SELF TAP 1/4"-20 X 5/8" HWH TYPE F

$1.49

$

Usually ships in 2-11 days

0

115

Billy Goat 8172007

WASHER 1/4"SAE9/32"X5/8"X1/16"

$0.99

$

In Stock, Qty 7

0

116

Billy Goat 8172009

WASHER 3/8"SAE 13/32"X13/16"X1/16"

$1.49

$

In Stock, Qty 5

0

117

Billy Goat 8160001

NUT LOCK 1/4"-20 HEX Z/P

$0.99

$

In Stock, Qty 8

0

118

Billy Goat 350346

NUT FLANGE 5/16"-18 ZP

$0.99

$

Usually ships in 2-11 days

0

123

Billy Goat 351294

BRACKET TORQUE LIMITING

$24.99

$

Usually ships in 2-11 days

0

125

Billy Goat 350346

NUT FLANGE 5/16"-18 ZP

$0.99

$

Usually ships in 2-11 days

0

126

Billy Goat 351263

SCREW SPOT WELD 5/16"-18 X 3/4 W/PROJ

$1.49

$

Usually ships in 2-11 days

0

129

Billy Goat 8024039

BOLT CARRIAGE 5/16"-18 X 3/4" ZP

$0.99

$

In Stock, Qty 10

0

131

Billy Goat 8041006

SCREWCAP 1/4"-20 X 1" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

135

Billy Goat 9201080

KEY 3/16" SQ X 1 1/4"

$

$

Not available

136

Billy Goat 351219

SEE: 351219-S
(Superseded to 351219-S)

$54.99

$

In Stock, only 2 left!

0

137

Billy Goat 351271

SEE: 351271-S
(Superseded to 351271-S)

$52.99

$

In Stock, only 4 left!

0

139

Billy Goat 351264

SER HEX WASHER FLNG SCREW 5/16"-18 X 3/4"

$0.99

$

In Stock, Qty 6

0

143

Billy Goat 520092

GROMMET 1.25" HOLE

$3.99

$

Usually ships in 2-11 days

0

146

Billy Goat 351507

LABEL DRIVE RELEASE

$6.49

$

Usually ships in 2-11 days

0

150

Billy Goat 440193

PIN CLIP HITCH 0.051 X 3/4"

$0.99

$

In Stock, only 3 left!

0

153

Billy Goat 8161041

NUT LOCK 5/16"-18 LT WT TH ZP

$0.99

$

Usually ships in 2-11 days

0

154

Billy Goat 8172020

WASHER FLAT FENDER 5/16

$0.99

$

In Stock, only 4 left!

0

155

Billy Goat 351254

SPRING LIFT ASSIST

$9.99

$

In Stock, only 1 left!

0

157

Billy Goat 8059143

SCREW MACHINE #10-24 X 2" HWF ZP

$0.99

$

In Stock, only 1 left!

0

159

Billy Goat 351348

SPACER, SPEED CONTROL EYELET PM

$2.49

$

In Stock, only 2 left!

0

160

Billy Goat 351257

BEARING 1/2" ID X 1.125 OD

$4.99

$

In Stock, only 2 left!

0

161

Billy Goat 351258

BOLT SHOULDER 3/8" X 1 3/4"

$4.49

$

Usually ships in 2-11 days

0

162

Billy Goat 351108

BRACKET SPEED CONTROL WA

$148.99

$

Usually ships in 2-11 days

0

163

Billy Goat 351109

BELLCRANK SPEED CONTROL WA

$77.99

$

Usually ships in 2-11 days

0

164

Billy Goat 351110

CAM SPEED CONTROL WA

$

$

Not available

165

Billy Goat 360183

BUSHING PIVOT FRAME AE

$6.99

$

Usually ships in 2-11 days

0

166

Billy Goat 500340

BOLT SHOULDER 5/16" X 1 1/2"

$2.99

$

In Stock, only 1 left!

0

167

Billy Goat 800242

SPRING EXTENSION

$4.49

$

Usually ships in 2-11 days

0

168

Billy Goat 840078

BUSHING 3/8 ID X 1/2 OD X 3/8

$4.49

$

In Stock, only 2 left!

0

169

Billy Goat 840199

SCREWCAP 1/4-20 X 1 3/4 SKT BUT HD

$1.99

$

In Stock, only 4 left!

0

170

Billy Goat 8161046

NUT LOCK 5/8"-11 LT WT TH Z/P

$0.99

$

Usually ships in 2-11 days

0

171

Billy Goat 8172013

WASHER FLAT 5/8" SAE ZP

$0.99

$

Usually ships in 2-11 days

0

172

Billy Goat 8041028

SCREWCAP 5/16"-18 X 1" HCS ZP

$0.99

$

In Stock, Qty 7

0

173

Billy Goat 350114

PULLEY IDLER 2.75" OD X 3/8" BORE

$41.99

$

In Stock, only 1 left!

0

174

Billy Goat 351104

BRACKET DRIVE BELT WA

$80.99

$

Usually ships in 2-11 days

0

175

Billy Goat 351216

PULLEY 3V GROOVE IDLER

$34.99

$

Usually ships in 2-11 days

0

177

Billy Goat 520031

BOLT SHOULDER 1/2" X 2"

$6.99

$

In Stock, only 1 left!

0

178

Billy Goat 351120

ARM IDLER MULE DRIVE WA OS900SP

$32.99

$

Usually ships in 2-11 days

0

179

Billy Goat 351302

SPRING, IDLER MULE DRIVE

$3.99

$

Usually ships in 2-11 days

0

180

Billy Goat 8041052

SCREWCAP 3/8" - 16 X 1/2" HCS ZP

$1.49

$

Usually ships in 2-11 days

0

182

Billy Goat 8172005

WASHER #10SAE 7/32"X1/2"X1/16"

$0.99

$

In Stock, only 2 left!

0

183

Billy Goat 9201087

KEY 3/16" SQ X 2 1/8"

$2.99

$

In Stock, only 2 left!

0

186

Billy Goat 8041042

SCREWCAP 5/16"-18 X 5" HCS ZP

$1.49

$

Usually ships in 2-11 days

0

189

Billy Goat 9201072

KEY 3/16" SQ X 5/8"

$2.99

$

In Stock, only 2 left!

0

195

Billy Goat 351613

FRAME SUPPORT OS901SP W/LABELS

$450.99

$

Usually ships in 2-11 days

0

197

Billy Goat 351609

DRIVE BELT GUARD WA W/LABELS

$115.99

$

Usually ships in 2-11 days

0

198

Billy Goat 351326

BRACKET, BELT GUIDE OS901SP

$20.99

$

Usually ships in 2-11 days

0

203

Billy Goat 850233

RING SNAP TRUARC 5/8"

$0.99

$

In Stock, only 1 left!

0

210

Billy Goat 351347

SPACER. SPEED CONTROL STEPPED PM

$3.99

$

Usually ships in 2-11 days

0
