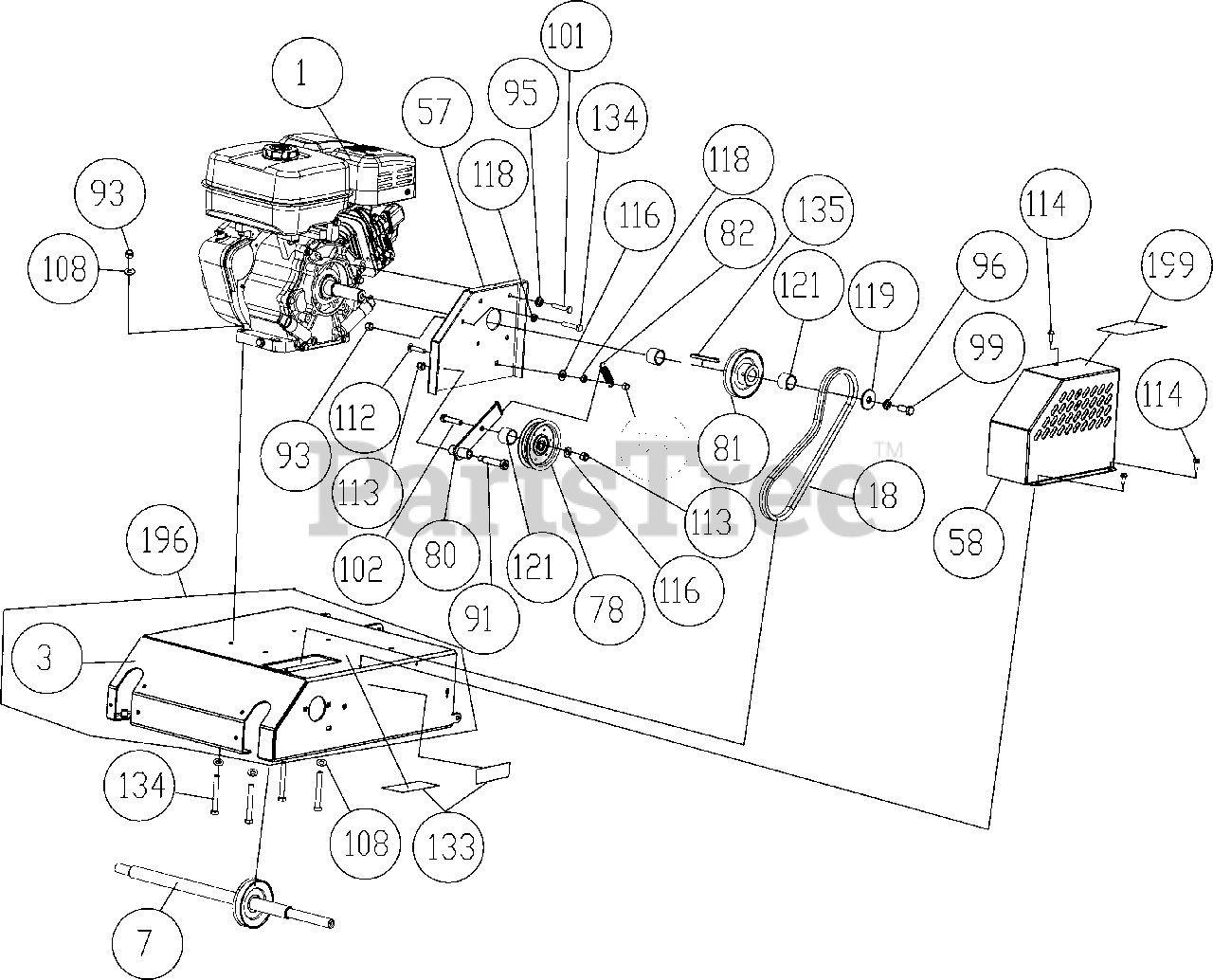

OS 900 SPS - Billy Goat Overseeder ENGINE Parts Diagram

Overseeder

ENGINE Parts Diagram

  • Title
1

Billy Goat 351299

ENGINE SUBARU 9HP

$

$

Not available

3

Billy Goat 351100

ENGINE BASE WA

$

$

Not available

7

Billy Goat 351107

JACKSHAFT WA

$

$

Not available

18

Billy Goat 351211

BELT - #8954-0298

$48.99

$

In Stock, only 1 left!

0

57

Billy Goat 351203

BRACKET GUARD BELT UPPER

$39.99

$

Usually ships in 2-11 days

0

58

Billy Goat 351116

GUARD BELT UPPER OS900SP

$69.99

$

Usually ships in 2-11 days

0

78

Billy Goat 500113

PULLEY IDLER 4" OD X 3/8 BORE

$34.99

$

Usually ships in 2-11 days

0

80

Billy Goat 351113

ARM IDLER WA UPPER

$38.99

$

Usually ships in 2-11 days

0

81

Billy Goat 351296

PULLEY 3.50" OD X 1.00" BORE
(Superseded to 351289)

$92.99

$

Usually ships in 2-11 days

0

82

Billy Goat 351275

SPRING IDLER UPPER

$11.99

$

In Stock, only 3 left!

0

91

Billy Goat 520031

BOLT SHOULDER 1/2" X 2"

$6.99

$

In Stock, only 1 left!

0

93

Billy Goat 8160002

NUT LOCK 5/16"-18

$0.99

$

In Stock, only 4 left!

0

95

Billy Goat 8177011

WASHER SPLIT LOCK

$0.99

$

In Stock, Qty 9

0

96

Billy Goat 8177013

WASHER LOCK 7/16' S/T MED

$0.99

$

In Stock, Qty 9

0

99

Billy Goat 510213

SCREWCAP 7/16"-20 X 1" HCS GR. 8 W/PATCH

$8.99

$

Usually ships in 2-11 days

0

101

Billy Goat 400164

SCREWCAP 5/16"-24 X 1" GR 8 W/PATCH

$

$

Not available

102

Billy Goat 8041053

SCREWCAP 3/8"-16 X 1 3/4" HCS ZP

$1.49

$

Usually ships in 2-11 days

0

108

Billy Goat 8171003

WASHER 5/16 FLAT

$0.99

$

In Stock, Qty 10

0

112

Billy Goat 8024042

BOLT CARRIAGE 5/16"-18 X 1 1/2" ZP

$0.99

$

Usually ships in 2-11 days

0

113

Billy Goat 8160003

LOCK NUT 3/8-16

$0.99

$

In Stock, only 1 left!

0

114

Billy Goat 890359

SCREW SELF TAP 1/4"-20 X 5/8" HWH TYPE F

$1.49

$

Usually ships in 2-11 days

0

116

Billy Goat 8172009

WASHER 3/8" SAE

$1.49

$

In Stock, Qty 5

0

118

Billy Goat 350346

NUT FLANGE 5/16-18 ZP

$0.99

$

Usually ships in 2-11 days

0

119

Billy Goat 850443

PLATE IMPELLER WASHER PB110

$1.99

$

In Stock, only 1 left!

0

121

Billy Goat 351413

SPACER 1.25 OD X 1.010 ID X .938 THK
(Superseded to 351289)

$92.99

$

Usually ships in 2-11 days

0

133

Billy Goat 900327

LABEL DANGER

$3.99

$

In Stock, only 3 left!

0

134

Billy Goat 8041031

SCREWCAP 5/16"-18 X 1 3/4" HCS ZP

$0.99

$

In Stock, only 3 left!

0

135

Billy Goat 9201113

KEY SQ 1/4" X 1"

$2.99

$

Usually ships in 2-11 days

0

196

Billy Goat 351608

ENGINE BASE WA OS900SP W/LABELS

$

$

Currently unavailable

199

Billy Goat 520116

LABEL MADE IN U.S.A.

$

$

Not available
