OS 82 (56A-820-195) - MTD Pro Overseeder General Assembly I Parts Diagram

Pro Overseeder

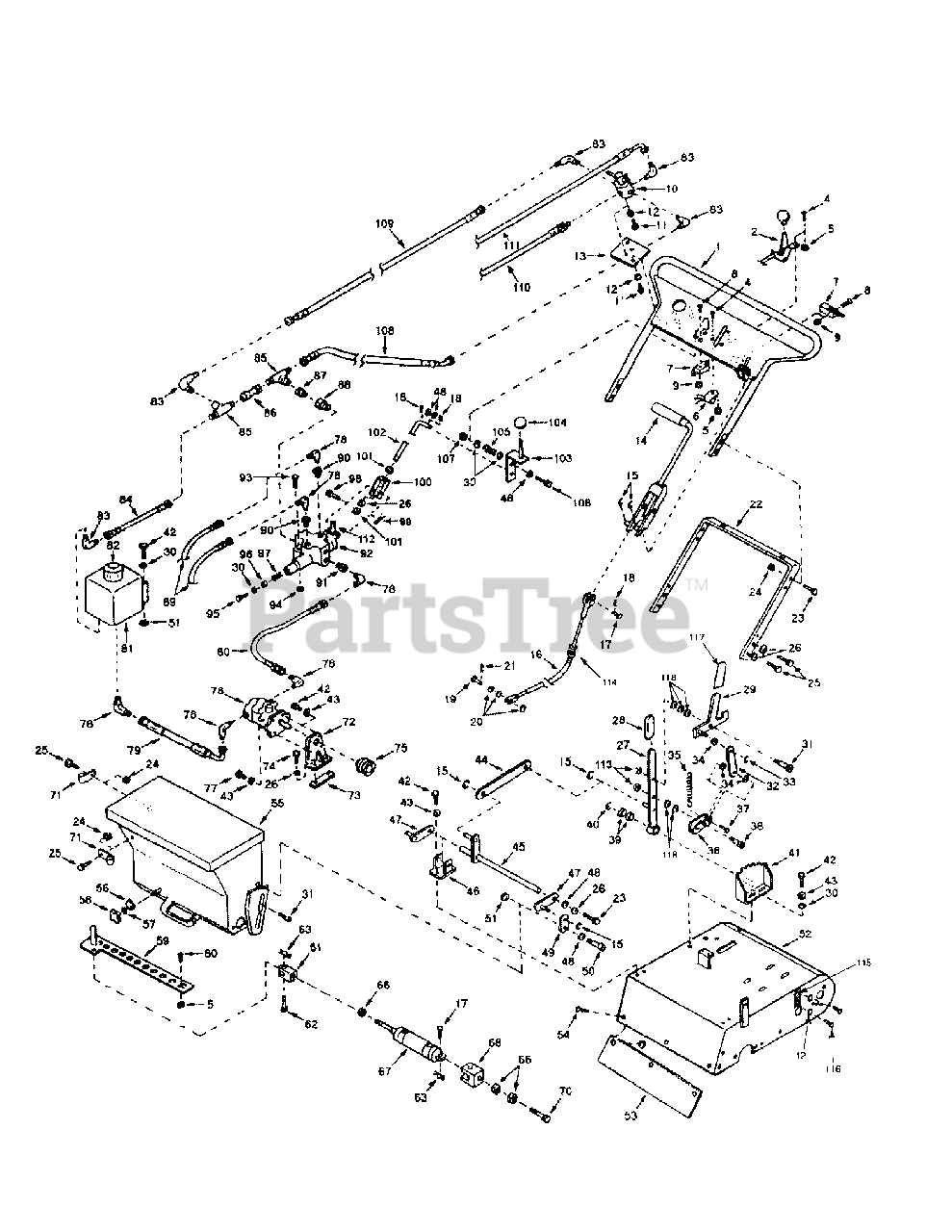

General Assembly I Parts Diagram

  • Title

1

MTD 01002355

Upper Handle

$

$

Not available

2

MTD 00012149

Throttle

Note: NLA

$

$

Not available

4

MTD 00017778

Mach. Screw, #10-32 x 1/2 Phil. Rd. Hd.

$4.99

$

In Stock, only 2 left!

0

5

MTD 00014608

Hex Nut, #10-32 Nylock
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

6

MTD 00030585

Sensor, Volt, Module

$

$

Not available

7

MTD 01005448

Safety Switch

$

$

Not available

8

MTD 00014622

Mach. Screw, #5-40 x 3/4 Rd. Hd

$

$

Not available

9

MTD 00014623

Hex Nut, #5-40

$

$

Not available

10

MTD 00032035

Selector Valve

$

$

Not available

11

MTD 710-3013

Cap Screw, 1/4-20 x 1/2

$4.99

$

In Stock, Qty 11

0

12

MTD 936-0329

Lock Washer, 1/4

$4.49

$

In Stock, Qty 11

0

13

MTD 01002325

Mounting Plate, Valve
(Superseded to 01005907)

$

$

Not available

14

MTD 01002349

Handle, Blade Clutch

Note: NLA

$

$

Not available

14

MTD 00017684

Grip, Blade Clutch Handle

$

$

Not available

15

MTD 00019795

E-Ring

$

$

Not available

16

MTD 00036730

Control Cable, Blade Clutch
(Superseded to 00036730P)

$223.99

$

Usually ships in 3-6 days

0

17

MTD 00032153

Clevis Pin, 5/16 x 1-5/8

$

$

Not available

18

MTD 914-0474

Cotter Pin, 1/8 x 3/4
(Superseded to 714-0474)

$

$

Not available

19

MTD 00014630

Clevis Pin, 3/16 x 3/4

$

$

Not available

20

MTD 00016771

Flat Washer, 3/16

$

$

Not available

21

MTD 00012205

Cotter Pin, 1/16 x 1/2

Note: NLA

$

$

Not available

22

MTD 01002335

Lower Handle

$

$

Not available

23

MTD 00012171

Cap Screw, 3/8-16 x 1 Hex Hd

$3.49

$

Usually ships in 3-6 days

0

24

MTD 712-04065

Hex Nut, 3/8-16 Nylock

$3.99

$

In Stock, Qty 20+

0

25

MTD 710-3119

Cap Screw, 3/8-16 x 3/4 Hex Hd

$6.99

$

In Stock, only 1 left!

0

26

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

27

MTD 00083477

Handle, Hopper Lift

$

$

Not available

28

MTD 00013595

Grip,1/4 x 1 x 4

$9.99

$

Usually ships in 3-6 days

0

29

MTD 00082159

Pivot, Hopper Lift

$

$

Not available

30

MTD 00011075

Flat Washer, 5/16 USS

$4.49

$

Usually ships in 3-6 days

0

31

MTD 00013733

Shoulder Bolt, 3/8 x 3/8 Soc. Hd

$

$

Not available

32

MTD 00082292

Short Link

$

$

Not available

33

MTD 00010171

E-Ring
(Superseded to 726-05073)

$4.99

$

Usually ships in 3-6 days

0

34

MTD 00018628

Flat Washer, 1/4 Nylon

$3.99

$

Usually ships in 3-6 days

0

35

MTD 00030020

Tension Spring

$13.99

$

Usually ships in 3-6 days

0

36

MTD 00084102

Latch

$

$

Not available

37

MTD 00012609

Clevis Pin, 1/4 x 3/4

$

$

Not available

38

MTD 00031885

Shoulder Bolt, 3/8 x 5/8 Soc. Hd

$5.49

$

Usually ships in 3-6 days

0

39

MTD 741-04333

Bushing

$10.99

$

Usually ships in 3-6 days

0

40

MTD 00021961

E-Ring

$11.99

$

Usually ships in 3-6 days

0

41

MTD 01002351

Bracket, Hopper Lift

$

$

Not available

42

MTD 00012179

Cap Screw, 5/16-18 x 3/4 Hex Hd

$3.49

$

Usually ships in 3-6 days

0

43

MTD 00012168

Lock Washer, 5/16

$

$

Not available

44

MTD 00082300

Long Link

Note: NLA

$

$

Not available

45

MTD 01002359

Rod, Hopper Lift

$

$

Not available

46

MTD 00082743

Support, Hopper Lift

$

$

Not available

47

MTD 00082622

Arm, Hopper Lift

Note: NLA

$

$

Not available

48

MTD 00012158

Flat Washer, 3/8 SAE

$4.49

$

In Stock, Qty 9

0

49

MTD 00083661

Link, Hopper Lift

$

$

Not available

50

MTD 00012160

Shoulder Bolt, 3/8 x 1/2 Soc. Hd

$

$

Not available

51

MTD 00012165

Hex Nut, 5/16-18 Nylock

$4.99

$

In Stock, only 1 left!

0

52

MTD 01002372

Power Deck

$

$

Not available

53

MTD 00021822

Brush Guard

$59.99

$

Usually ships in 3-6 days

0

54

MTD 00017732

Rivet w/Washer

$

$

Not available

55

MTD 01002301

Hopper w/Cover

$

$

Not available

56

MTD 00021826

Dial, Seed Flow Adjustment

Note: NLA

$

$

Not available

57

MTD 00016044

Flat Washer, 1/4

$

$

Not available

58

MTD 00060043

Knob

$13.99

$

Usually ships in 3-6 days

0

59

MTD 01002364

Metering Bar

$

$

Not available

60

MTD 00030906

Mach. Screw, #1 0-32 x 5/8 Phil. Rd. Hd.

$6.99

$

Usually ships in 3-6 days

0

61

MTD 00032061

Clevis, Cylinder

$

$

Not available

62

MTD 00012191

Clevis Pin, 5/16 x 1

$

$

Not available

63

MTD 00021956

Hairpin, 3/8 - 1/2
(Superseded to 914-04023)

$4.49

$

In Stock, Qty 20+

0

65

MTD 00014624

Splice, Clip

$

$

Not available

66

MTD 00011453

Jam, Hex Nut, 3/8-24

$3.99

$

Usually ships in 3-6 days

0

67

MTD 00032060

Cylinder, Seed Flow

$

$

Not available

68

MTD 00082435

Yoke, Cylinder Mount

$

$

Not available

70

MTD 00013575

Cap Screw, 3/8-24 x 1-1/4 Hex Hd

$

$

Not available

71

MTD 00061502

Support Clamp, 3/4

$

$

Not available

72

MTD 00021798

Pump Mount

Note: NLA

$

$

Not available

73

MTD 00021788

Nut Bar, Pump

$

$

Not available

74

MTD 00011444

Cap Screw, 3/8-16 x 1-1/4 Hex Hd

$4.49

$

In Stock, Qty 9

0

75

MTD 00014694

Pulley, Pump Drive

$

$

Not available

MTD 00014717

Pulley Bushing

$

$

Not available

76

MTD 00021796

Hydraulic Pump

$760.99

$

Usually ships in 3-6 days

0

77

MTD 00013092

Cap Screw, 5/16-18 x 1 Hex Hd
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 5

0

78

MTD 00009758

Hydraulic Fitting, 90° Elbow

$

$

Not available

79

MTD 00021836

Hydraulic Hose, Tank to Pump

$

$

Not available

80

MTD 00030018

Hydraulic Hose, Pump to Valve

$

$

Not available

81

MTD 01002361

Tank, Hydraulic Oil

Note: NLA

$

$

Not available

82

MTD 00030261

Fill Cap, Hydraulic Oil Tank

$36.99

$

Usually ships in 3-6 days

0

83

MTD 00012474

Hydraulic Fitting, 90° Elbow

$

$

Not available

84

MTD 00021725

Hydraulic Hose, Return to Tank

$

$

Not available

85

MTD 00032087

Hydraulic Fitting, Tee

$

$

Not available

86

MTD 00032036

Hydraulic Valve, Pressure Relief

$

$

Not available

87

MTD 00032119

Hydraulic Fitting, Reducer

$

$

Not available

88

MTD 00007615

Hydraulic Fitting, Reducer

$

$

Not available

89

MTD 00030017

Hydraulic Hose, Valve to Hyd. Motor

$

$

Not available

90

MTD 00015971

Hydraulic Fitting, Reducer

Note: NLA

$

$

Not available

91

MTD 00007615

Hydraulic Fitting, Reducer

$

$

Not available

92

MTD 00021814P

Hydraulic Valve

$

$

Not available

93

MTD 00031672

Cap Screw, 1/4-20 x 1-1/2 Soc. Hd

$3.49

$

Usually ships in 3-6 days

0

94

MTD 00012152

Hex Nut, 1/4-20 Nylock

$4.49

$

In Stock, only 1 left!

0

95

MTD 00013198

Cap Screw, 5/16-18 x 2 Hex Hd
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

96

MTD 00030019

Spacer

$

$

Not available

97

MTD 00017565

Spring

$

$

Not available

98

MTD 00017568

Clevis Pin, 3/16 x 1-1/4

$

$

Not available

99

MTD 00021957

Hairpin, 5/16 - 3/8
(Superseded to 00021956)

$4.49

$

In Stock, Qty 20+

0

100

MTD 00021837

Shift Clevis

$

$

Not available

101

MTD 00012156

Hex Nut, 3/8-24

$

$

Not available

102

MTD 00033601

Rod, Shift Lever

$31.99

$

Usually ships in 3-6 days

0

103

MTD 00033746

Lever, Direction Control

$73.99

$

Usually ships in 3-6 days

0

104

MTD 00012118

Black Knob

$

$

Not available

105

MTD 00021797

Compression Spring

$9.49

$

Usually ships in 3-6 days

0

106

MTD 00012172

Cap Screw, 3/8-16 x 2 Hex Hd
(Superseded to 710-3096)

$7.99

$

Usually ships in 3-6 days

0

107

MTD 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

108

MTD 00021721

Hydraulic Hose, Valve to Valve

$

$

Not available

109

MTD 00021724

Hydraulic Hose, Valve to Return

$

$

Not available

110

MTD 00021722

Hydraulic Hose, Cylinder Open

$116.99

$

Usually ships in 3-6 days

0

111

MTD 00021723

Hydraulic Hose, Cylinder Close

$

$

Not available

112

MTD 00021835

Valve Handle

$

$

Not available

113

MTD 00014561

Acorn Nut, 5/16-18

$

$

Not available

114

MTD 00011273

Split Nut

Note: NLA

$

$

Not available

115

MTD 00035104

Anchor, Cable Assembly

$

$

Not available

116

MTD 00013131

Hex, Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

117

MTD 00030899

Grip, 3.5 Yellow, Operator

$

$

Not available

118

MTD 00005530

Flat Washer, Nylon, 3/8"
(Superseded to 736-04070)

$

$

Not available
