OHV125-203039B - Tecumseh Engine Engine Parts List #2 Parts Diagram

Engine

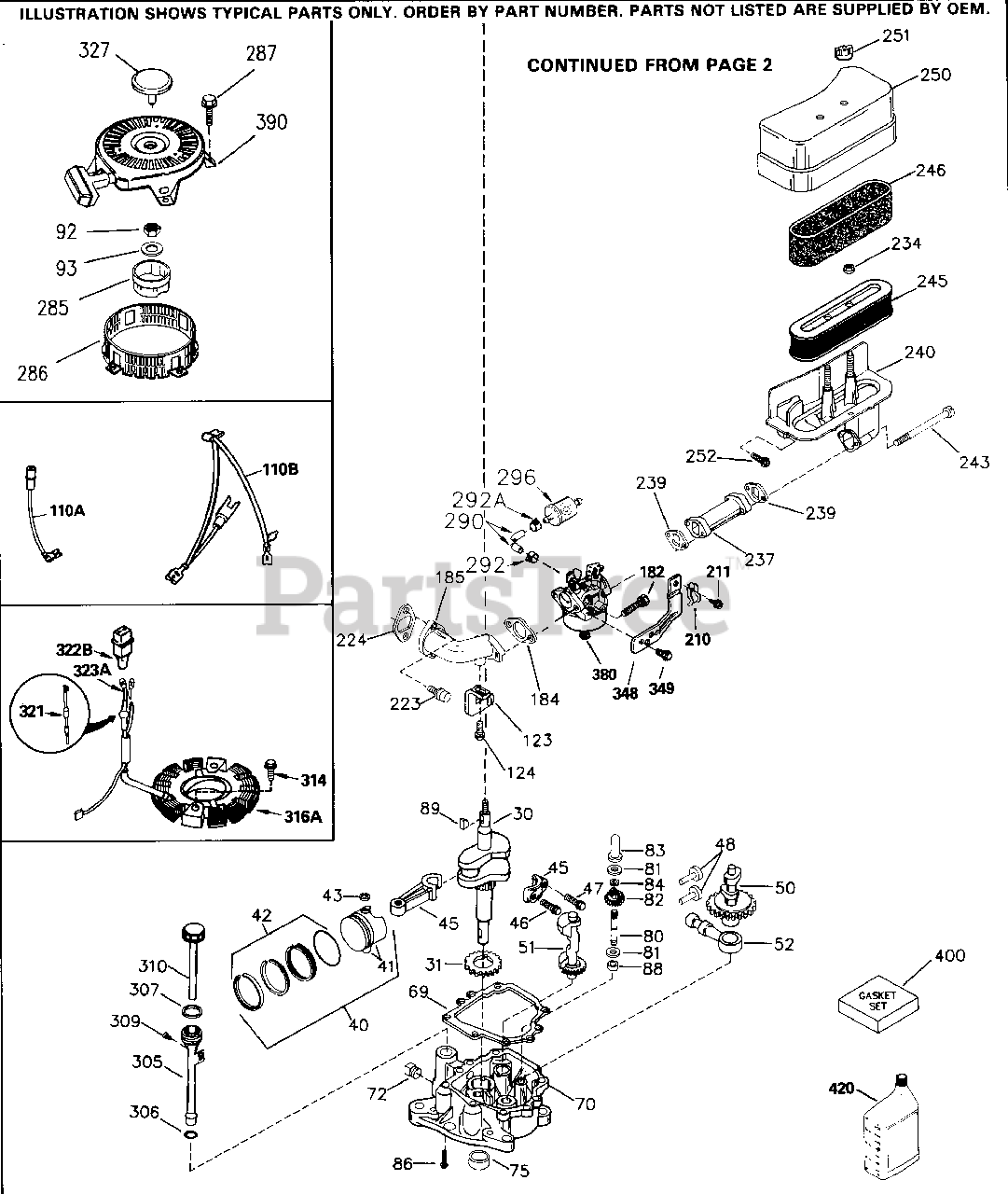

Engine Parts List #2 Parts Diagram

  • Title

28

Tecumseh 30322

Lock Nut, 8-32

$1.99

$

Usually ships in 3-12 days

0

30

Tecumseh 35336B

Crankshaft

$

$

Not available

31

Tecumseh 35327

Counterbalance Gear

$18.99

$

Usually ships in 3-12 days

0

40

Tecumseh 35776

Piston, Pin & Ring Set (Std.)
(Superseded to 35776B)

$54.99

$

In Stock, only 1 left!

0

40

Tecumseh 35777

Piston, Pin & Ring Set (.010" OS)
(Superseded to 35777A)

$

$

Not available

40

Tecumseh 35778

Piston, Pin & Ring Set (.020" OS)
(Superseded to 35778A)

$158.99

$

Usually ships in 3-12 days

0

41

Tecumseh 35773

Piston & Pin Ass'y. (Std.) (Incl. 43)
(Superseded to 35776B)

$54.99

$

In Stock, only 1 left!

0

41

Tecumseh 35774

Piston & Pin Ass'y. (.010" OS) Incl. 43
(Superseded to 35777A)

$

$

Not available

41

Tecumseh 35775

Piston & Pin Ass'y. (.020" OS) Incl. 43
(Superseded to 35778A)

$158.99

$

Usually ships in 3-12 days

0

42

Tecumseh 35779

Ring Set (Std.) (3-5/16")

$44.99

$

In Stock, only 1 left!

0

42

Tecumseh 35780

Ring Set (.010" OS)

$

$

Not available

42

Tecumseh 35781

Ring Set (.020" OS)

$

$

Not available

43

Tecumseh 35772

Piston Pin Retaining Ring

$1.99

$

In Stock, only 4 left!

0

45

Tecumseh 35330A

Connecting Rod Ass'y. (Incl. 46 & 47)
(Superseded to 36898A)

$52.99

$

In Stock, only 1 left!

0

46

Tecumseh 650908

Connecting Rod Bolt
(Superseded to 651063)

$1.99

$

In Stock, only 3 left!

0

47

Tecumseh 650882

Connecting Rod Bolt
(Superseded to 651033A)

$

$

Not available

48

Tecumseh 35313

Valve Lifter
(Superseded to 35313A)

$

$

Not available

50

Tecumseh 35939

Camshaft (MCR)

$84.99

$

Usually ships in 3-12 days

0

51

Tecumseh 35315A

Counterbalance Weight

$95.99

$

Usually ships in 3-12 days

0

52

Tecumseh 31356

Oil Pump Ass'y.

$12.99

$

Usually ships in 3-12 days

0

69

Tecumseh 35317

* Mounting Flange Gasket

$4.99

$

In Stock, only 1 left!

0

70

Tecumseh 35711A

Mounting Flange (Incl. 72, 72A, 75 & 80)

$

$

Not available

72

Tecumseh 31927

Oil Drain Plug

$1.99

$

Usually ships in 3-12 days

0

75

Tecumseh 35319

Oil Seal

$4.99

$

In Stock, only 2 left!

0

80

Tecumseh 35712

Governor Shaft

$3.99

$

Usually ships in 3-12 days

0

81

Tecumseh 35479

WASHER
(Superseded to 651080)

$1.99

$

In Stock, Qty 8

0

82

Tecumseh 35321

Governor Gear Assembly

$9.49

$

In Stock, only 1 left!

0

83

Tecumseh 35322

Governor Spool

$1.99

$

In Stock, Qty 5

0

84

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650833

Screw, 1/4-20 x 1-3/16"

$1.99

$

Usually ships in 3-12 days

0

88

Tecumseh 31707A

Spacer

$1.99

$

In Stock, only 2 left!

0

89

Tecumseh 32589

Flywheel Key

$1.49

$

In Stock, Qty 6

0

92

Tecumseh 650880

Lock Washer

$1.99

$

In Stock, only 3 left!

0

93

Tecumseh 650881

Flywheel Nut

$1.99

$

Usually ships in 3-12 days

0

123

Tecumseh 35288

Intake Pipe Brace

$1.99

$

Usually ships in 3-12 days

0

124

Tecumseh 650738

Screw, 1/4-20 x 5/8"

$3.99

$

In Stock, only 1 left!

0

182

Tecumseh 650517

Screw, 1/4-20 x 27/32"

$1.99

$

In Stock, only 1 left!

0

184

Tecumseh 33263

* Carburetor To Intake Pipe Gasket

$1.49

$

In Stock, Qty 20+

0

185

Tecumseh 35955

Intake Pipe

$48.99

$

Usually ships in 3-12 days

0

210

Tecumseh 27793

Conduit Clip

$1.99

$

In Stock, only 2 left!

0

211

Tecumseh 28942

Screw, 10-32 x 3/8"

$1.49

$

In Stock, only 4 left!

0

212A

Tecumseh 36288

Bushing

$1.99

$

In Stock, only 2 left!

0

223

Tecumseh 650971

Screw, Torx T-30, 5/16-18 x 7/8"

$1.99

$

In Stock, only 4 left!

0

224

Tecumseh 35958

* Intake Pipe Gasket

$2.49

$

In Stock, only 3 left!

0

234

Tecumseh 650825

Nut & Lock Washer, 1/4-20

$1.99

$

In Stock, only 2 left!

0

237

Tecumseh 35286

Air Filter Adapter

$

$

Not available

238

Tecumseh 650875

Screw, 10-32 x 5-1/4"

$3.99

$

In Stock, only 3 left!

0

239

Tecumseh 33629

* Air Cleaner Gasket

$1.99

$

In Stock, Qty 19

0

240

Tecumseh 35960

Air Cleaner Body (Incl. 239)

$42.99

$

In Stock, only 1 left!

0

245A

Tecumseh 35404

Pre-Cleaner Air Filter also available in Packaged Part #740015B

$3.99

$

Usually ships in 3-12 days

0

245

Tecumseh 35403

Air Filter (Incl. 234) also available in Packaged Part #740015B

$13.99

$

Usually ships in 3-12 days

0

250

Tecumseh 35961

Air Cleaner Cover

$

$

Not available

251

Tecumseh 650886

Wing Nut, 1/4-20

$2.49

$

In Stock, only 3 left!

0

286

Tecumseh 35962

Cup & Screen

$19.99

$

Usually ships in 3-12 days

0

290

Tecumseh 30705

Fuel Line

$16.99

$

In Stock, Qty 8

0

292

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

296

Tecumseh 34279B

Fuel Filter (Incl. 292) also availabl e as Packaged Part #740003B

$13.99

$

In Stock, only 1 left!

0

305

Tecumseh 35574

Oil Fill Tube

$5.49

$

In Stock, only 1 left!

0

307

Tecumseh 35499

"O" Ring

$1.49

$

In Stock, only 3 left!

0

308

Tecumseh 33997

Fill Tube Clip

$1.99

$

Usually ships in 3-12 days

0

308A

Tecumseh 35437

Fill Tube Clip

$1.99

$

In Stock, only 1 left!

0

310

Tecumseh 35576

Dipstick

$7.49

$

In Stock, only 2 left!

0

314

Tecumseh 650873

Screw, 1/4-20 x 3/4"

$1.99

$

Usually ships in 3-12 days

0

315

Tecumseh 611104

Alternator Coil (3/5 Split) Incl. 321 , 322,323

$146.99

$

Usually ships in 3-12 days

0

321

Tecumseh 611161

Diode

$17.99

$

Usually ships in 3-12 days

0

337

Tecumseh 36407

Deflector

$3.99

$

Usually ships in 3-12 days

0

380

Tecumseh 632650

Carburetor (Incl. 184)
(Superseded to 632774)

$123.99

$

Usually ships in 3-12 days

0

394A

Tecumseh 650948

Washer

$

$

Not available

400

Tecumseh 35947

* Gasket Set (Incl. items marked PK in notes) Incl. part #'s 27896 (2), 332 63 (1), 33629 (2), 34265 (1), 35317 ( 1), 35762 (2), 35946 (1), 35352 (1), 35958 (1)

$24.99

$

Usually ships in 3-12 days

0

420

Tecumseh 730225

SAE 30 4-Cycle Engine Oil (Quart)
(Superseded to 730225A)

$8.99

$

In Stock, only 2 left!

0
