OF52 - Ferris 52" Mower Deck 52" Mower Deck - Complete Parts Diagram

52" Mower Deck

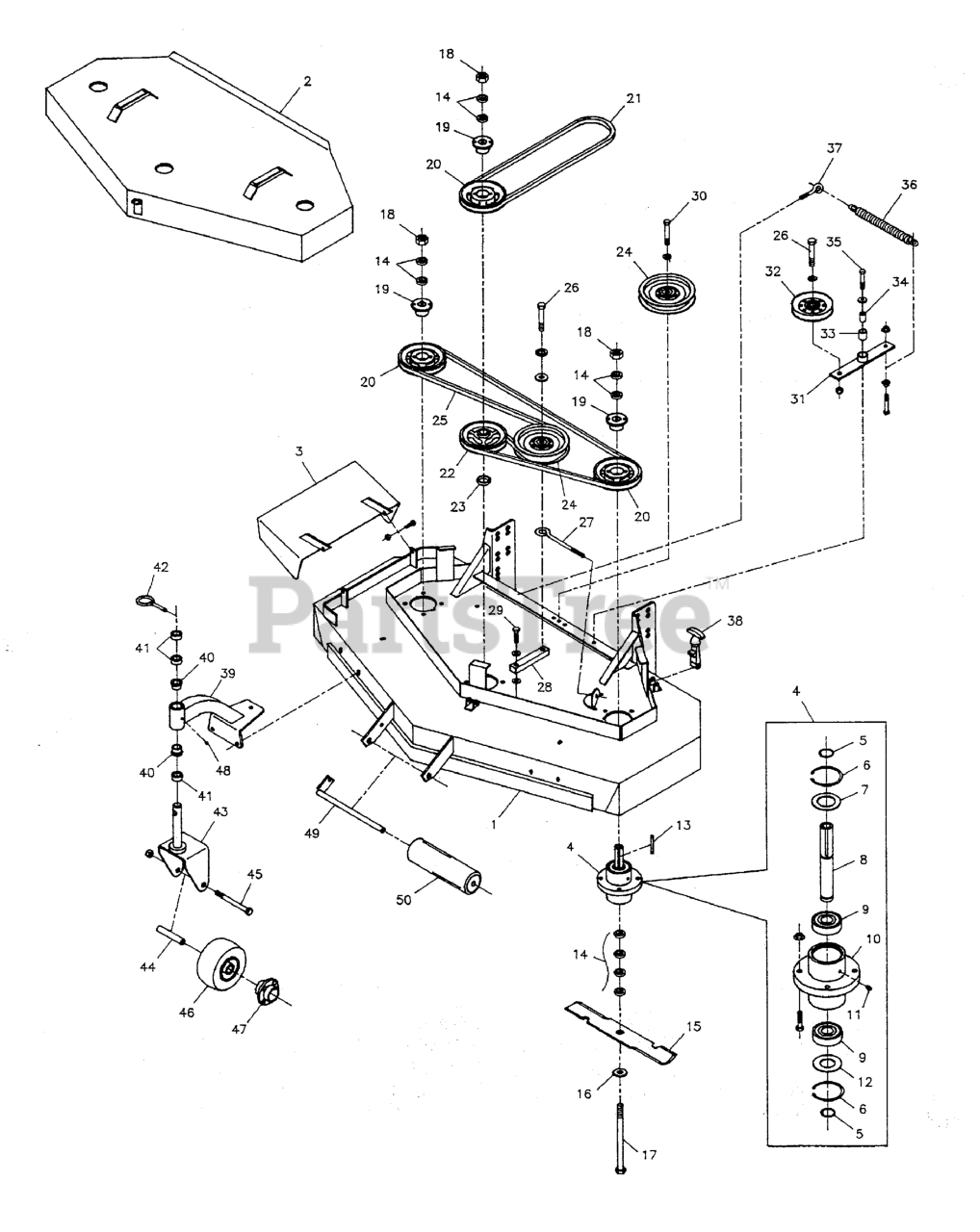

52" Mower Deck - Complete Parts Diagram

  • Title

1

Ferris 5600247

DECK SHELL W/DECALS, 52"

Note: (Includes safety decals)

$

$

Currently unavailable

2

Ferris 5030845B

52" GUARD

$

$

Currently unavailable

3

Ferris 5041668B

CHUTE, DISCHARGE WELDMENT

$131.99

$

Usually ships in 2-12 days

0

4

Ferris 5030301

SPINDLE ASSEMBLY, Complete
(Superseded to 5061033SM)

$269.99

$

Usually ships in 2-12 days

0

5

Ferris 5020864

SNAP RING, External

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5020866

SNAP RING, Internal
(Superseded to 5020866SM)

$5.99

$

In Stock, only 2 left!

0

7

Ferris 5041653

SPINDLE WASHER, Top

$10.99

$

Usually ships in 2-12 days

0

8

Ferris 5041480

SPINDLE SHAFT
(Superseded to 5041480SM)

$112.99

$

Usually ships in 2-12 days

0

9

Ferris 5020828

BEARING
(Superseded to 5020828SM)

$36.99

$

In Stock, only 2 left!

0

10

Ferris 5030293

SPINDLE HOUSING

$

$

Not available

11

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

12

Ferris 5041672

SPINDLE WASHER, Bottom

$15.99

$

Usually ships in 2-12 days

0

13

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

14

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$5.99

$

Usually ships in 2-12 days

0

15

Ferris 5021227

MOWER BLADE, 18"
(Superseded to 5021227ASM)

$25.99

$

In Stock, only 1 left!

0

16

Ferris 5025159

WASHER, 5/8" USS

$

$

Currently unavailable

17

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

18

Ferris 5025040

NUT, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

In Stock, Qty 6

0

19

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

In Stock, only 4 left!

0

20

Ferris 5020814

PULLEY, Spindle

Note: (H22's)

$82.99

$

Usually ships in 2-12 days

0

20

Ferris 5021492

PULLEY, Split Steel

Note: (H19's)

$75.99

$

Usually ships in 2-12 days

0

21

Ferris 5021298

BELT, Deck Drive

Note: (H22's)

$72.99

$

Usually ships in 2-12 days

0

21

Ferris 5021677

Deck Drive Belt

Note: (H19's)

$98.99

$

Usually ships in 2-12 days

0

22

Ferris 5041478

SPINDLE PULLEY

$106.99

$

Usually ships in 2-12 days

0

22

Ferris 5021492

PULLEY, Split Steel

Note: (H19's)

$75.99

$

Usually ships in 2-12 days

0

23

Ferris 5041484

SPACER, 1.00 X 1.25 X .25
(Superseded to 5041484FS)

$8.99

$

Usually ships in 2-12 days

0

24

Ferris 5021096

PULLEY, Backside Idler
(Superseded to 5021096SM)

$109.99

$

Usually ships in 2-12 days

0

25

Ferris 5021297

BELT, Blade Spindle
(Superseded to 5021297SM)

$80.99

$

Usually ships in 2-12 days

0

26

Ferris 5025018X18

BOLT, 1/2-20 X 2-1/4 GD5 CZ
(Superseded to 5025018X18SM)

$3.99

$

Usually ships in 2-12 days

0

27

Ferris 5021811

EYEBOLT, 3/8" x 8"
(Superseded to 5021811SM)

$8.49

$

In Stock, Qty 12

0

27

Ferris 5041671

J-BOLT

Note: (H19's, S/N: 612 & below)

$9.49

$

Usually ships in 2-12 days

0

28

Ferris 5044610B

ARM, Idler

$41.99

$

Usually ships in 2-12 days

0

28

Ferris 5041622

IDLER ARM

Note: (H19's, S/N: 612 & below)

$

$

Not available

29

Ferris 5025016X14

BOLT, 7/16-20 X 1-3/4" GD.5
(Superseded to 5025016X14YP)

$5.99

$

Usually ships in 2-12 days

0

30

Ferris 5025018X20

BOLT, 1/2-20 X 2-1/2" GD5 CZ
(Superseded to 5025018X20SM)

$6.99

$

In Stock, only 1 left!

0

31

Ferris 5042338B

IDLER ARM, Complete

$36.99

$

Usually ships in 2-12 days

0

32

Ferris 5021097

PULLEY, V-Idler
(Superseded to 5021097SM)

$40.99

$

In Stock, only 1 left!

0

33

Ferris 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

In Stock, only 1 left!

0

34

Ferris 5042134

SPACER, .32 x .75 x 1.06
(Superseded to 5042134SM)

$6.49

$

In Stock, only 1 left!

0

35

Ferris 5025011X14

BOLT, 5/16-18 x 1-3/4
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

36

Ferris 5021103

SPRING, Extension
(Superseded to 5021103SM)

$19.99

$

Usually ships in 2-12 days

0

37

EYEBOLT

$

$

Not available

38

Ferris 5020841X1

RUBBER LATCH
(Superseded to 5020841X1SM)

$23.99

$

Usually ships in 2-12 days

0

39

Ferris 5043887

CASTER MOUNT, Complete
(Superseded to 5043887FS)

$251.99

$

Usually ships in 2-12 days

0

40

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

41

Ferris 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.49

$

In Stock, only 4 left!

0

42

Ferris 5020655

PIN, Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 2 left!

0

43

Ferris 5041702B

YOKE, Caster

$253.99

$

Usually ships in 2-12 days

0

44

Ferris 5041657

AXLE, Caster Wheel
(Superseded to 5041657SM)

$13.99

$

Usually ships in 2-12 days

0

45

Ferris 5025017X44

BOLT, 1/2-13 x 5-1/2
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 3 left!

0

46

Ferris 5021181

WHEEL & TIRE ASSEMBLY, White, 9 x 3.5 x 4, Complete
(Superseded to 5021181SSM)

$100.99

$

In Stock, only 4 left!

0

47

Ferris 5021181X3

4 BOLT HUB W/ BEARING

$

$

Not available

47

Ferris 5021262

NLA - Hub Complete (Stamped T)

$

$

Currently unavailable

48

Ferris 5021729

GREASE FITTING

$

$

Currently unavailable

49

Ferris 5041655A

USE 5105755 - WELD, BRKT,ROLLER PIN,BLK
(Superseded to 5105755)

Note: SECURED W/ 5025013X8 & 5101414

$46.99

$

In Stock, only 2 left!

0

50

Ferris 5020785

ROLLER
(Superseded to 5020785SM)

$29.99

$

In Stock, Qty 20+

0
