OEM-290-260 - Troy-Bilt Sweep Cultivator Tiller Attachment General Assembly Parts Diagram

Sweep Cultivator Tiller Attachment

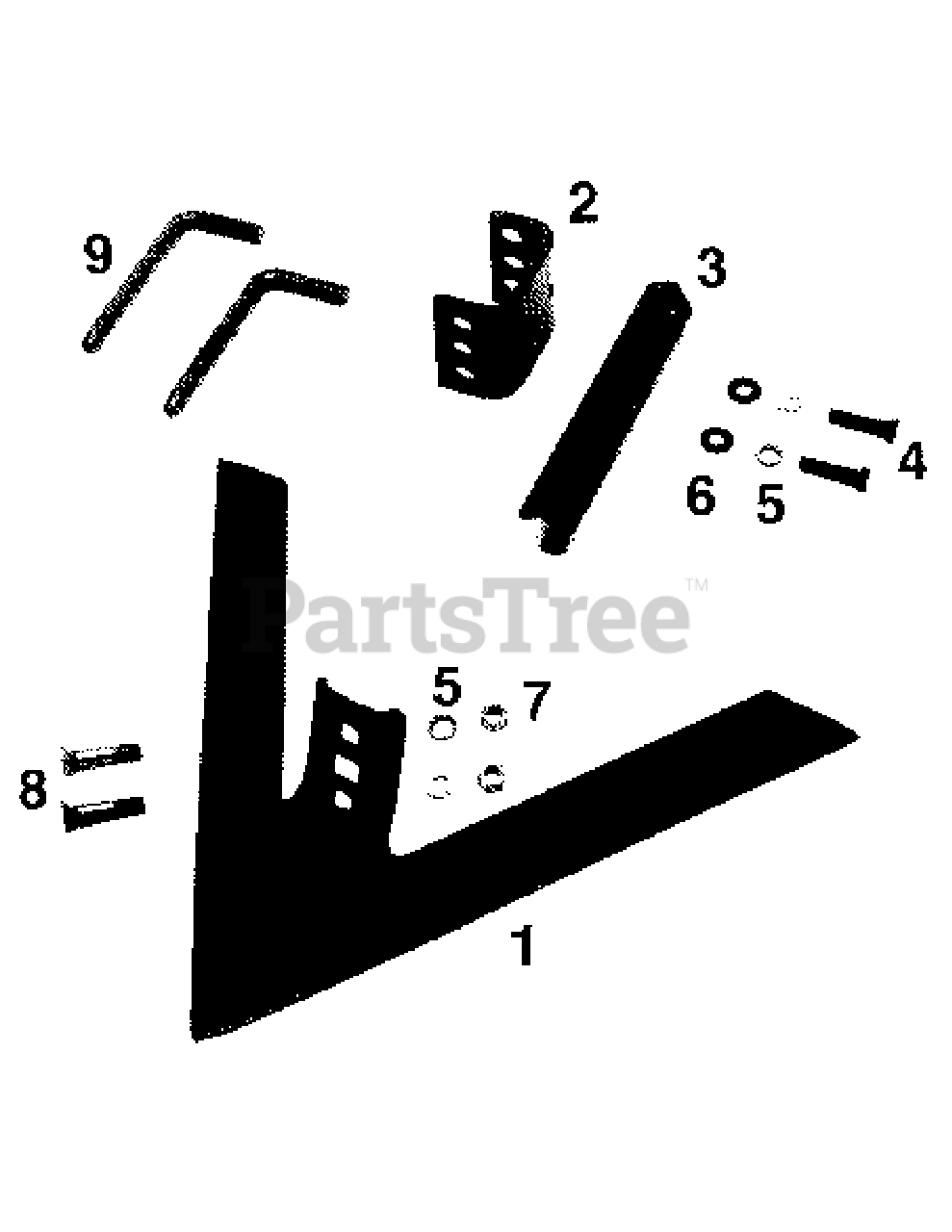

General Assembly Parts Diagram

  • Title
1

MTD GW-2276

Sweep with Flanged Stem

$

$

Not available

2

MTD GW-2285

C-shaped Mounting Bracket

$

$

Not available

3

MTD GW-2286

Channel Mounting Bracket

$

$

Not available

4

MTD 1751467

Hex Hd. Bolt, 7/16"-14 x 1-3/4"

$

$

Not available

5

Troy-Bilt 1100244

Lockwasher, 7/16"
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

6

MTD GW-9936

Flat Washer, 7/16"

$

$

Not available

7

Troy-Bilt 1186232

Hex Nut, 7/16"-14
(Superseded to 912-3019)

$6.99

$

Usually ships in 3-6 days

0

8

MTD GW-9577

Plow Bolt, 7/16" -14 x 2"

$

$

Not available

9

MTD GW-9363

Pin, 5/8" dia. x 5-5/8"

$

$

Not available
