OEM-290-258 - Troy-Bilt PTO Log Splitter Attachment Hydraulics Parts Diagram

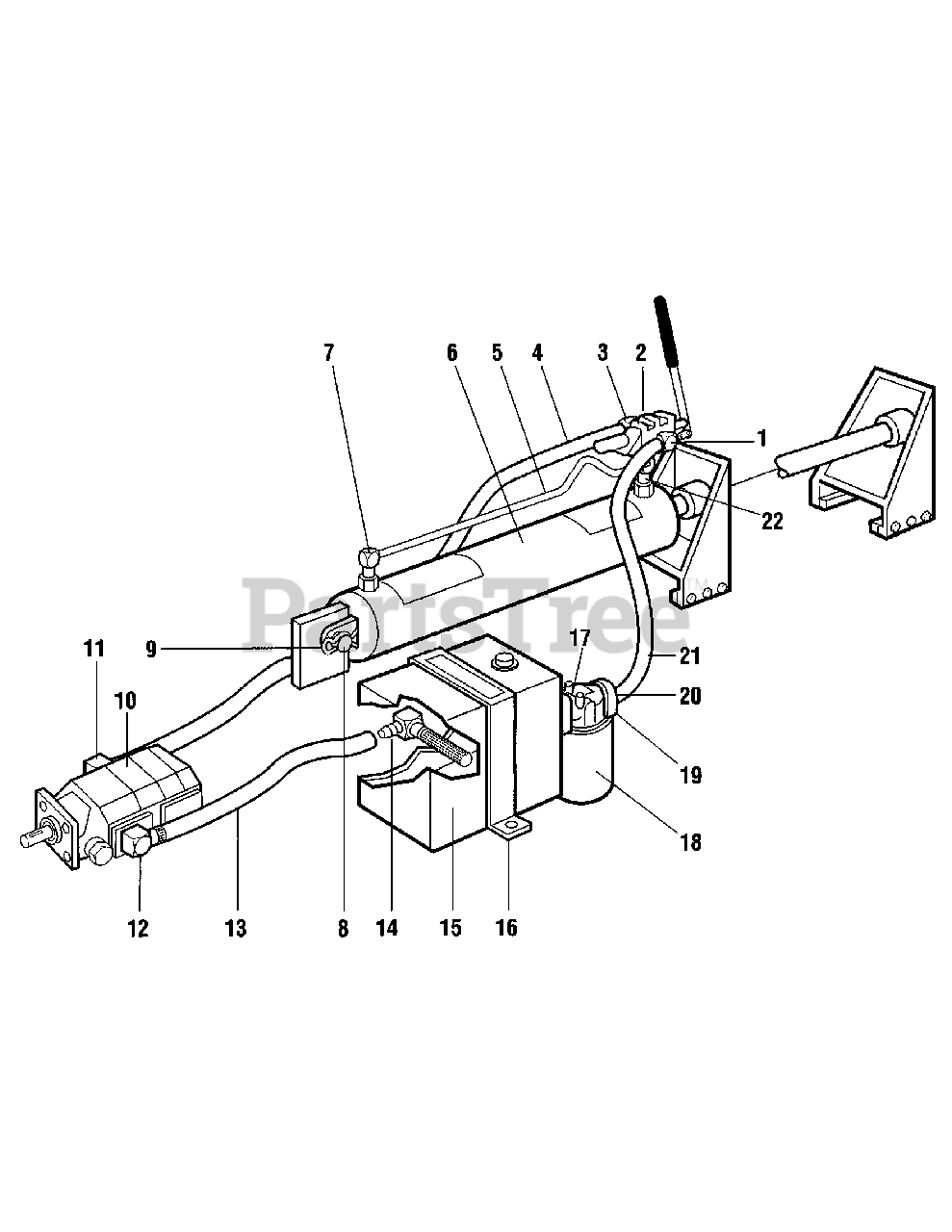

PTO Log Splitter Attachment

Hydraulics Parts Diagram

  • Title

1

MTD 1915124

Fitting 90 deg. hose barb

$

$

Not available

2

MTD 1915151

Valve

$

$

Not available

3

MTD 1915127

Fitting 90 deg. Male

$

$

Not available

4

MTD 1915157

HP Hose

$

$

Not available

5

MTD 1915153

Formed Tubing 21-1/16"

$

$

Not available

6

MTD 1915150

Cyliner 3-1/2" TMC

$

$

Not available

7

MTD 1915149

Fitting 90 deg. male

$

$

Not available

8

MTD 1915163

Clevis Pin for cylinder

$

$

Not available

9

MTD 1915142

Clevis Pin Clip for cyl.

$

$

Not available

10

MTD 1915144

Barnes 11 GPM Pump

$

$

Not available

11

MTD 1915126

Fitting 90 deg. Female

$

$

Not available

12

MTD 1915123

Fitting 90 deg. Beaded hose barb

$

$

Not available

13

MTD 1915158

LP Hose 3/4" ID x 25" (connects pump to tank)

$

$

Not available

14

Troy-Bilt 1915125

Strainer & hose barb

$

$

Currently unavailable

15

MTD 1915161

Plastic Tank

$

$

Not available

16

MTD 1915166

Tank Strap

$

$

Not available

17

MTD 1915130

Pipe blk Nipple 3/4 x 2

$

$

Not available

18

Troy-Bilt 1915133

Filter Element

$

$

Currently unavailable

19

MTD 1915132

Filter Housing

$

$

Not available

20

MTD 1915129

Fitting beaded hose barb

$

$

Not available

21

MTD 1915159

LP Hose 3/4" ID x 17"

$

$

Not available

22

MTD 1915131

Straight Male Connector

$

$

Not available
