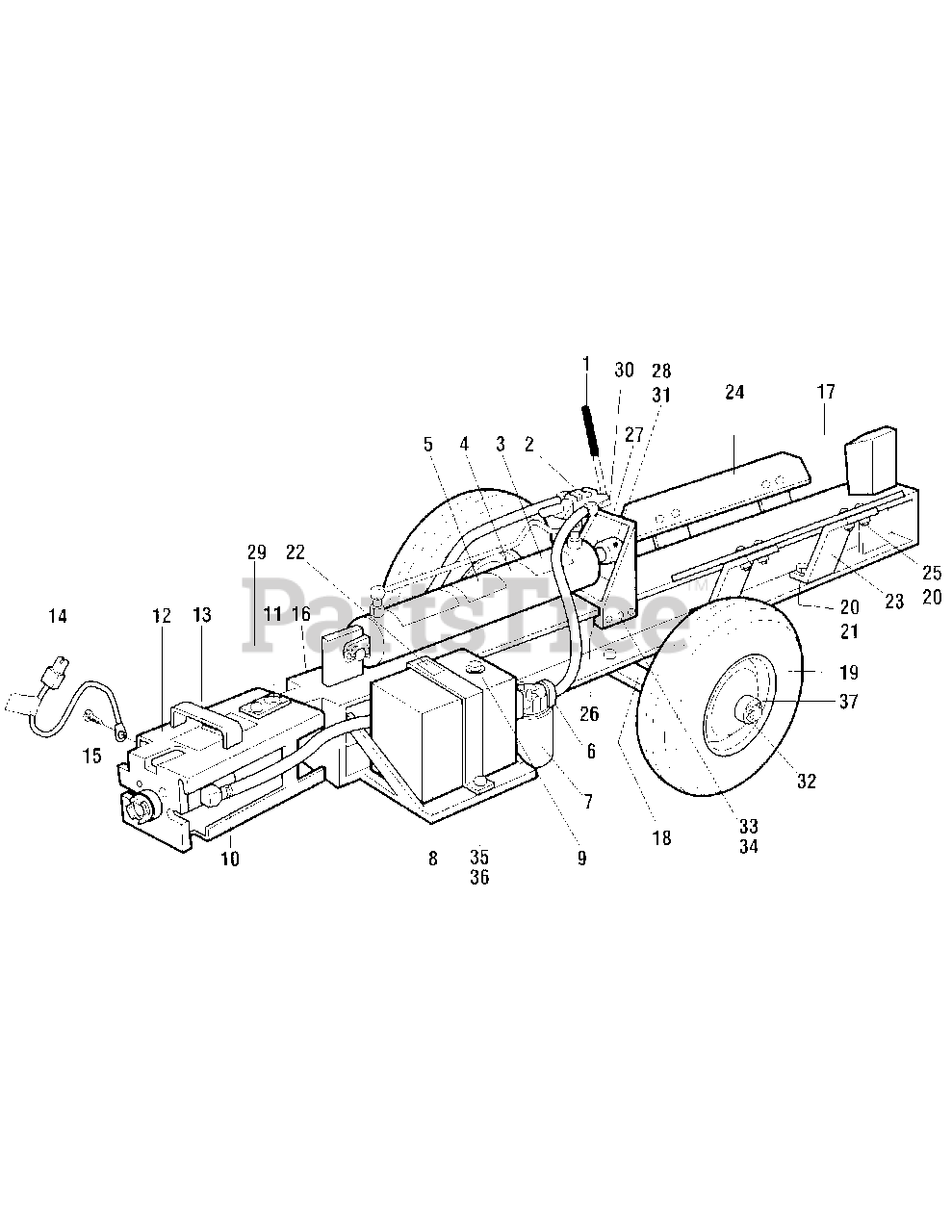

OEM-290-258 - Troy-Bilt PTO Log Splitter Attachment General Assembly Parts Diagram

PTO Log Splitter Attachment

General Assembly Parts Diagram

  • Title
1

Troy-Bilt 1915152

Valve Handle

$

$

Currently unavailable

2

MTD 1915151

Valve

$

$

Not available

3

Troy-Bilt 1915148

Label In/Out Valve

$

$

Currently unavailable

4

MTD 1915150

Cylinder 3-1/2" TMC

$

$

Not available

5

Troy-Bilt 1915147

Decal Caution 5"x 10"

$

$

Currently unavailable

6

MTD 1915132

Filter Housing

$

$

Not available

7

Troy-Bilt 1915133

Filter Element

$

$

Currently unavailable

8

MTD 1915161

Plastic Tank

$

$

Not available

9

Troy-Bilt 1915128

Plastic Plug 3/4" P68B

$

$

Currently unavailable

10

Troy-Bilt 1915155

Hose Clamp # 12
(Superseded to 726-0132)

$15.99

$

Usually ships in 3-6 days

0

11

MTD 1915165

Hitch Pivot Pin

$

$

Not available

12

MTD 1915169

Swivel Hitch Weldment

$

$

Not available

13

Troy-Bilt 1915146

Decal Caution

$

$

Currently unavailable

14

MTD 1915189

Forward Interlock Wire

$

$

Not available

15

Troy-Bilt 1915137

Screw # 10-24 x 1"

$

$

Currently unavailable

16

Troy-Bilt 1915156

Serial Number Label

$

$

Currently unavailable

17

MTD 1915167

Rail Weldment

$

$

Not available

18

MTD 1915168

Axle Weldment

$

$

Not available

19

MTD 1915162

Tire Assembly 480/400 x 8

$

$

Not available

20

MTD 1915136

Lock Nut 3/8" - 16

$

$

Not available

21

Troy-Bilt 1915135

HH Bolt 3/8" - 16 x 1-1/4"

$

$

Currently unavailable

22

Troy-Bilt 1915179

Decal/Hydraulic Fluid

$

$

Currently unavailable

23

MTD 1915178

Log Cradle Mount Brkt

$

$

Not available

24

Troy-Bilt 1915177

Log Cradle Bar

$

$

Currently unavailable

25

Troy-Bilt 1915134

Carriage Bolt 3/8" -16s 1-1/4"
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

26

MTD 1915164

Slide Angle 1.5 x 1.5x5

$

$

Not available

27

MTD 1915170

Slide Weldment

$

$

Not available

28

MTD 1915143

Slide Pin

$

$

Not available

29

Troy-Bilt 1915187

5/16"-18 x 1" HH Bolt

$

$

Currently unavailable

30

MTD 1915192

Connecting Link

$

$

Not available

31

Troy-Bilt 1915173

Hair Pin Clip

$

$

Currently unavailable

32

Troy-Bilt 1915191

Cotter Key

$

$

Currently unavailable

33

Troy-Bilt 1915135

HH Bolt 3/8"-16 x 1-1/4"

$

$

Currently unavailable

34

Troy-Bilt 1915176

Hex Nut 3/8"-16

$

$

Currently unavailable

35

Troy-Bilt 1915180

HH Bolt 1/4"-20 x 1"

$

$

Currently unavailable

36

Troy-Bilt 1915181

Hex Nut 1/4"-20

$

$

Currently unavailable

37

Troy-Bilt 1915190

Thrust Washer

$

$

Currently unavailable
