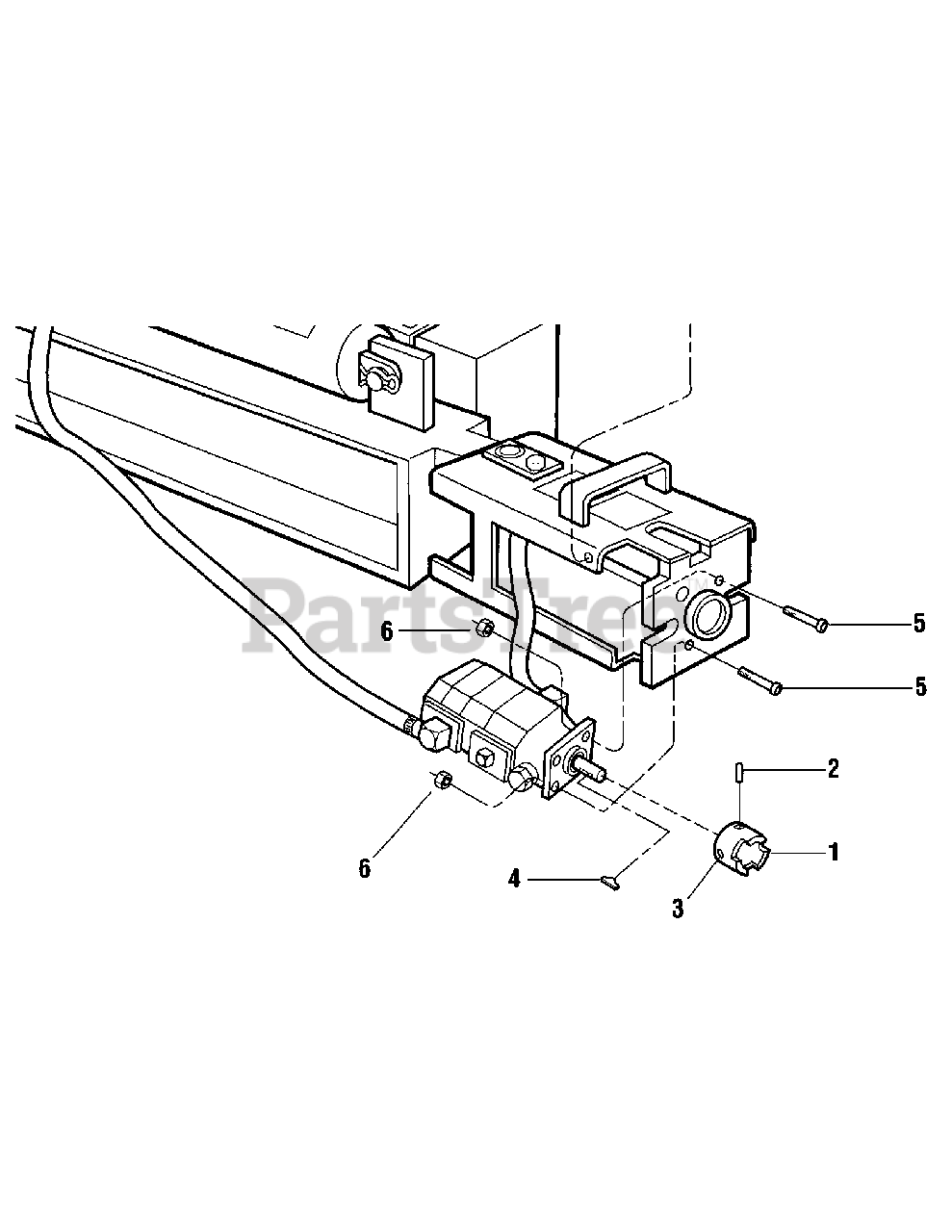

OEM-290-258 - Troy-Bilt PTO Log Splitter Attachment Clutch Parts Diagram

PTO Log Splitter Attachment

Clutch Parts Diagram

  • Title
1

MTD 1915138

Clutch (Includes Ref. 2 & 3)

$

$

Not available

2

Troy-Bilt 1915139

Set Screw-Clutch Assembly

$

$

Currently unavailable

3

Troy-Bilt 1915140

Spiral Pin-Clutch Assembly

$

$

Currently unavailable

4

Troy-Bilt 1915141

Hi Pro Key-Clutch Assembly

$

$

Currently unavailable

5

Troy-Bilt 1915185

5/16"-18 x 1" Cap Screw

$

$

Currently unavailable

6

Troy-Bilt 1915186

Hex Nut 5/16" - 18

$

$

Currently unavailable
