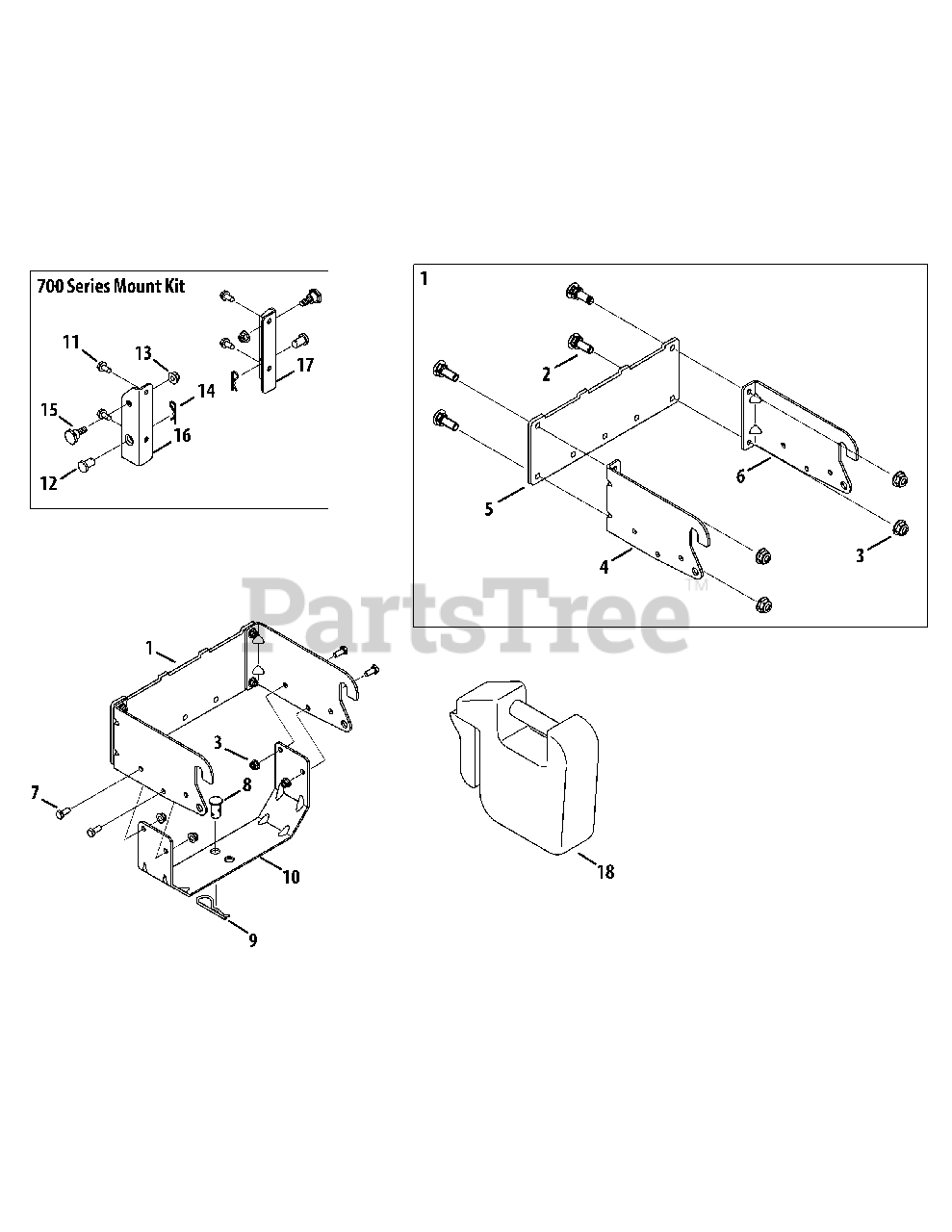

OEM-19A-218 - MTD Rear Mount Weight Kit (2013) General Assembly Parts Diagram

Rear Mount Weight Kit

General Assembly Parts Diagram

  • Title

1

MTD 689-00101

Hitch Bracket Assembly

$117.99

$

In Stock, only 1 left!

0

2

MTD 710-0276

Carriage Screw, 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

N/A

Hitch Bracket, RH

Note: Refer to Ref 1

$

$

Not available

5

N/A

Rear Attachment Bracket

Note: Refer to Ref 1

$

$

Not available

6

N/A

Hitch Bracket, LH

Note: Refer to Ref 1

$

$

Not available

7

MTD 710-3008

Hex Head Screw, 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

8

MTD 711-0309A

Clevis Pin, .62" Dia.

$12.99

$

In Stock, Qty 6

0

9

MTD 714-0117

Internal Cotter Pin, .148 x 3.00

$4.49

$

In Stock, Qty 16

0

10

MTD 783-05887-0637

Universal Bracket Support

$53.99

$

In Stock, only 1 left!

0

11

MTD 710-04484

Tap Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

12

MTD 711-0332

Clevis Pin, .50 x .78 Lg.
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

13

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

14

MTD 914-0145

Click Pin, .092 x 1.64 Lg.
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

15

MTD 738-04267

Shoulder Screw, .625 x .412

$5.49

$

In Stock, only 2 left!

0

16

MTD 783-05889A-0637

Mounting Bracket, RH

Note: For 700 series tractors

$24.99

$

In Stock, only 1 left!

0

17

MTD 783-05890A-0637

Mounting Bracket, LH

Note: For 700 series tractors

$24.99

$

In Stock, only 2 left!

0

18

MTD 959-3389

Suitcase Weight, 45 lb.
(Superseded to 490-900-M059)

$86.99

$

Usually ships in 3-6 days

0
