OEM-190-824 - MTD Electric Sleeve Hitch (2001) General Assembly Parts Diagram

Electric Sleeve Hitch

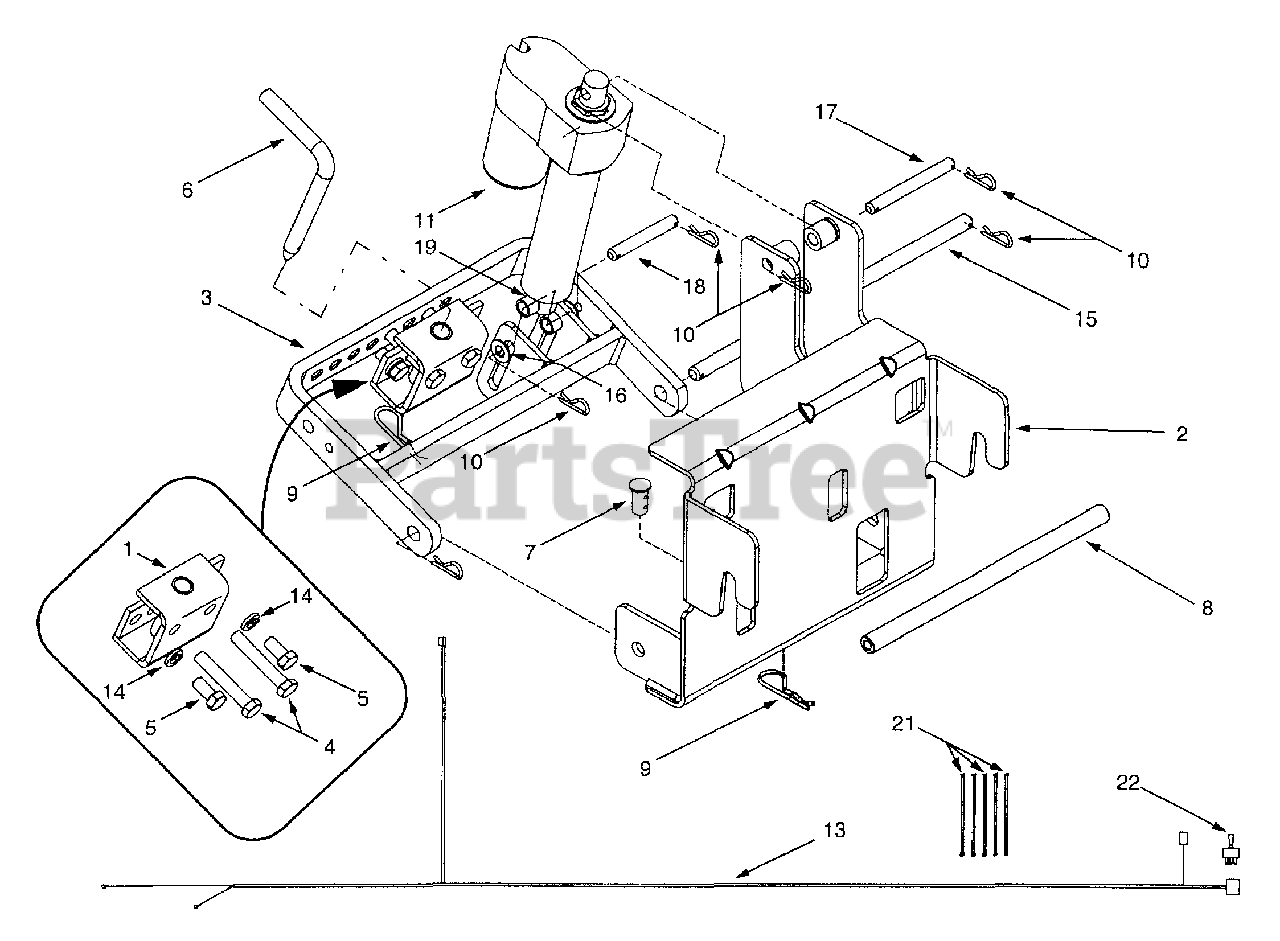

General Assembly Parts Diagram

  • Title
1

MTD 13269

Hitch Bracket Assembly
(Superseded to 13269-0637)

Variations

MTD 13269-0637

BRACKET ASSY-HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 683-0272A

Sleeve Hitch Bracket Assembly
(Superseded to 683-0272A-0637)

Variations

MTD 683-0272A-0637

BRACKET ASM-FAST A - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 683-0273

Sleeve Hitch Assembly
(Superseded to 683-0273-0637)

Variations

MTD 683-0273-0637

HITCH SLEEVE ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 710-0182

Hex Cap Screw, 1/2-13 x 3 (Grade 5)
(Superseded to 710-0182A)

$7.99

$

In Stock, only 2 left!

0

5

MTD 710-3131

Hex Cap Screw, 1/2-13 x 1 (Grade 5)

$5.49

$

In Stock, only 1 left!

0

6

MTD 711-0282

Hitch Pin

$72.99

$

Usually ships in 3-6 days

0

7

MTD 711-0309A

Clevis Pin

$12.99

$

In Stock, Qty 7

0

8

MTD 711-1440

Support Rod, 3/4 x 13"

$

$

Not available

9

MTD 714-0117

Internal Cotter Pin, .148 x 3

$4.49

$

In Stock, Qty 16

0

10

MTD 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

11

MTD 717-0620

Electromechanical Linear Actuator
(Superseded to 917-0620)

$1244.99

$

Usually ships in 3-6 days

0

?12

MTD 736-0272

Flat Washer, .51 x 1.0 x .06

$4.99

$

In Stock, Qty 20+

0

13

MTD 629-0919

Wire Harness
(Superseded to 929-0919)

$

$

Not available

14

MTD 736-0921

Lock Washer, 1/2

$4.49

$

In Stock, Qty 6

0

15

MTD 738-0482

Hitch Rod

$

$

Not available

16

MTD 736-3084

Flat Washer, 51 x 1.12 x .060

$4.99

$

In Stock, Qty 20+

0

17

MTD 747-1170

Upper Cylinder Support Rod

$

$

Not available

18

MTD 747-1171

Lower Cylinder Support Rod

$

$

Not available

19

MTD 750-1206

Spacer, .542 x .750 x .5

$16.99

$

In Stock, only 1 left!

0

?20

MTD 783-0668

Hitch Plate

Variations

MTD 783-0668-0498

No Longer Available PLATE-HITC - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0668-0637

No Longer Available PLATE-HITC - POWDER BLACK (0637)

$

$

Not available

MTD 783-0668-0665

No Longer Available PLATE-HITC - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0668-0691

No Longer Available PLATE-HITC - BLACK JACK (0691)

$

$

Not available

$

$

21

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

22

MTD 725-1053

Toggle Switch
(Superseded to 925-1053)

$105.99

$

Usually ships in 3-6 days

0
