OEM-190-182 - MTD Twin Bagger Assembly (2007) General Assembly Parts Diagram

Twin Bagger Assembly

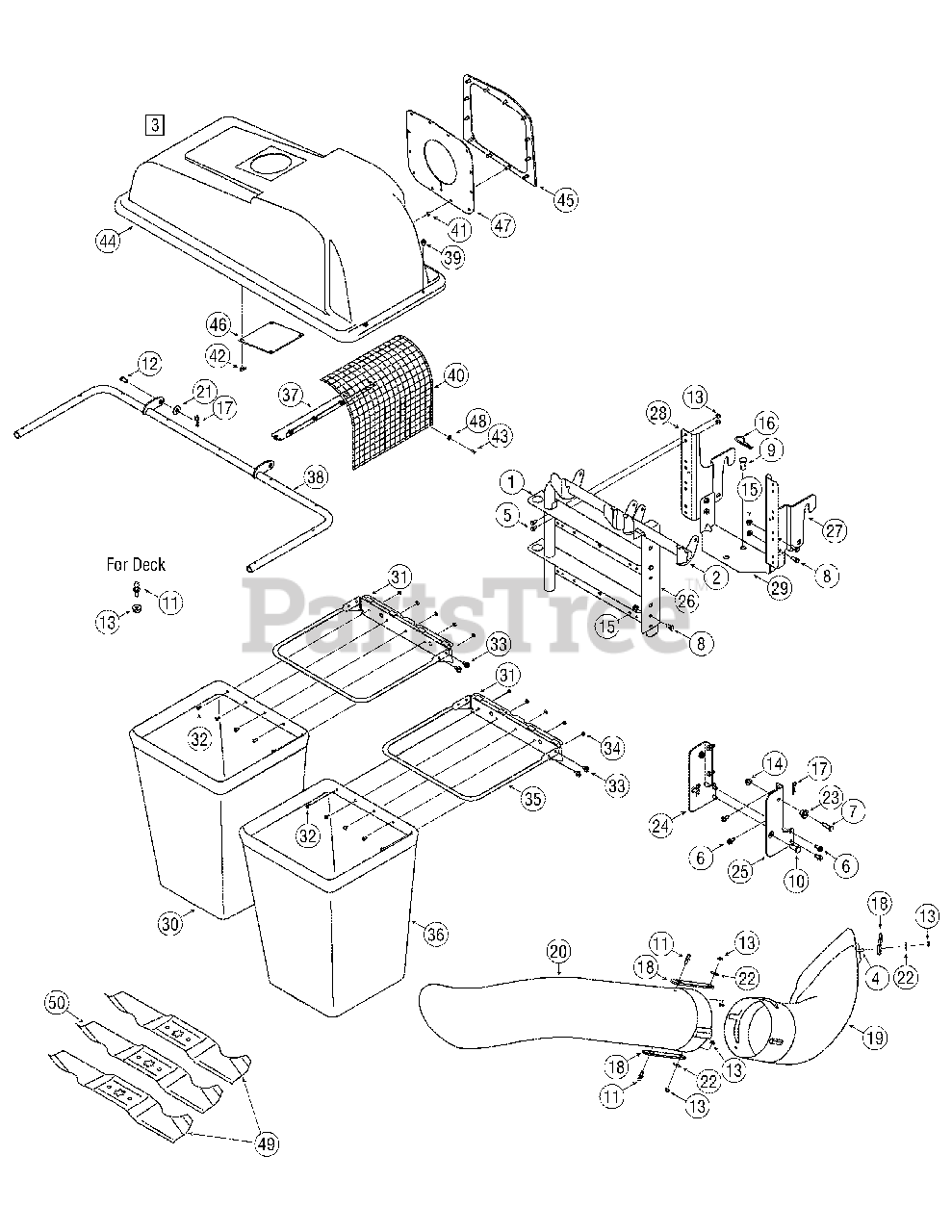

General Assembly Parts Diagram

  • Title

1

MTD 16587D-0637

Support Bracket: Bagger

$82.99

$

Usually ships in 3-6 days

0

2

MTD 16592-0637

Support Tube Assembly

$194.99

$

Usually ships in 3-6 days

0

3

MTD 664-04017

Grass catcher Cover Assy

Note: (includes Ref. 37 - 48)

$

$

Not available

4

MTD 710-0597

Screw 1/4-20 x 1"

$3.99

$

In Stock, Qty 14

0

5

MTD 710-0751

Hex Head Screw 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-1260A

Self-Tap. Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-3005

Hex Hd. Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-3008

Hex Hd. Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

9

MTD 711-0309A

Clevis Pin, .62 Dia.

$12.99

$

In Stock, Qty 7

0

10

MTD 711-0310

Clevis Pin, .50 x 1.18

$10.99

$

Usually ships in 3-6 days

0

11

MTD 711-04069

Grass Catcher Pin 1/4-20
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

12

MTD 711-1421

Clevis Pin, 3/8 x .75

$7.49

$

In Stock, only 3 left!

0

13

MTD 712-04064

Hex Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-04065

Hex Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-3004A

Hex Flg. Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

MTD 714-0117

Hairpin Clip

$4.49

$

In Stock, Qty 16

0

17

MTD 714-0145

Click Pin

$4.99

$

In Stock, Qty 20+

0

18

MTD 723-04008A

Chute Strap

$9.99

$

In Stock, Qty 20+

0

19

MTD 731-04153

Discharge Chute 38"/42" Deck
(Superseded to 731-04153A)

$86.99

$

In Stock, only 1 left!

0

19

MTD 731-04159

Discharge Chute 46" Deck
(Superseded to 931-04159A)

$113.99

$

In Stock, only 3 left!

0

20

MTD 731-0899E

Chute Tube 38"/42" Deck

$108.99

$

In Stock, only 2 left!

0

20

MTD 731-0926B

Chute Tube 46" Deck

$142.99

$

In Stock, only 1 left!

0

21

MTD 736-0331

Bell Washer

$3.99

$

In Stock, Qty 20+

0

22

MTD 736-3092

Flat Washer

$3.99

$

In Stock, Qty 9

0

23

MTD 738-04058

Shoulder Spacer

$4.49

$

In Stock, only 3 left!

0

24

MTD 783-04919-0637

Mounting Bracket, LH

$39.99

$

Usually ships in 3-6 days

0

25

MTD 783-04968-0637

Mounting Bracket, RH

$39.99

$

Usually ships in 3-6 days

0

26

MTD 783-0601-0637

Mounting Bracket

$35.99

$

Usually ships in 3-6 days

0

27

MTD 783-0673B-0637

Mounting Bracket RH

$68.99

$

Usually ships in 3-6 days

0

28

MTD 783-0764B-0637

Mounting Bracket LH

$69.99

$

Usually ships in 3-6 days

0

29

MTD 783-0765-0637

Bracket: Cross Support

$77.99

$

In Stock, only 1 left!

0

31

MTD 16591A-0637

Bag Hanger Bracket

$65.99

$

Usually ships in 3-6 days

0

32

MTD 710-0473

Machine Screw, , #10-24 x .5

$4.49

$

In Stock, only 2 left!

0

33

MTD 710-0604A

Self-tap. Scr., 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

34

MTD 712-0272

Hex Sems Nut, #10-24

$3.99

$

In Stock, only 1 left!

0

35

MTD 749-0701A-0637

Grass Bag Frame

$65.99

$

Usually ships in 3-6 days

0

36

MTD 764-0221

Grass Catcher Bag
(Superseded to 964-0221)

$73.99

$

In Stock, Qty 20+

0

37

MTD 16595B

Screen Mounting Bracket

$

$

Currently unavailable

38

MTD 16596-0637

Hinge Assembly

$105.99

$

Usually ships in 3-6 days

0

39

MTD 710-1652

Self-Tap. Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

40

MTD 720-04017

Grass catcher Sceen

$

$

Currently unavailable

41

MTD 726-0233

Push Nut, .25 x .50

$4.49

$

In Stock, Qty 20+

0

42

MTD 726-0258

Zip Twist Fastener

$4.49

$

Usually ships in 3-6 days

0

43

MTD 728-0123

Pop Rivet, 3/16 x .450
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

44

MTD 731-04168

Double Grassbag Cover
(Superseded to 931-04168)

$

$

Not available

45

MTD 731-04189

Grassbag Hopper Seal
(Superseded to 931-04189)

$

$

Not available

46

MTD 731-0824A

Plastic Plate, 1/8 x 5.6

$

$

Not available

47

MTD 735-04020

Grassbag Hopper Seal
(Superseded to 935-04020)

$

$

Not available

48

MTD 736-0400

Flat Washer, .194 x .62 x .063

$5.49

$

In Stock, Qty 12

0

49

MTD 742-0644

2-in-1 Blade 16.28"
(Superseded to 942-0611A)

Note: 46" Deck only

$29.99

$

In Stock, Qty 20+

0

50

MTD 742-0645

2-in-1 Blade 14.88"
(Superseded to 942-0645)

Note: 46" Deck only

$25.99

$

Usually ships in 3-6 days

0
