OEM-190-180 - MTD Twin Bagger Assembly (2003) General Assembly Parts Diagram

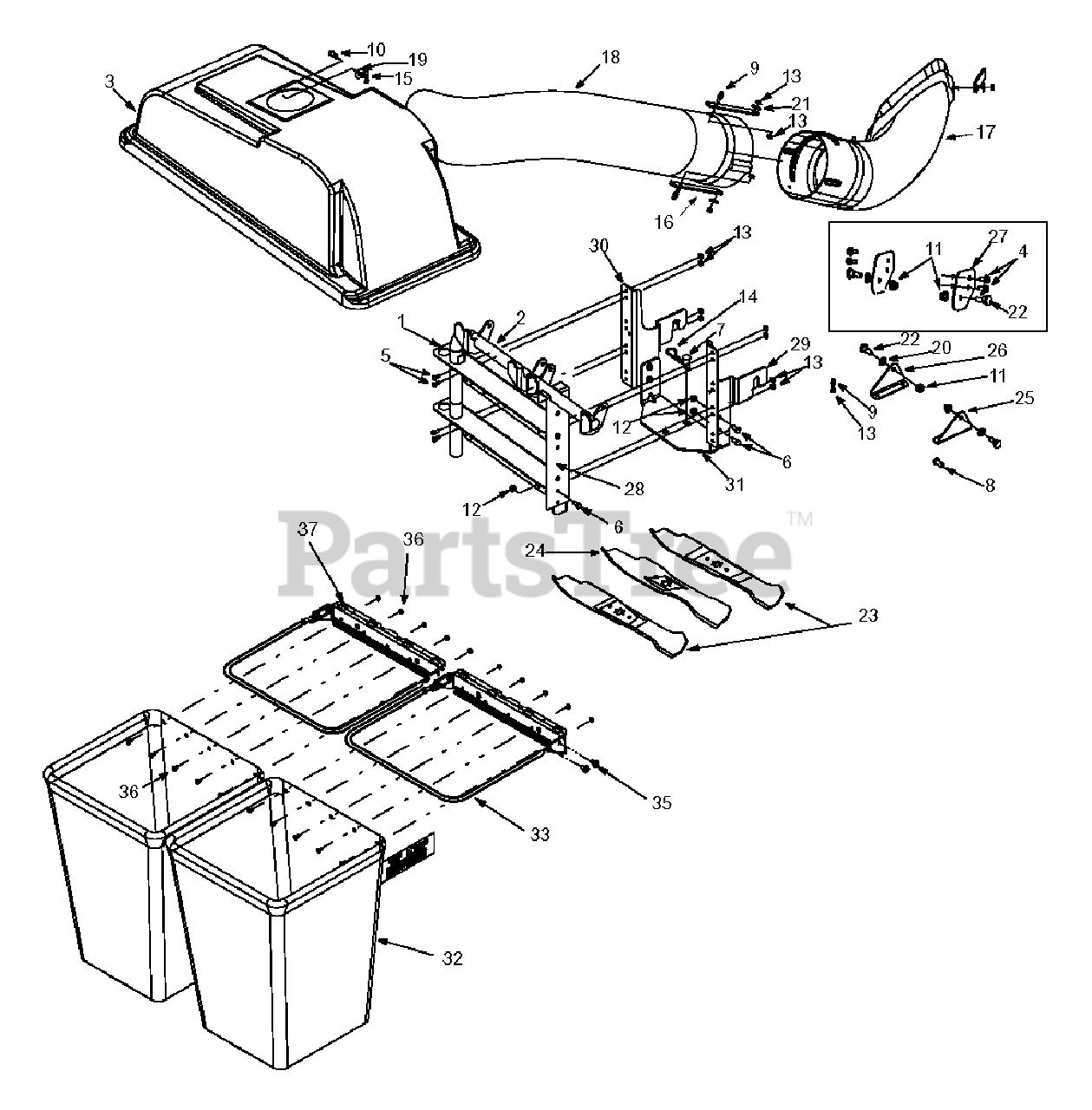

Twin Bagger Assembly

General Assembly Parts Diagram

  • Title
1

MTD 16587D

Support Bracket: Bagger
(Superseded to 16587D-0637)

Variations

MTD 16587D-0637

Mounting Bracket - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

2

MTD 16592

Support Tube Assembly
(Superseded to 16592-0637)

Variations

MTD 16592-0637

Support Tube Assembly, Black - POWDER BLACK (0637)

$194.99

$

Usually ships in 3-6 days

0

$194.99

$

Usually ships in 3-6 days

0

3

MTD 664-04017

Grasscatcher Cover Assembly

$

$

Not available

4

MTD 710-0623

Self-tapping Screw 3/8-16 x 0.75"

$4.49

$

In Stock, only 2 left!

0

5

MTD 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

7

MTD 711-0309A

Clevis Pin

$12.99

$

In Stock, Qty 6

0

MTD 711-0310

Clevis Pin

Note: (On older model tractors)

$10.99

$

Usually ships in 3-6 days

0

9

MTD 711-04069

Grasscatcher Pin
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

10

MTD 711-1421

Clevis Pin

$7.49

$

In Stock, only 3 left!

0

11

MTD 712-0459

Lock Nut 7/16-20

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-3027

Flange Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

14

MTD 714-0117

Hairpin Clip

$4.49

$

In Stock, Qty 6

0

15

MTD 714-0145

Click Pin

$4.99

$

In Stock, Qty 20+

0

16

MTD 723-04008

Chute Strap
(Superseded to 723-04008A)

$9.99

$

In Stock, Qty 20+

0

17

MTD 731-04159

Discharge Chute 46"
(Superseded to 931-04159A)

$113.99

$

In Stock, only 3 left!

0

MTD 731-04153

Discharge Chute 38"/42" Bag
(Superseded to 731-04153A)

$86.99

$

In Stock, only 1 left!

0

18

MTD 731-0926B

Catcher Tube

$142.99

$

In Stock, only 1 left!

0

MTD 731-0899E

Chute Tube (model 190-180)

$108.99

$

In Stock, only 2 left!

0

19

MTD 736-0331

Bell Washer

$3.99

$

In Stock, Qty 16

0

20

MTD 736-0407

Bell Washer

$3.99

$

In Stock, only 2 left!

0

21

MTD 736-3092

Flat Washer

$3.99

$

In Stock, Qty 9

0

22

MTD 738-1020

Shoulder Screw

$7.49

$

Usually ships in 3-6 days

0

23

MTD 742-0644

Blade 16.28" Lg. (model 190-182)
(Superseded to 942-0611A)

$29.99

$

In Stock, Qty 20+

0

24

MTD 742-0645

Blade 14.88" Lg. (model 190-182)
(Superseded to 942-0645)

$25.99

$

In Stock, only 1 left!

0

25

MTD 783-04132

Supt. Bracket (model 190-180) LH
(Superseded to 983-04132A)

Variations

MTD 783-04132-0637

BRACKET-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 783-04137

Supt. Bracket (model 190-180) RH
(Superseded to 983-04137A)

Variations

MTD 783-04137-0637

No Longer Available BRKT-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 783-04138

Support Bracket (model 190-182)

Variations

MTD 783-04138-0637

No Longer Available BRACKET-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 783-0601

Mounting Bracket
(Superseded to 783-0601-0637)

Variations

MTD 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

29

MTD 783-0673

Hook: Mounting Bracket
(Superseded to 783-0673B-0637)

Variations

MTD 783-0673-0637

Catcher Support Bracket, RH - POWDER BLACK (0637)

$68.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

30

MTD 783-0764

Mounting Bracket LH
(Superseded to 783-0764B-0637)

Variations

MTD 783-0764-0637

Catcher Support Bracket, LH - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

31

MTD 783-0765

Bracket: Cross Support
(Superseded to 783-0765-0637)

Variations

MTD 783-0765-0637

Cross Support Bracket - POWDER BLACK (0637)

$77.99

$

In Stock, only 1 left!

0

$77.99

$

In Stock, only 1 left!

0

32

MTD 764-0221

Catcher Bag
(Superseded to 964-0221)

$73.99

$

In Stock, Qty 20+

0

33

MTD 749-0701A

Grass Bag Frame
(Superseded to 749-0701A-0637)

Variations

MTD 749-0701A-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

34

MTD 712-0272

Hex Sems Nut, #10-24

$3.99

$

In Stock, only 1 left!

0

35

MTD 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

36

MTD 710-0473

Machine Screw, , #10-24 x .5

$4.49

$

In Stock, only 2 left!

0

37

MTD 16591A

Bag Hanger Bracket
(Superseded to 16591A-0637)

Variations

MTD 16591A-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0
