OEM-190-116 - MTD Mulch Kit (2010) General Assembly Parts Diagram

Mulch Kit

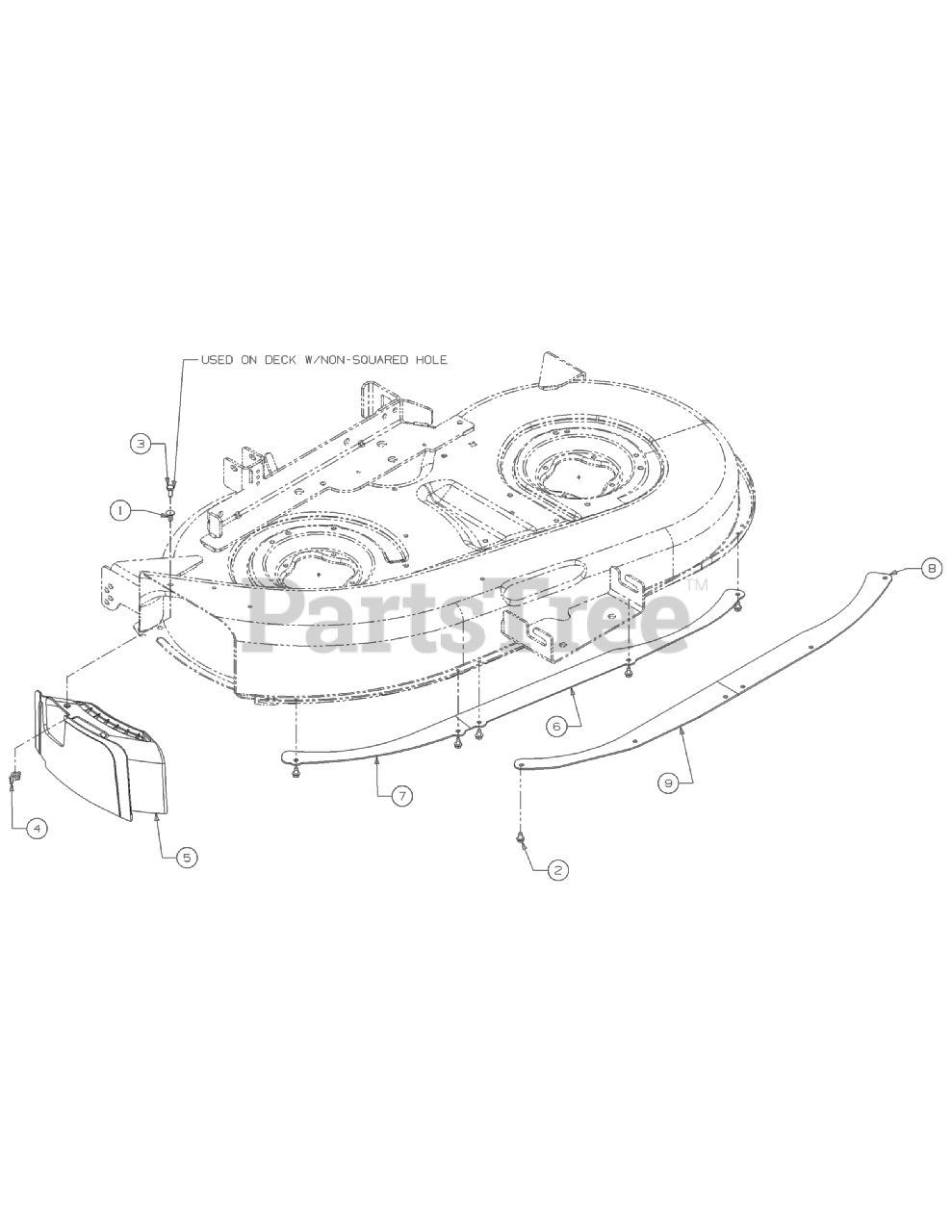

General Assembly Parts Diagram

  • Title

1

MTD 710-0134

1/4-20 x .6 Carriage Screw

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0599

1/4-20 x .5 Self-tapping Screws

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0751

1/4-20 x .6 Hex Screw

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-3087

1/4-20 Plastic Wing Nut

$3.99

$

In Stock, Qty 20+

0

5

MTD 731-2363

Mulch Plug

$29.99

$

In Stock, only 4 left!

0

6

MTD 783-1258A

LH Skirt for 42-inch Decks
(Superseded to 783-1258A-0637)

Variations

MTD 783-1258A-0637

Skirt, 42" Deck LH - POWDER BLACK (0637)

$44.99

$

In Stock, only 2 left!

0

$44.99

$

In Stock, only 2 left!

0

7

MTD 783-1259A

RH Skirt for 42-inch Decks
(Superseded to 783-1259A-0637)

Variations

MTD 783-1259A-0637

Skirt, 42" Deck RH - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

8

MTD 783-1299

RH Skirt for 38-inch Decks
(Superseded to 783-1299-0637)

Variations

MTD 783-1299-0637

SKIRT-38"DECK RH - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

9

MTD 783-1300

LH Skirt for 38-inch Decks
(Superseded to 783-1300-0637)

Variations

MTD 783-1300-0637

SKIRT-38"DECK LH - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

MTD 736-0270

Bell Washer

Note: Not shown, If equipped

$3.99

$

In Stock, Qty 20+

0

MTD 726-0211

U-Nut

Note: Not shown, If equipped

$4.49

$

Usually ships in 3-6 days

0

MTD OEM-190-116

Mulch Kit

Note: Includes 1-9

$101.99

$

In Stock, only 2 left!

0
