Triple Bagger Assembly

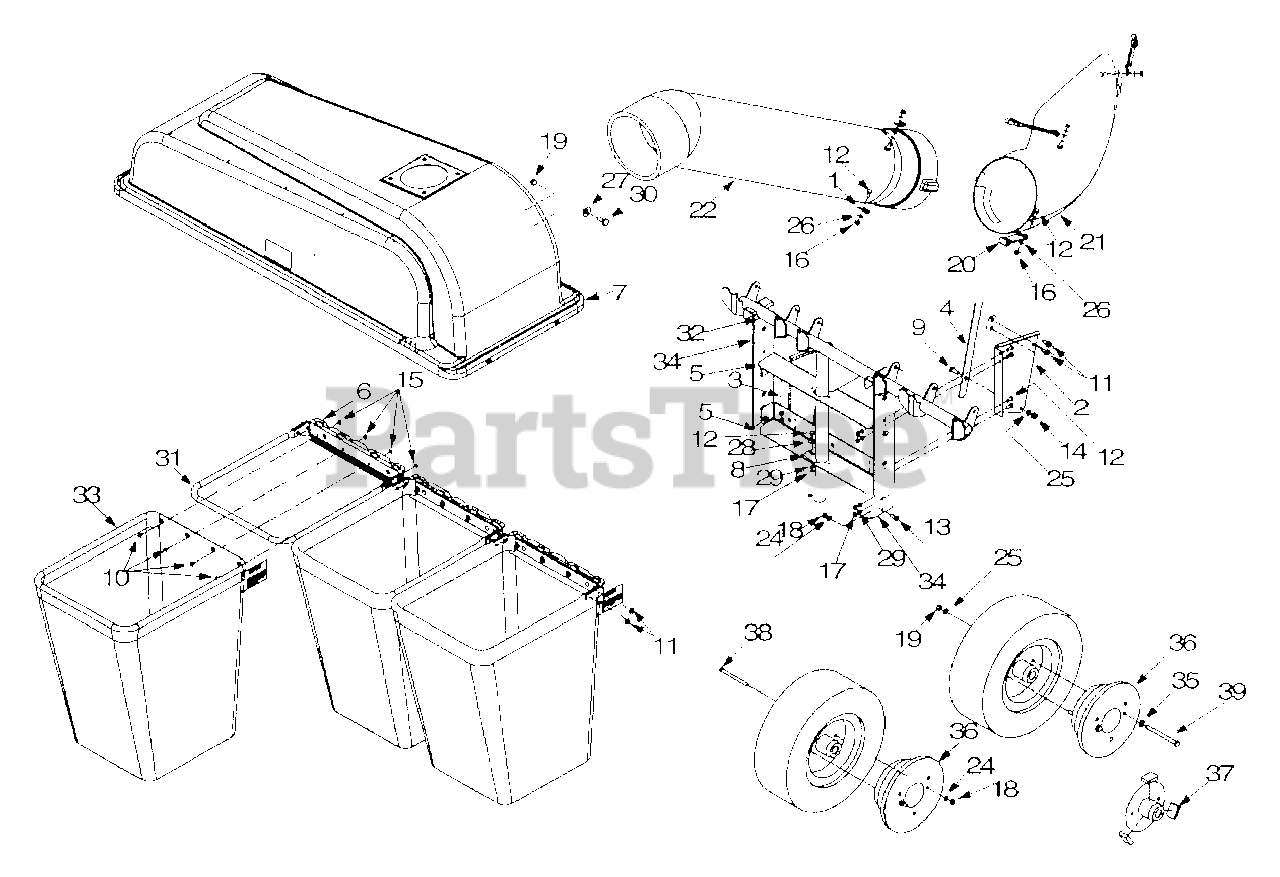

General Assembly Parts Diagram

  • Title

1

MTD 16606

Retainer Hook Bracket
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

MTD 17190

Support Bracket: RH

Variations

MTD 17190-0637

No Longer Available BRACKET-SU - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 17191

Support Bracket: LH
(Superseded to 17191-0637)

Variations

MTD 17191-0637

BRACKET-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 17192

Retainer Bracket Assembly

Variations

MTD 17192-0637

No Longer Available BRKT ASM- - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 17200A

Catcher Support Bracket

Variations

MTD 17200A-0637

No Longer Available BRKT. CATC - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 17201A

Bag Frame Hanger Bracket
(Superseded to 17201A-0637)

Variations

MTD 17201A-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

7

MTD 17204

Catcher Assembly: Cover

$

$

Not available

8

MTD 17247

Support Tube Bracket
(Superseded to 17247-0637)

Variations

MTD 17247-0637

BRACKET.-TUBING ADAPT - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

9

MTD 710-0180

Hex Screw: 3/8-24 x .75" Gr.5

$6.99

$

In Stock, only 3 left!

0

10

MTD 710-0473

Machine Screw: 310-24 x 0.5"

$4.49

$

In Stock, only 2 left!

0

11

MTD 710-0604A

TT Screw: 5/16-18 x 0.625"

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0751

Hex Screw: 1/4-20 x .620"

$3.99

$

In Stock, Qty 20+

0

13

MTD 710-3008

Hex Screw: 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-0241

Hex Nut: 3/8-24

$4.49

$

In Stock, Qty 13

0

15

MTD 712-0272

Sems Nut: 10-24

$3.99

$

In Stock, only 1 left!

0

16

MTD 712-0324

Hex Lock Nut

$3.99

$

In Stock, Qty 17

0

17

MTD 712-3006

Hex Nut: 1 /4-20

$4.99

$

In Stock, Qty 19

0

18

MTD 712-3010

Hex Nut: 5/16-18

Note: Only on wheels with 6-inch rim

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-0431

Hex Nut 3/8-16
(Superseded to 912-0431)

Note: Only on wheels with 8-inch rim

$4.99

$

In Stock, Qty 20+

0

20

MTD 723-0383

Retainer Strap
(Superseded to 923-0383)

$15.99

$

In Stock, Qty 5

0

21

MTD 731-0925B

Discharge Chute
(Superseded to 731-0925C)

$162.99

$

In Stock, only 2 left!

0

22

MTD 731-0926

Elbow Tube
(Superseded to 731-0926B)

$142.99

$

In Stock, only 1 left!

0

24

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

Note: Only on wheels with 6-inch rim

$4.99

$

In Stock, Qty 20+

0

25

MTD 736-0169

Lock Washer

Note: Only on wheels with 8-inch rim

$3.99

$

In Stock, Qty 20+

0

26

MTD 736-0175

Spring Washer
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

27

MTD 736-0255

Bell Washer

$4.99

$

In Stock, only 3 left!

0

28

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

29

MTD 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

30

MTD 738-0380

Shoulder Screw

$7.99

$

In Stock, only 1 left!

0

31

MTD 749-0745A

Frame Tube
(Superseded to 749-0745A-0637)

Variations

MTD 749-0745A-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 749-0750

Support Tube Assembly
(Superseded to 689-00002-0637)

Variations

MTD 749-0750-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 764-0251

Catcher Bag
(Superseded to 964-0251)

$87.99

$

In Stock, Qty 15

0

34

MTD 783-0601

Support Bracket
(Superseded to 783-0601-0637)

Variations

MTD 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

35

MTD 736-0300

Flat Washer

Note: Only on wheels with 8-inch rim

$4.49

$

In Stock, Qty 20+

0

36

MTD 723-04148

Wheel Weight: 20 lb.

$

$

Currently unavailable

37

MTD 722-0157

Foam Strip t

Note: Only on wheels with 8-inch rim

$4.49

$

Usually ships in 3-6 days

0

38

MTD 710-0190

Hex Screw: 5/16-18 x 4" Gr.5

Note: Only on wheels with 6-inch rim

$7.99

$

Usually ships in 3-6 days

0

39

MTD 710-0693

Hex Screw: 3/8-16 x 4 5" Gr.5

Note: Only on wheels with 8-inch rim

$14.99

$

In Stock, only 2 left!

0
