OEM-190-083 - MTD Triple Bagger Assembly (2001) Cover Assembly Parts Diagram

Triple Bagger Assembly

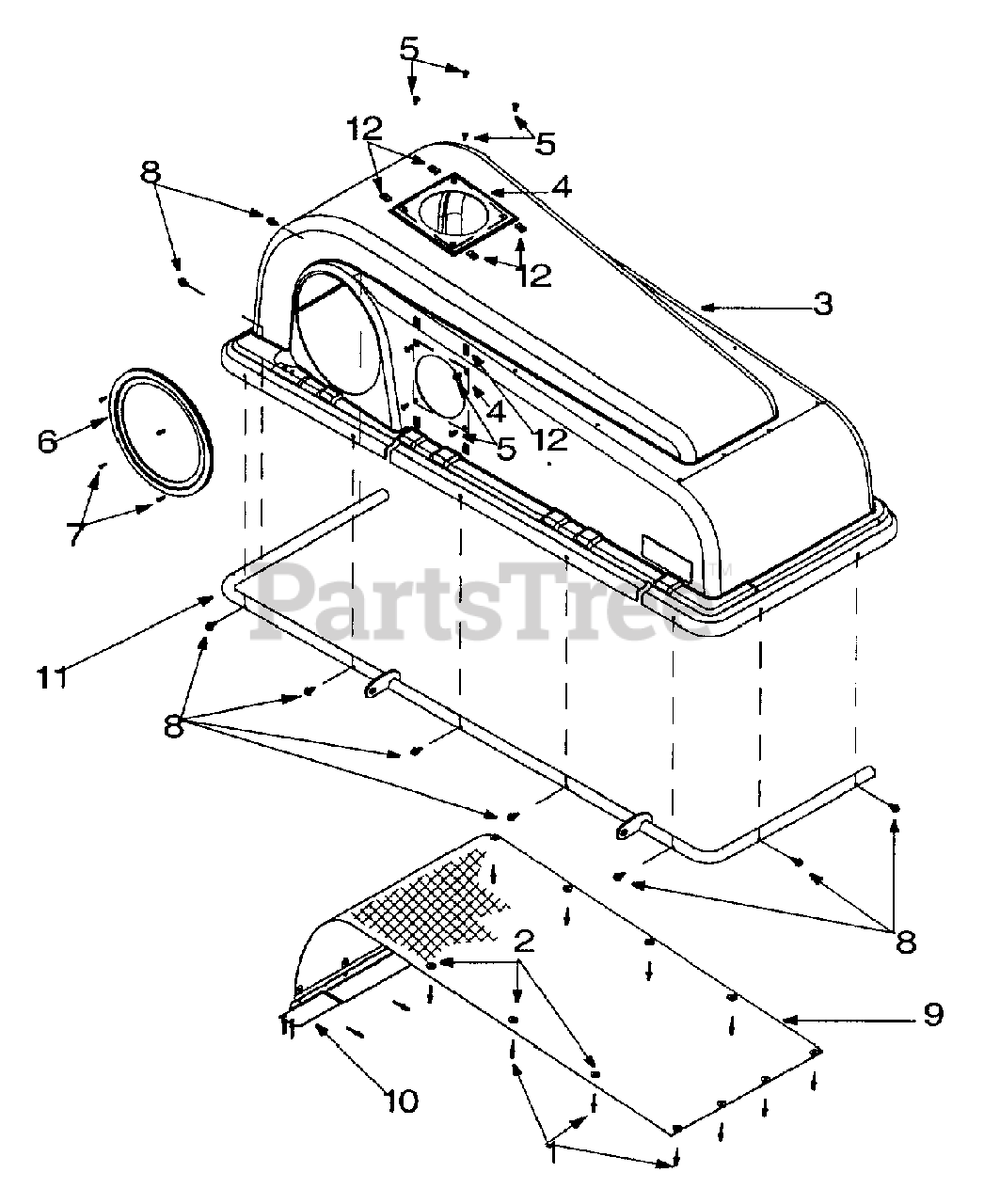

Cover Assembly Parts Diagram

  • Title

1

MTD 728-0123

Pop Rivet
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

2

MTD 736-0400

Flat Washer 1/4" I.D.

$5.49

$

In Stock, Qty 12

0

3

MTD 731-0896

Grass Catcher Cover

$

$

Not available

4

MTD 731-0824A

Plastic Plate

$

$

Not available

5

MTD 710-0473

Truss Machine Screw #10 x 0.5"

$4.49

$

In Stock, only 2 left!

0

6

MTD 723-0413

Tube Seal

$30.99

$

In Stock, only 2 left!

0

7

MTD 710-0936

Truss AB-Tap Screw #6 x 0.6"

$4.49

$

Usually ships in 3-6 days

0

8

MTD 710-0896

Hex AB Screw 1/4-14 x 0.625"

$4.49

$

In Stock, Qty 20+

0

9

MTD 723-0407

Screen

$

$

Not available

10

MTD 17202

Screen Mounting Bracket

Variations

MTD 17202-0637

No Longer Available BRACKET SC - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 749-0747

Hinge Bracket Assembly
(Superseded to 749-0747-0637)

Variations

MTD 749-0747-0637

Hinge Brkt. Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 712-0147

Speed Nut #10-24 U Type

$6.99

$

Usually ships in 3-6 days

0
