OEM-190-032 - Toro 42" Two-Stage Snow Thrower Attachment (2010) HANDLE, BELT AND DRIVE ASSEMBLY Parts Diagram

42" Two-Stage Snow Thrower Attachment

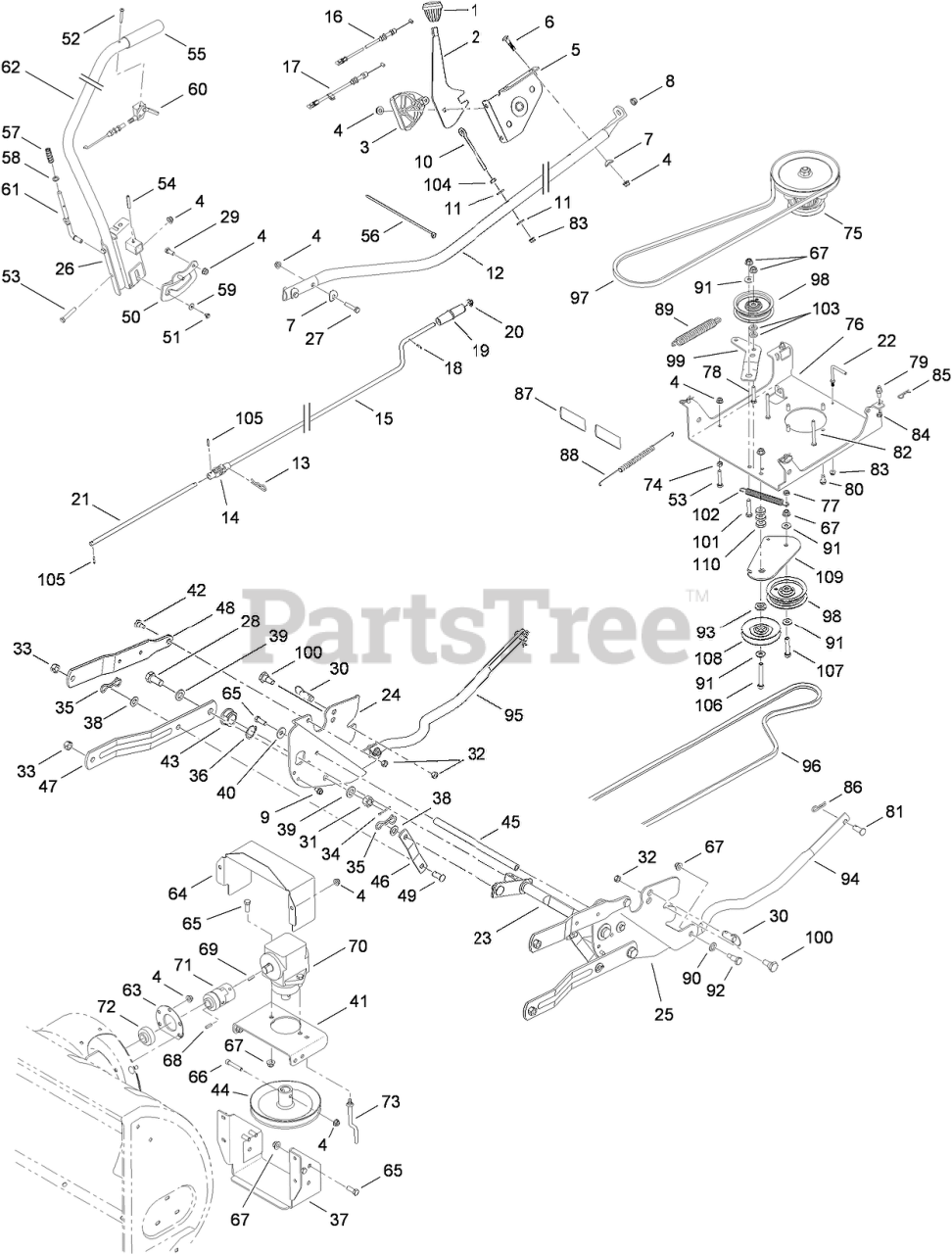

HANDLE, BELT AND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3955

KNOB

$

$

Not available

2

Toro 112-1065

HANDLE-TILT, CHUTE

$

$

Not available

3

Toro 112-1008

GUIDE-CABLE

$

$

Not available

4

Toro 112-0650

NUT-LOCK, FLANGE

$6.99

$

In Stock, only 3 left!

0

5

Toro 112-0944

BRACKET-TILT, CHUTE

$27.99

$

Usually ships in 3-6 days

0

6

Toro 112-1073

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

7

Toro 112-1169

WASHER-SADDLE

$5.49

$

Usually ships in 3-6 days

0

8

Toro 112-0929

BUSHING

$6.99

$

In Stock, Qty 20+

0

9

Toro 112-0556

SCREW-HWH

$6.99

$

Usually ships in 3-6 days

0

10

Toro 119-3964

BOLT-EYE

$15.99

$

Usually ships in 3-6 days

0

11

Toro 112-0485

WASHER-SPRING

$6.99

$

In Stock, only 1 left!

0

12

Toro 112-1039

TUBE-SUPPORT, CHUTE

$156.99

$

Usually ships in 3-6 days

0

13

Toro 119-3965

PIN-COTTER

$

$

Not available

14

Toro 119-3959

JOINT BLOCK ASM

$

$

Not available

15

Toro 112-1031

ROD-CRANK, CHUTE

$

$

Not available

16

Toro 112-1025

CABLE-CHUTE

$84.99

$

Usually ships in 3-6 days

0

17

Toro 112-1026

CABLE-CHUTE

$86.99

$

Usually ships in 3-6 days

0

18

Toro 112-1131

PIN-ROLL

$5.49

$

Usually ships in 3-6 days

0

19

Toro 112-0993

KNOB-CRANK, CHUTE

$

$

Not available

20

Toro 112-1141

NUT-PUSH

$

$

Not available

21

Toro 112-1028

ROD

$27.99

$

Usually ships in 3-6 days

0

22

Toro 119-3962

PIN-KEEPER, BELT

$

$

Not available

23

Toro 112-0945

ROD ASM

$575.99

$

Usually ships in 3-6 days

0

24

Toro 112-1052

PLATE-RH MOUNTING

$166.99

$

Usually ships in 3-6 days

0

25

Toro 112-1051

PLATE-LH MOUNTING

$166.99

$

Usually ships in 3-6 days

0

26

Toro 112-0950

LIFT BRACKET ASM

$123.99

$

Usually ships in 3-6 days

0

27

Toro 112-0594

SCREW-HH

$5.49

$

In Stock, Qty 16

0

28

Toro 112-0975

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

29

Toro 112-1090

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

30

Toro 119-3954

PIN-RELEASE, QUICK

$39.99

$

Usually ships in 3-6 days

0

31

Toro 112-0982

NUT-HEX CASTLE

$9.49

$

Usually ships in 3-6 days

0

32

Toro 112-0909

NUT-LOCK

$

$

Not available

33

Toro 112-1117

NUT-HEX, LOCK

$5.49

$

Usually ships in 3-6 days

0

34

Toro 112-0412

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

35

Toro 119-3960

PIN-COTTER, BOW TIE

$

$

Not available

36

Toro 112-1132

RING-SNAP

$7.49

$

Usually ships in 3-6 days

0

37

Toro 112-1062

PLATE-SKID

$

$

Not available

38

Toro 112-1163

WASHER-FLAT

$5.49

$

Usually ships in 3-6 days

0

39

Toro 112-1167

WASHER-FLAT

$5.49

$

Usually ships in 3-6 days

0

40

Toro 112-1170

WASHER-BELL

$5.49

$

Usually ships in 3-6 days

0

41

Toro 112-1053

BRACKET-MOUNTING

$144.99

$

Usually ships in 3-6 days

0

42

Toro 112-1019

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

43

Toro 119-3966

BEARING-FLANGE

$

$

Not available

44

Toro 112-1042

PULLEY-DRIVE

$185.99

$

Usually ships in 3-6 days

0

45

Toro 112-1030

ROD

$

$

Not available

46

Toro 112-1048

LINK

$

$

Not available

47

Toro 112-1049

LINK

$123.99

$

Usually ships in 3-6 days

0

48

Toro 112-1050

LINK

$98.99

$

Usually ships in 3-6 days

0

49

Toro 112-0376

PIN-BRACKET, LIFT

$26.99

$

Usually ships in 3-6 days

0

50

Toro 112-1068

BRACKET-LIFT

$20.99

$

Usually ships in 3-6 days

0

51

Toro 119-3967

SCREW-WASHER, HEX INDEX

$

$

Not available

52

Toro 112-1093

SCREW-PAN HD

$13.99

$

Usually ships in 3-6 days

0

53

Toro 112-1095

BOLT-HH

$

$

Not available

54

Toro 112-1130

PIN-ROLL

$

$

Not available

55

Toro 112-0995

GRIP

$

$

Not available

56

Toro 112-0527

TIE-CABLE

$6.99

$

Usually ships in 3-6 days

0

57

Toro 112-0406

SPRING-COMPRESSION

$12.99

$

In Stock, only 1 left!

0

58

Toro 112-0407

WASHER-FLAT

$

$

Not available

59

Toro 112-1168

WASHER-FLAT

$

$

Not available

60

Toro 112-1024

CABLE-LIFT, W/TRIGGER

$118.99

$

Usually ships in 3-6 days

0

61

Toro 112-1032

ROD-INDEX, LIFT

$

$

Not available

62

Toro 112-1040

TUBE-HANDLE, LIFT

$348.99

$

Usually ships in 3-6 days

0

63

Toro 112-0937

HOUSING-BEARING

$

$

Not available

64

Toro 112-0967

COVER-BELT

$43.99

$

Usually ships in 3-6 days

0

65

Toro 112-0492

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

66

Toro 112-1096

SCREW-HSH

$9.49

$

Usually ships in 3-6 days

0

67

Toro 112-0668

NUT-LOCK, FLANGE

$6.49

$

In Stock, Qty 5

0

68

Toro 112-1122

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

69

Toro 112-1123

KEY-HI PRO

$5.49

$

In Stock, only 1 left!

0

70

Toro 112-1134

DRIVE-ANGLE, RIGHT

$1032.99

$

Usually ships in 3-6 days

0

71

Toro 112-1137

COUPLER-FLEXIBLE

$

$

Not available

72

Toro 112-1180

BEARING-BALL (W/OUT COLLAR)

$

$

Not available

73

Toro 112-1033

ROD-KEEPER, BELT

$26.99

$

Usually ships in 3-6 days

0

74

Toro 112-0437

NUT-HEX

$5.49

$

Usually ships in 3-6 days

0

75

Toro 112-0946

7 INCH PULLEY SPINDLE ASM

$

$

Not available

76

Toro 119-3968

BRACKET-MOUNTING, PULLEY

$

$

Not available

77

Toro 119-3963

NUT

$

$

Not available

78

Toro 112-0513

SCREW-HH

$6.99

$

In Stock, only 1 left!

0

79

Toro 112-0972

PIN

$

$

Not available

80

Toro 112-0395

SCREW-HWH

$10.99

$

In Stock, Qty 19

0

81

Toro 112-1097

PIN-CLEVIS

$

$

Not available

82

Toro 112-1101

KEEPER-BELT

$16.99

$

Usually ships in 3-6 days

0

83

Toro 112-0636

NUT-LOCK, FLANGE

$6.99

$

In Stock, only 1 left!

0

84

Toro 112-1115

NUT-HEX, CENTER LOCK

$

$

Not available

85

Toro 112-0912

PIN-HAIR

$

$

Not available

86

Toro 112-0989

PIN-CLIP, INTERNAL

$

$

Not available

87

Toro 112-1145

REFLECTOR

$

$

Not available

88

Toro 112-1014

SPRING-EXTENSION

$

$

Not available

89

Toro 112-0324

SPRING-EXTENSION

$30.99

$

In Stock, only 1 left!

0

90

Toro 112-1156

WASHER-FLAT

$5.49

$

Usually ships in 3-6 days

0

91

Toro 112-1018

WASHER-ISOMOUNT

$6.99

$

Usually ships in 3-6 days

0

92

Toro 112-1174

BOLT-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

93

Toro 112-0508

SPACER-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

94

Toro 112-1037

TUBE-SUPPORT, LH

$85.99

$

Usually ships in 3-6 days

0

95

Toro 112-1038

TUBE-SUPPORT, RH

$

$

Not available

96

Toro 119-3961

BELT-V

$112.99

$

Usually ships in 3-6 days

0

97

Toro 112-1196

BELT- V TYPE

$90.99

$

Usually ships in 3-6 days

0

98

Toro 112-0303

PULLEY-IDLER, 3.50 INCH

$68.99

$

Usually ships in 3-6 days

0

99

Toro 112-1057

BRACKET-IDLER

$

$

Not available

100

Toro 112-0565

BOLT-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

101

Toro 112-0557

SCREW-HH

$6.99

$

In Stock, only 1 left!

0

102

Toro 112-3678

SPRING-EXTENSION

$

$

Not available

103

Toro 112-0544

WASHER-FLAT

$6.99

$

In Stock, Qty 6

0

104

Toro 112-0522

NUT-HEX

$6.99

$

Usually ships in 3-6 days

0

105

Toro 119-3958

PIN-SPIROL

$

$

Not available

106

Toro 112-0978

BOLT-HEX

$5.49

$

Usually ships in 3-6 days

0

107

Toro 112-0421

SCREW-HH

$6.99

$

In Stock, only 1 left!

0

108

Toro 112-0365

PULLEY

$

$

Not available

109

Toro 112-3679

IDLER PIVOT ASM

$

$

Not available

110

Toro 112-3676

SPACER

$

$

Not available
