OEM-190-024 - MTD Vacuum Hose Kit (2004) Vacuum Hose Assembly Parts Diagram

Vacuum Hose Kit

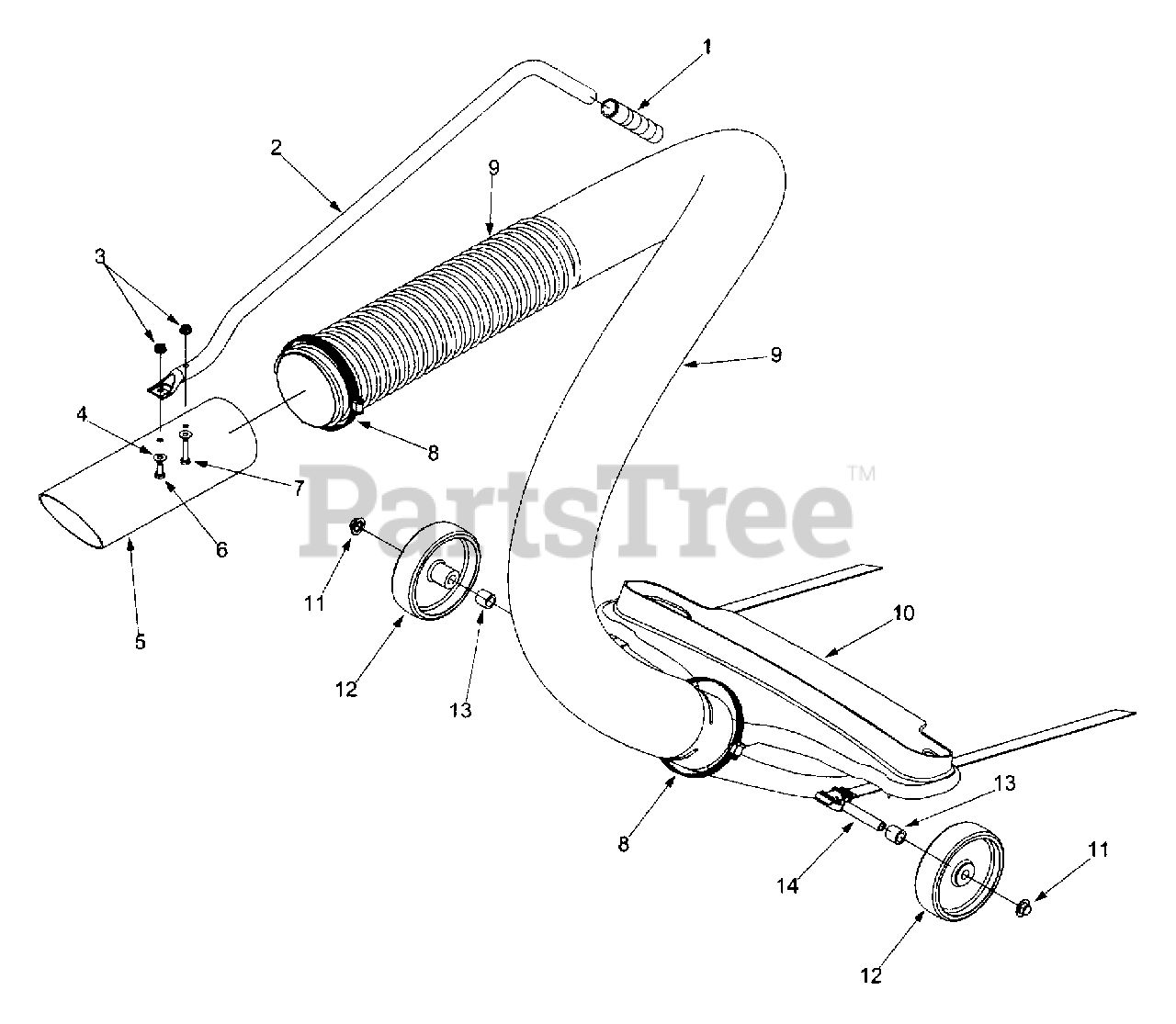

Vacuum Hose Assembly Parts Diagram

  • Title

1

MTD 07071

Handle Grip

$12.99

$

Usually ships in 3-6 days

0

2

MTD 749-1270

Handle
(Superseded to 749-1270A)

Variations

MTD 749-1270-0637

HANDLE-NOZZLE CSV - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

3

MTD 712-3027

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

4

MTD 736-3020

Flat Washer .271 ID x .630 OD

$6.99

$

In Stock, Qty 9

0

5

MTD 731-2478

Nozzle 3.875 x 12.0
(Superseded to 731-2478A)

$77.99

$

In Stock, only 4 left!

0

6

MTD 710-0751

Hex Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0106

Hex Cap Screw 1/4-20 x 1.25

$3.99

$

In Stock, Qty 12

0

8

MTD 723-0295

Adjustable Clamp

$10.99

$

Usually ships in 3-6 days

0

9

MTD 764-0646

Vacuum Hose

$

$

Not available

10

MTD 631-0204

Hose Attachment Nozzle Ass'y
(Superseded to 931-0204)

$

$

Not available

11

MTD 726-0299

Push Cap

$8.49

$

In Stock, Qty 20+

0

12

MTD 734-0973

Wheel 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

13

MTD 750-0743

Spacer

$

$

Not available

14

MTD 711-1552

Axle .50 OD x .354 ID x 16.7

$

$

Not available
