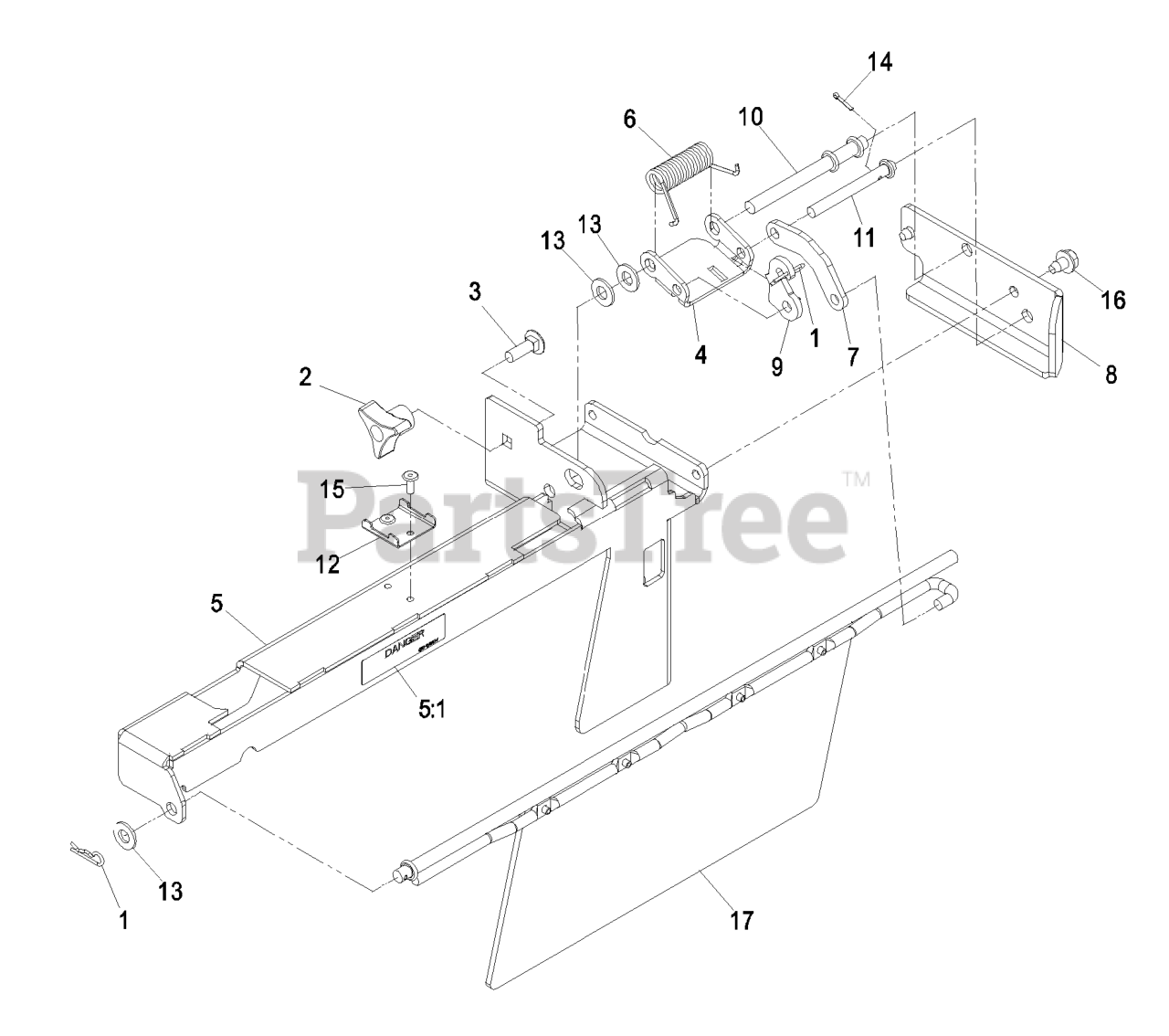

OCD02 - Exmark Operator Controlled Discharge Gate Linkage Assembly - 109-7160 Parts Diagram

Operator Controlled Discharge

Gate Linkage Assembly - 109-7160 Parts Diagram

  • Title

1

Exmark 1-806003

Hairpin, Cotter

$1.49

$

In Stock, Qty 20+

0

2

Exmark 1-323385

Knob, 3 Prong

$5.49

$

In Stock, Qty 20+

0

3

Exmark 3230-2

Bolt, Carriage 5/16-18 X 1

$1.49

$

In Stock, Qty 5

0

4

Exmark 109-7152

Bracket, Link Pivot

$

$

Not available

5

Exmark 116-0866

Asm, Gate Link Frame W/Decal

$

$

Not available

5:1

Exmark 98-5954

Decal, Danger

$9.49

$

In Stock, Qty 7

0

6

Exmark 109-7158

Spring-Torsion

$

$

Not available

7

Exmark 109-8281

Link, Gate
(Superseded to 116-1213)

$

$

Not available

8

Exmark 109-8651-01

Bracket, Pivot Support
(Superseded to 116-1310-01)

$

$

Not available

9

Exmark 109-8652

Link, Gate Lift

$

$

Not available

10

Exmark 109-8654

Rod, Control Pivot
(Superseded to 116-1285)

$

$

Not available

11

Exmark 109-8674

Rod, Control Link
(Superseded to 116-1281)

$

$

Not available

12

Exmark 109-9599

Channel, Latch Contact

$

$

Not available

13

Exmark 3256-24

Washer, 3/8 SAE

$0.99

$

In Stock, Qty 19

0

14

Exmark 3272-5

Pin, Cotter 3/32 X 1/2

$1.49

$

In Stock, Qty 5

0

15

Exmark 114439

Rivet

$1.49

$

In Stock, Qty 20+

0

16

Exmark 9266934

Screw, Hwh 5/16 X 1/2 Tf

$8.99

$

In Stock, only 2 left!

0

17

Exmark 109-7150

Asm, Gate

$93.99

$

In Stock, only 1 left!

0
