NZMXL 32734 BV (7800073) - Snapper 73" Zero-Turn Mower, 32hp B&S TRACTION DRIVE ASSEMBLY Parts Diagram

73" Zero-Turn Mower, 32hp B&S

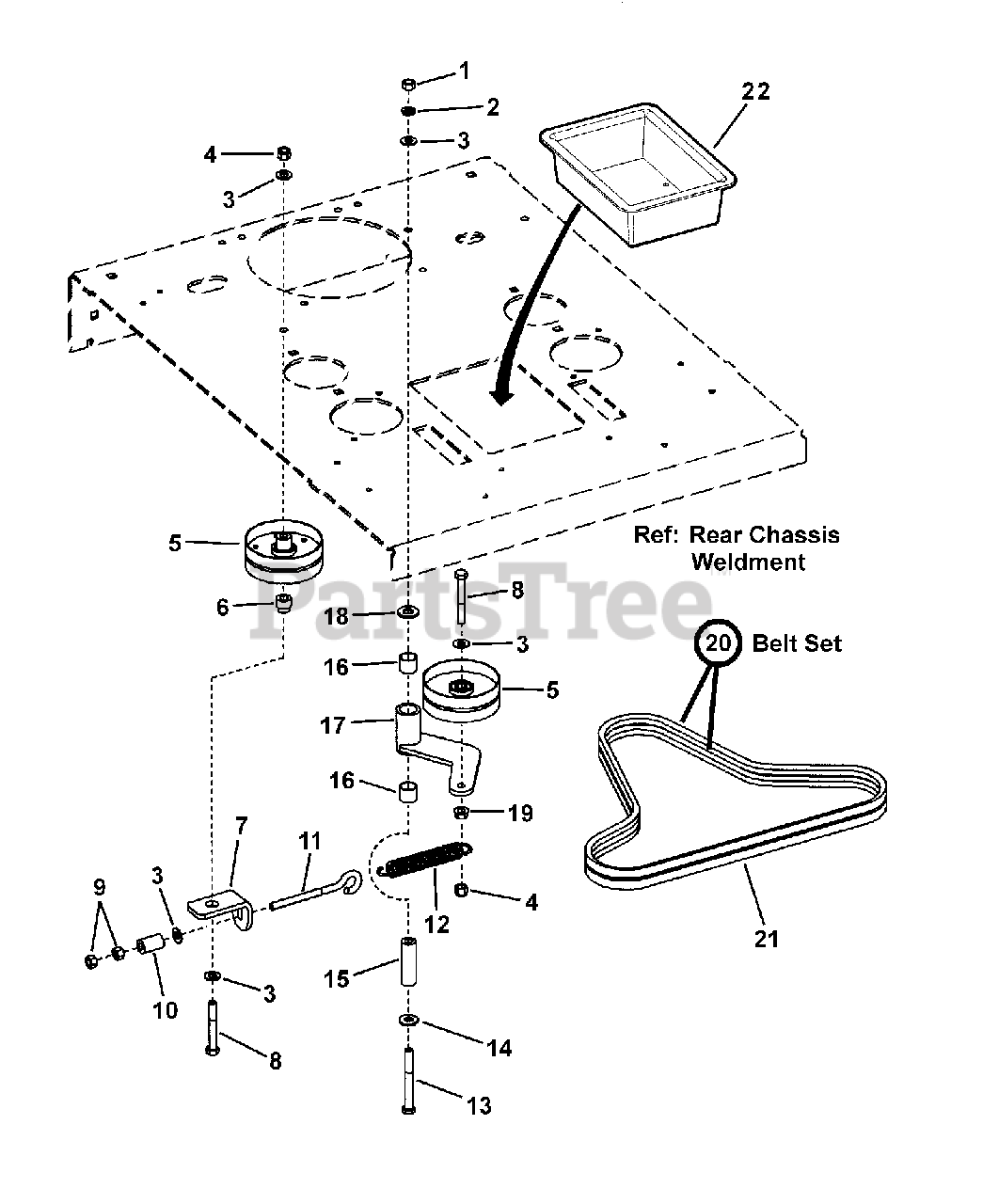

TRACTION DRIVE ASSEMBLY Parts Diagram

  • Title

1

Snapper 7090130

NUT, 3/8-16 Hex, GR 5 or B
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

2

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

3

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7041262

PULLEY, 4" O.D. x .391 I.D. x 1.25 Backside Idler
(Superseded to 7041262YP)

$49.99

$

In Stock, only 1 left!

0

6

Snapper 7200078

SPACER, Pulley
(Superseded to 7200078YP)

$34.99

$

Usually ships in 2-12 days

0

7

Snapper 7300356

MOUNT, Idler Spring
(Superseded to 7300356YP)

$20.99

$

Usually ships in 2-12 days

0

8

Snapper 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

9

Snapper 7091302

NUT, 3/8-16 Hex, GR 5 or B
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7074777

SPACER, Lift Adjust (1.08" Long)
(Superseded to 7074777YP)

$19.99

$

Usually ships in 2-12 days

0

11

Snapper 7044860

EYEBOLT, 3/8-16 x 3"
(Superseded to 7044860YP)

$7.49

$

Usually ships in 2-12 days

0

12

Snapper 7073992

SPRING, Extension
(Superseded to 7073992YP)

$28.99

$

Usually ships in 2-12 days

0

13

Snapper 7027221

BOLT, 3/8-16 x 3-1/2" Hex Head, GR 5
(Superseded to 7027221YP)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 1723806

BOSS, IDLER,YELLOW GV3036304
(Superseded to 1723806SM)

$70.99

$

Usually ships in 2-12 days

0

16

Snapper 1723805

BUSHING, SLEEVE, 3/4 ID, GV3031224
(Superseded to 1723805SM)

$12.99

$

In Stock, only 2 left!

0

17

Snapper 7400086

WELDMENT, Drive Idler

$

$

Not available

18

Snapper 7091587

WASHER, .531 I.D. Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

19

Snapper 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

20

Snapper 7100724

SET, Matched Traction Drive Belt
(Superseded to 7100724YP)

Note: (Kit contains two belts (p/n 7100522)

$108.99

$

In Stock, only 1 left!

0

21

Snapper 7100522

BELT, HA Sect., 54.48" effective length
(Superseded to 7100724YP)

Note: 4L Traction Drive

$108.99

$

In Stock, only 1 left!

0

22

Snapper 7017853

TRAY, Battery (Polypropylene)
(Superseded to 7017853YP)

$24.99

$

Usually ships in 2-12 days

0
