NZMXL 30614 KH (7800088) - Snapper 61" Zero-Turn Mower, 30hp Kohler REAR CHASSIS, PUMPS & PULLEYS Parts Diagram

61" Zero-Turn Mower, 30hp Kohler

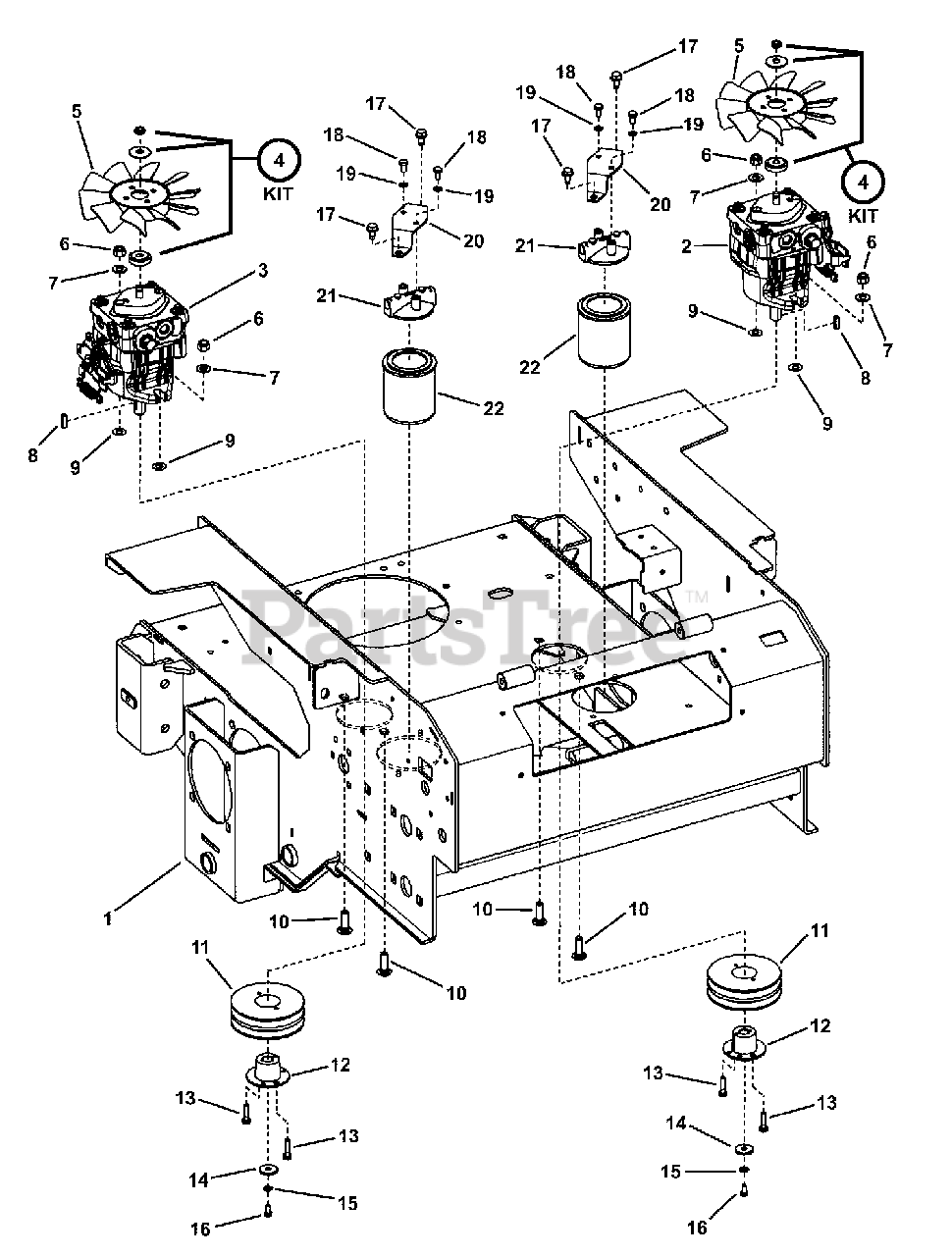

REAR CHASSIS, PUMPS & PULLEYS Parts Diagram

  • Title

1

Snapper 7400015

WELDMENT, Rear Chassis
(Superseded to 7400015YP)

$2108.99

$

Usually ships in 2-12 days

0

2

Snapper 7100439

PUMP, Hydro-Gear BDP-12A W/ RTN
(Superseded to 7100439YP)

Note: left-hand pump

$1196.99

$

Usually ships in 2-12 days

0

3

Snapper 7100438

PUMP, Hydro-Gear BDP-12A W/ RTN
(Superseded to 7100438YP)

Note: right-hand pump

$1595.99

$

Usually ships in 2-12 days

0

4

Snapper 7074738

* KIT, Fan Hub
(Superseded to 7074738YP)

Note: (Hydro Gear p/n 70632) for BDP-10A Pump w/Thru Shaft

$

$

Not available

5

Snapper 7074968

FAN, 7" Nylon, Counter-Clockwise
(Superseded to 7074968YP)

$37.99

$

In Stock, Qty 5

0

6

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7027199

KEY, M5 x M20
(Superseded to 7027199YP)

$3.49

$

In Stock, Qty 5

0

9

Snapper 7013847

BOLT RETAINER, 3/8"
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7027181

BOLT, 3/8-16 x 1-1/4" Short Neck Carriage GR 5

$

$

Not available

11

Snapper 7041330

PULLEY, 4.25 O.D. x 1.375 OA x "H" Tapered Bore
(Superseded to 7041330YP)

Note: double pump

$128.99

$

Usually ships in 2-12 days

0

12

Snapper 7071831

PULLEY, "D" Bushing x 15mm Bore
(Superseded to 7071831YP)

$

$

Not available

13

Snapper 7090548

SCREW, 1/4-20 x 1" Hex Head Cap GR 5
(Superseded to 703820)

$3.99

$

In Stock, only 4 left!

0

14

Snapper 7091627

WASHER, 1/4 x 1 x 1/8" Flat
(Superseded to 7091627YP)

$4.99

$

In Stock, Qty 11

0

15

Snapper 7027223

WASHER, 1/4" Split Lock
(Superseded to 7027223SM)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7091835

SCREW, M6 1.0X12MM, Hex Head, CZ
(Superseded to 7091835YP)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

18

Snapper 7090071

SCREW, 1/4-20 x 1/2" Hex Head Cap, GR 5
(Superseded to 703818)

$3.49

$

In Stock, only 1 left!

0

19

Snapper 7090052

WASHER, 1/4" Split Lock
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

20

Snapper 7075919

BRACKET, Filter
(Superseded to 7075919YP)

$21.99

$

Usually ships in 2-12 days

0

21

Snapper 5023096

FILTER HEAD
(Superseded to 5023096SM)

$52.99

$

Usually ships in 2-12 days

0

22

Snapper 1719168

FILTER, OIL
(Superseded to 1719168X1)

$26.99

$

In Stock, Qty 20+

0
