NZMXL 30614 KH (7800088) - Snapper 61" Zero-Turn Mower, 30hp Kohler ELECTRICAL COMPONENTS Parts Diagram

61" Zero-Turn Mower, 30hp Kohler

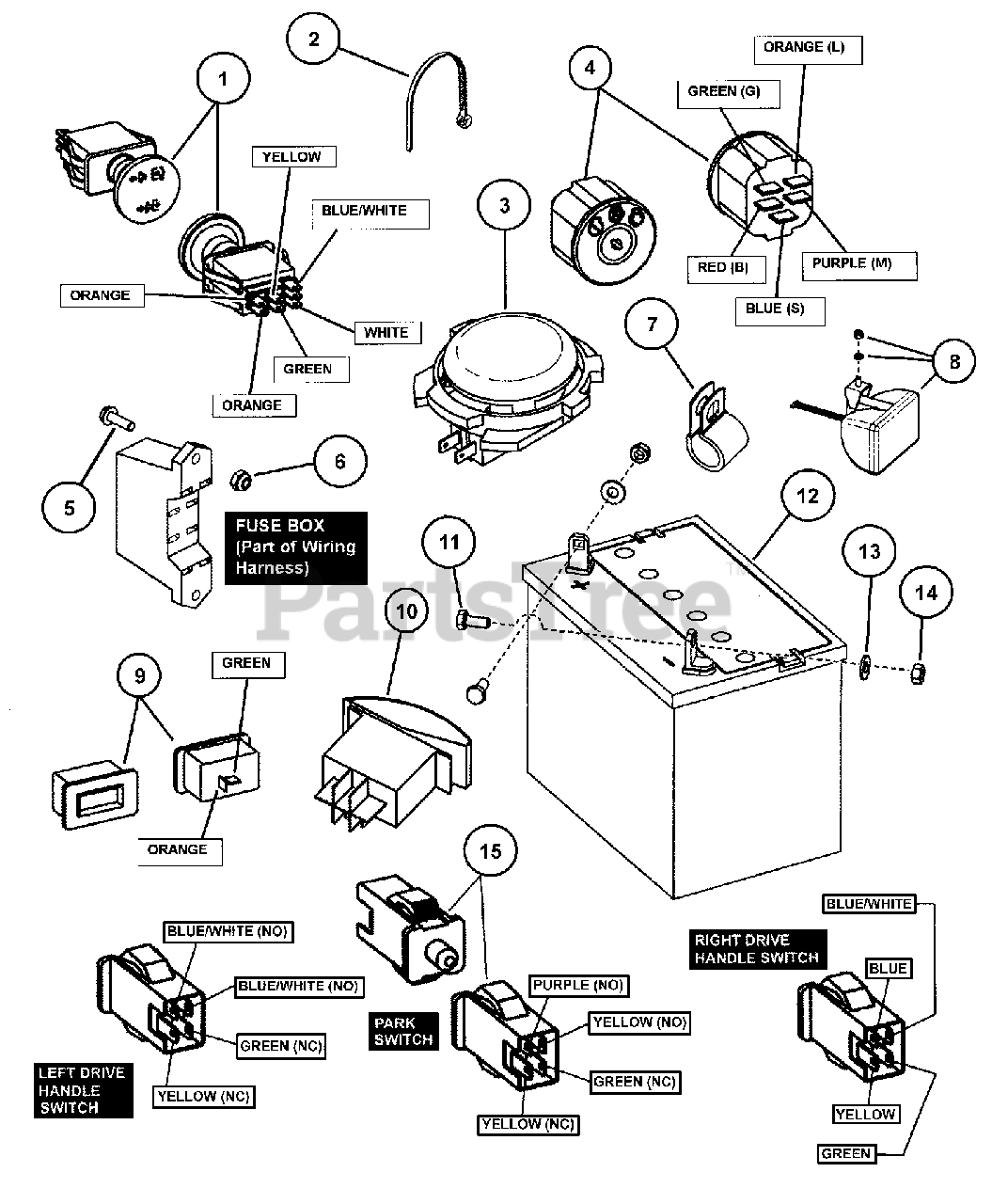

ELECTRICAL COMPONENTS Parts Diagram

  • Title

1

Snapper 7075132

* SWITCH, PTO, Yellow
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

2

Snapper 7012080

CABLE TIE, 7" Long
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

3

Snapper 7023354

S WITCH, Seat, NC
(Superseded to 7023354YP)

Note: also shown on SEAT ASSEMBLY page

$12.99

$

In Stock, Qty 20+

0

4

Snapper 7072684

*SWITCH, Ignition
(Superseded to 7072684YP)

Note: Indak p/n D473A

$31.99

$

In Stock, only 1 left!

0

5

Snapper 7091240

SCREW, #10-32 x 5/8" Hex Washer Self-Tap
(Superseded to 7091240YP)

$4.99

$

In Stock, only 1 left!

0

6

Snapper 7090376

NUT, #10-32 Nyloc
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7015861

CLIP, Harness
(Superseded to 7015861SM)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7100527

HEADLIGHT, w/Connectors
(Superseded to 7100527YP)

$185.99

$

Usually ships in 2-12 days

0

9

Snapper 7074796

* HOUR METER w/Flash Alerts
(Superseded to 1731184SM)

Note: Sendec Corp. Model No. 804-204

$64.99

$

In Stock, only 1 left!

0

10

Snapper 7035659

* SWITCH, Lights
(Superseded to 7035659YP)

$18.99

$

Usually ships in 2-12 days

0

11

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap GR 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

12

Snapper 7075911

BATTERY, 11 Plate 375CCA- Wet

$

$

Not available

13

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

15

Snapper 7022886

SWITCH, DP NO/NC Snap-In
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

16

Snapper 7073406

KEY SET, Ignition (not shown)
(Superseded to 1717163SM)

Note: qty. 2 keys per set

$8.99

$

In Stock, Qty 20+

0
