NZMX 32734 BV (7800073) - Snapper 73" Zero-Turn Mower, 32hp Briggs & Stratton ROLL BAR PROTECTIVE STRUCTURE Parts Diagram

73" Zero-Turn Mower, 32hp Briggs & Stratton

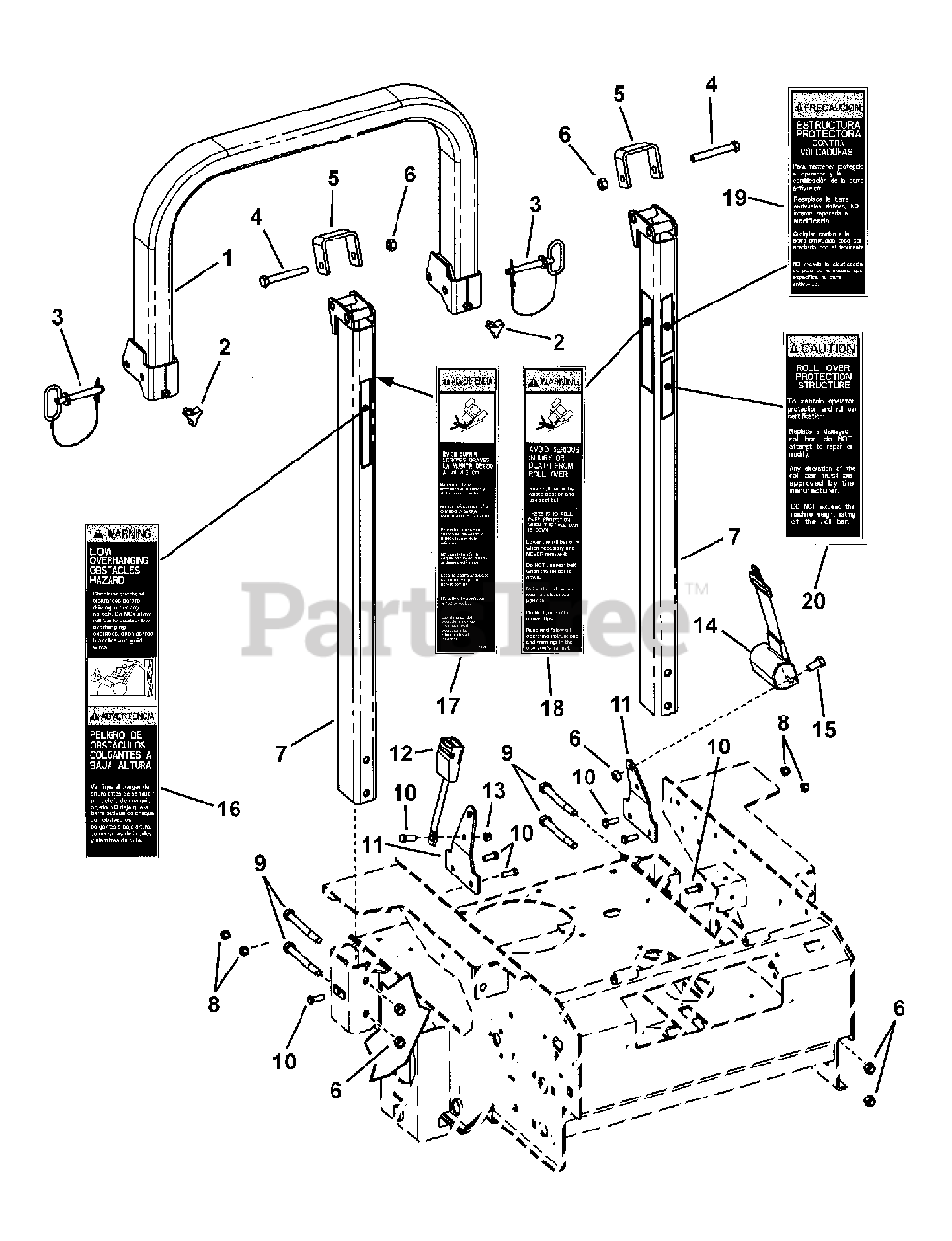

ROLL BAR PROTECTIVE STRUCTURE Parts Diagram

  • Title
1

Snapper Pro 7100675

WELDMENT, Loop

$

$

Currently unavailable

2

Snapper Pro 7100099

STAR KNOB (5/16-18 thread)
(Superseded to 7100099YP)

$11.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7100095

PIN, Hinge (ROPS)
(Superseded to 7100095YP)

$15.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7029355

BOLT, 1/2-13 x 3-3/4" Hex Head Cap
(Superseded to 7029355YP)

$5.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7300446

BRACKET, ROPS Stop, NZMX
(Superseded to 7300446YP)

$29.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7090975

NUT, 1/2-13 Hex Center Lock, GR 5

Note: or 7091894

$

$

Currently unavailable

7

Snapper Pro 7100674

WELDMENT, Post
(Superseded to 7100674YP)

$387.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

9

Snapper Pro 7900033

BOLT, 1/2-13 x 4-1/2" Hex Head, GR 5
(Superseded to 7900033YP)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

11

Snapper Pro 7300314

PLATE, Seat Belt
(Superseded to 7300314YP)

$18.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 7100228

SEAT BELT, w/Metal Strap
(Superseded to 7100228YP)

$42.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

14

Snapper Pro 7100227

RETRACTER, Seat Belt

$

$

Currently unavailable

15

Snapper Pro 7090646

SCREW, 1/2-13 x 1" Hex Head Cap, GR 5

$

$

Not available

16

Snapper Pro 7100284

DECAL, ROPS Overhang
(Superseded to 7100284YP)

$5.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 7100173

DECAL, Warning ROPS (Spanish)
(Superseded to 7100173YP)

$5.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 7100172

DECAL, Warning ROPS
(Superseded to 7100172YP)

$5.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 7100171

DECAL, Caution ROPS (Spanish)
(Superseded to 7100171YP)

$5.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 7100170

DECAL, Caution ROPS
(Superseded to 7100170YP)

$5.99

$

Usually ships in 2-12 days

0
