NZMX 30614 KH (7800088) - Snapper 61" Zero-Turn Mower, 30hp Kohler WHEEL MOTOR ASSEMBLY Parts Diagram

61" Zero-Turn Mower, 30hp Kohler

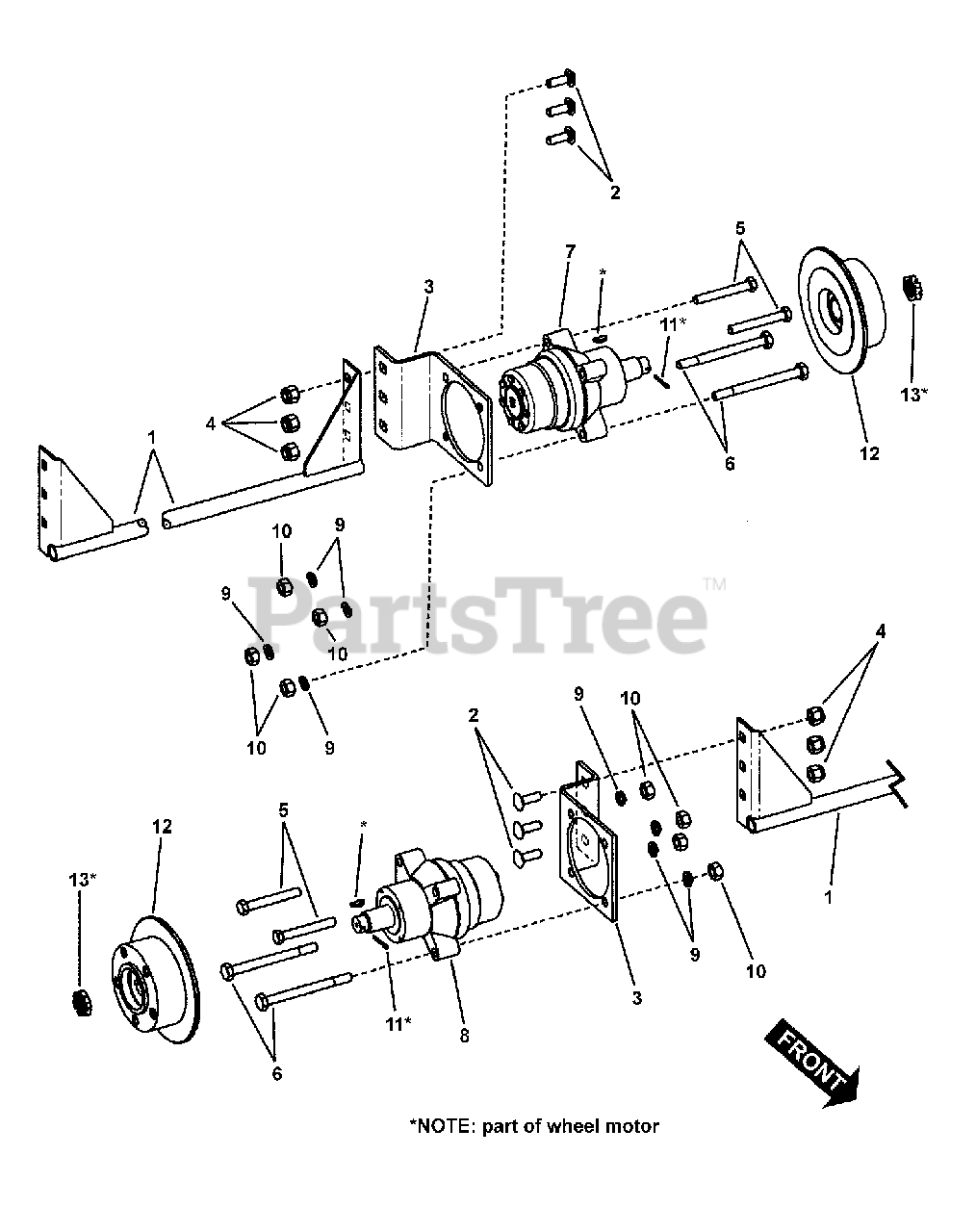

WHEEL MOTOR ASSEMBLY Parts Diagram

  • Title

1

Snapper Pro 7400074

WELDMENT, Rear Support
(Superseded to 7400074YP)

$139.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7090768

BOLT, 1/2-13 x 1-1/2" Square Neck Carriage, GR 5
(Superseded to 7090768YP)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 7075443

BRACKET, Wheel Motor Support

$

$

Currently unavailable

4

Snapper Pro 7091325

NUT, 1/2-13 Hex Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

5

Snapper Pro 7029355

BOLT, 1/2-13 x 3-3/4" Hex Head Cap
(Superseded to 7029355YP)

$5.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7092087

BOLT, 1/2-13 x 6" Hex Head Cap GR 5
(Superseded to 7092087YP)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 7100299

WHEEL MOTOR, LH HGM 18E-3052
(Superseded to 5022975L)

$1658.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7100300

WHEEL MOTOR, RH HGM 18E-3056
(Superseded to 5022975R)

$1880.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7091322

WASHER, 1/2" Split Lock
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

10

Snapper Pro 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

11

Snapper Pro 7091809

COTTER PIN, 1/8 x 1-1/4"
(Superseded to 7091809YP)

Note: included as part of wheel motor

$4.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 7071819

DRUM, Brake (Ausco)
(Superseded to 7600098YP)

Note: shown also in DRIVE TIRE & WHEEL ASSEMBLY

$902.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7092083

CASTLE NUT, 1-14 UNF, GR B

Note: included as part of wheel motor

$

$

Currently unavailable
