NZMX 30614 KH (7800088) - Snapper 61" Zero-Turn Mower, 30hp Kohler TWIN STICK CONTROL ASSEMBLY Parts Diagram

61" Zero-Turn Mower, 30hp Kohler

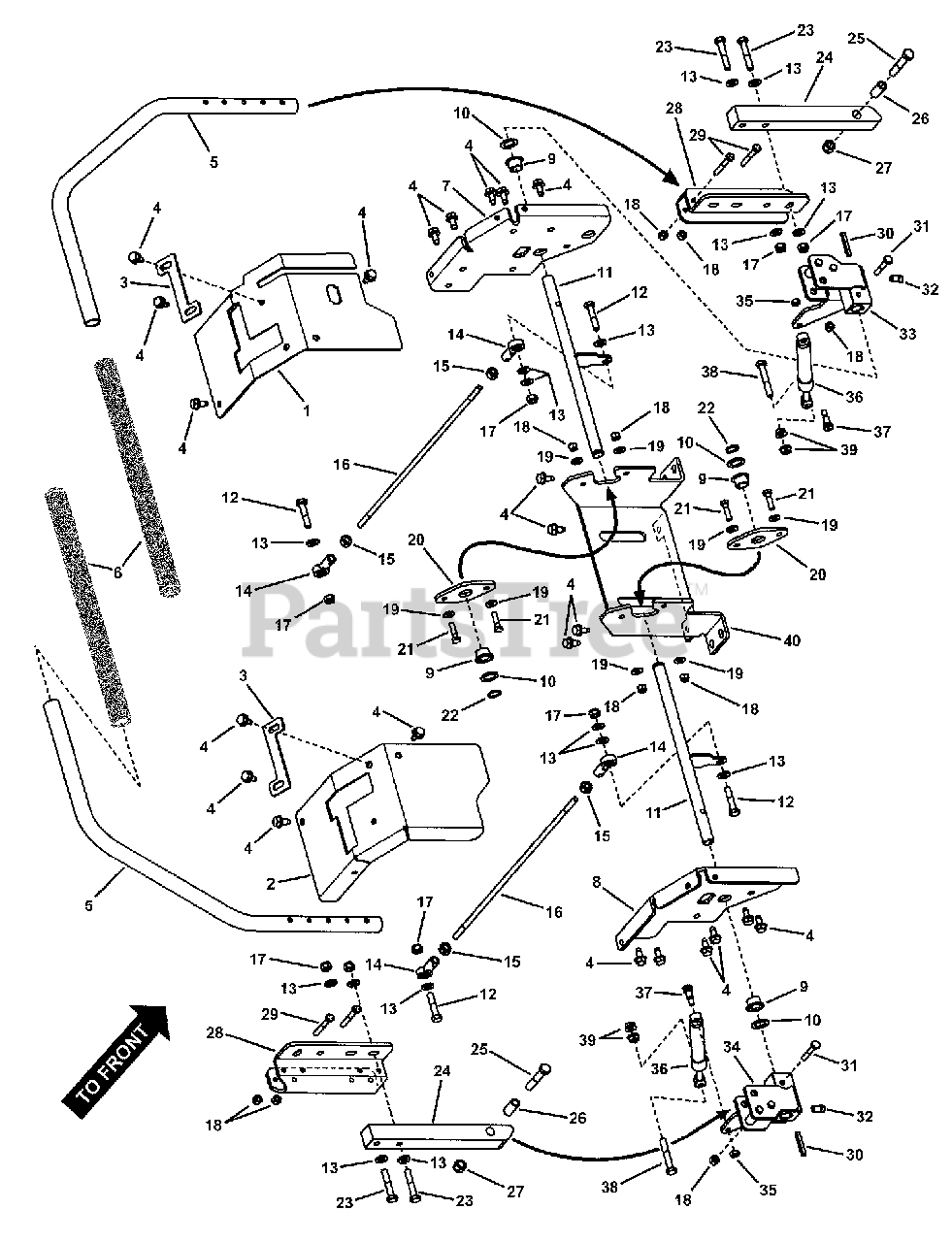

TWIN STICK CONTROL ASSEMBLY Parts Diagram

  • Title

1

Snapper Pro 7300077

LIMITER BRKT, LH
(Superseded to 7300077YP)

$37.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7300076

LIMITER BRKT, Twin Stick, Right Side, LFNZM
(Superseded to 7300076YP)

$36.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7074964

BRACKET, Speed Control
(Superseded to 7074964YP)

$4.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

5

Snapper Pro 7100556

HANDLEBAR, Twin Stick, LFNZM
(Superseded to 7100556YP)

$66.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7100051

FOAM GRIP, Handle
(Superseded to 7100051YP)

$10.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7300075

BUSHING MOUNT PLATE, LH
(Superseded to 7300075YP)

$54.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7300074

BUSHING MOUNT PLATE, Right Side, LFNZM
(Superseded to 7300074YP)

$61.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7072934

BUSHING, Teflon Impregnated

$7.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7091628

WASHER, .64 I.D. x .99 O.D. x .05 Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, only 3 left!

0

11

Snapper Pro 7400053

WELDMENT, Shaft Twin
(Superseded to 7400053YP)

$58.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR 5

$

$

Not available

13

Snapper Pro 7090188

WASHER, 5/16" Flat

$

$

Not available

14

Snapper Pro 7027139

ROD END (5/16-24 thread)

$

$

Currently unavailable

15

Snapper Pro 7091297

NUT, 5/16-24 Hex, GR 5 or B
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

16

Snapper Pro 7100294

LINKAGE, Pump Control (5/16-24 threads)
(Superseded to 7100294YP)

$23.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

19

Snapper Pro 7091294

WASHER, 1/4" Flat

$

$

Not available

20

Snapper Pro 7073061

MOUNTING PLATE, Left Hand Bearing

$

$

Currently unavailable

21

Snapper Pro 7090548

SCREW, 1/4-20 x 1" Hex Head Cap GR 5
(Superseded to 703820)

Note: or 7027230

$3.99

$

In Stock, only 4 left!

0

22

Snapper Pro 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 2 left!

0

23

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

24

Snapper Pro 7100484

MOUNTING ARM, Twin Stick
(Superseded to 7100484YP)

$107.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 7090588

SCREW 3/8-16 x 2" Hex Head Cap, GR 5
(Superseded to 703589)

Note: or 7091305

$4.49

$

In Stock, only 1 left!

0

26

Snapper Pro 7075029

SPACER, .498 O.D. x 1.010" long

$

$

Not available

27

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

28

Snapper Pro 7071825

BRACKET, Handle Adjustment
(Superseded to 7071825YP)

$20.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 7091003

SCREW, 1/4-20 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 7091003YP)

Note: or 7091813

$3.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 7091803

KEY, 3/16" Square x 1-1/2"

$

$

Not available

31

Snapper Pro 7079577

SCREW, 1/4-20 x 1-1/2" Hex Head Cap GR 5

$

$

Not available

32

Snapper Pro 7090848

SET SCREW, 5/16-18 x 1/2" Square Head Cup Point
(Superseded to 7090848SM)

$10.99

$

In Stock, only 1 left!

0

33

Snapper Pro 7400032

MOUNTING HUB WELDMENT, T-Stick LH
(Superseded to 7400032YP)

$165.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 7400031

MOUNTING HUB WELDMENT, T-Stick RH
(Superseded to 7400031YP)

$165.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 7090372

NUT, 1/4-20 Hex Center Lock

$

$

Not available

36

Snapper Pro 5022978

DAMPENER, Hydraulic
(Superseded to 5103511YP)

$62.99

$

In Stock, Qty 16

0

37

Snapper Pro 7900007

SCREW, Shoulder Socket Head
(Superseded to 7900007YP)

Note: (1/4-20 thread)

$5.49

$

Usually ships in 2-12 days

0

38

Snapper Pro 5025011X16

BOLT, 5/16-18 X 2", GD5
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

39

Snapper Pro 7090585

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

40

Snapper Pro 7300144

CENTER BRACKET, Joystick
(Superseded to 7300144YP)

$79.99

$

Usually ships in 2-12 days

0
