NZMX 30614 KH (7800088) - Snapper 61" Zero-Turn Mower, 30hp Kohler HOSE & CONNECTOR ASSEMBLY Parts Diagram

61" Zero-Turn Mower, 30hp Kohler

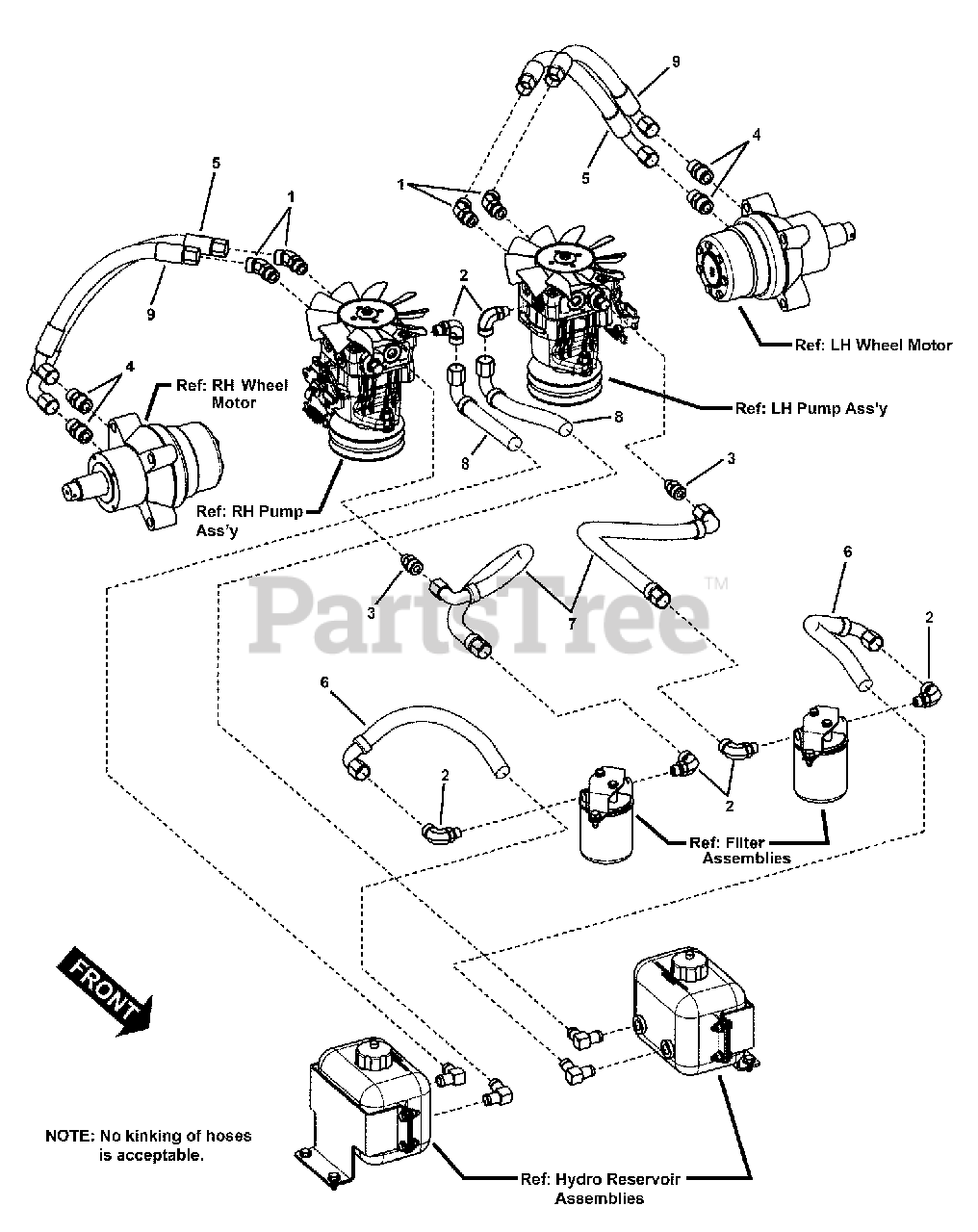

HOSE & CONNECTOR ASSEMBLY Parts Diagram

  • Title
1

Snapper Pro 7075055

CONNECTOR, 45-Degree Hydraulic (Parker # V5OLO-S)
(Superseded to 7075055YP)

$26.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7075056

CONNECTOR, 90-Degree Hydraulic (Parker # 8-6 C5OLO-S)
(Superseded to 7075056YP)

$26.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7075057

CONNECTOR, Straight Hydraulic (Parker # 8-6 F5OLO-S)

$

$

Currently unavailable

4

Snapper Pro 7075058

CONNECTOR, Straight Hydraulic (Parker # 8-10 F5OLO-S)

$

$

Currently unavailable

5

Snapper Pro 7075051

HOSE, 17-1/2" Hydraulic (Parker # F436BKJCJ5080808-17.5)

$

$

Currently unavailable

6

Snapper Pro 7075052

HOSE, 18-1/2" (Parker R836BKJCJ9090808-18.5)
(Superseded to 7075052YP)

$62.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7075053

HOSE, 12-1/4" (Parker # R836BKJ9NR080008-12.5)
(Superseded to 7075053YP)

$53.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7075054

HOSE, 6-1/2" (Parker # R836BKJ9NR080008-6.5)
(Superseded to 7075054YP)

$56.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7075470

HOSE, 15-1/2" Hydraulic (Parker # F436JCJ9080808-15.50)

$

$

Not available
