NZMX 30614 KH (7800088) - Snapper 61" Zero-Turn Mower, 30hp Kohler FRONT CHASSIS ASSEMBLY (Frame) Parts Diagram

61" Zero-Turn Mower, 30hp Kohler

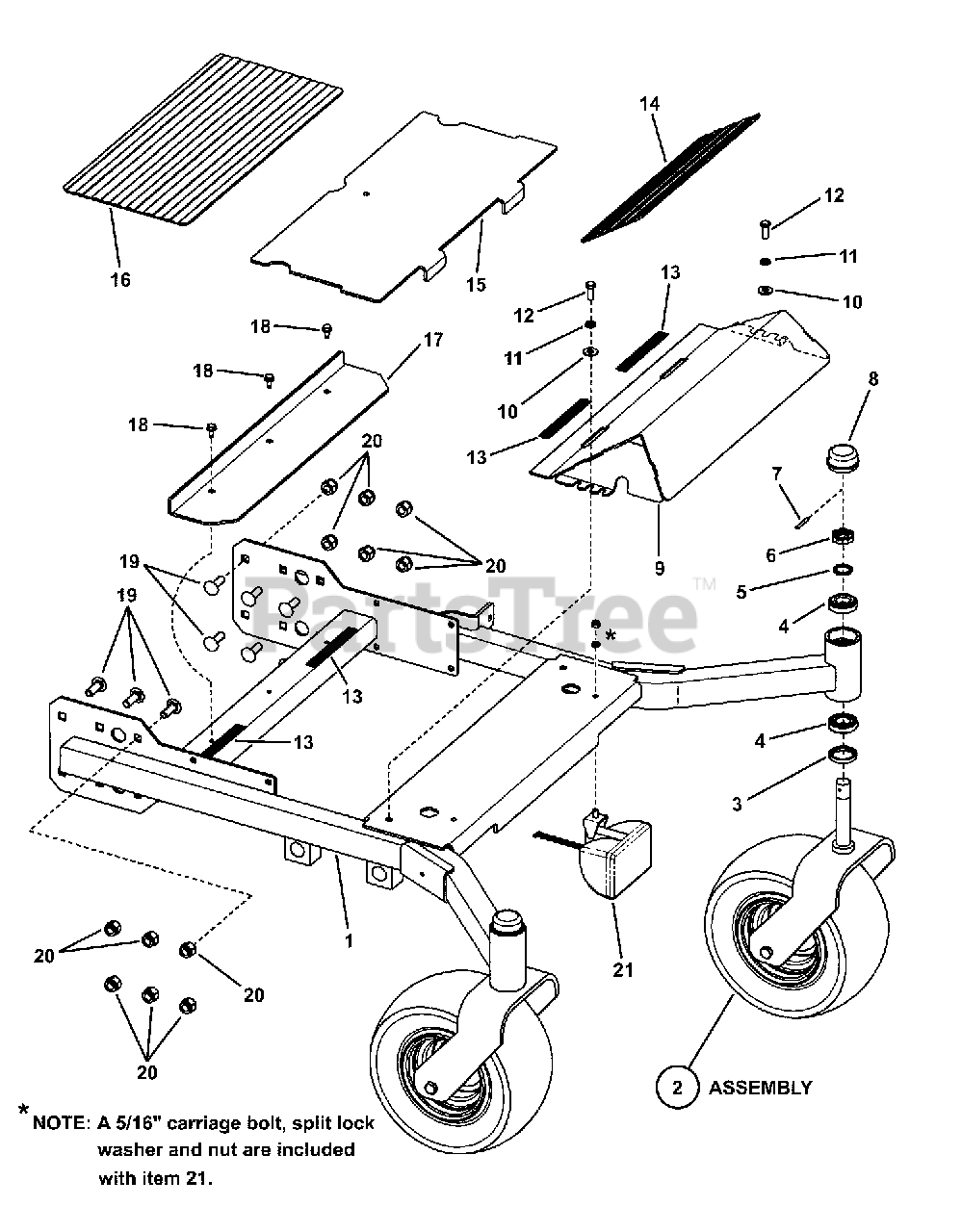

FRONT CHASSIS ASSEMBLY (Frame) Parts Diagram

  • Title
1

Snapper Pro 7400018

WELDMENT, Front Frame
(Superseded to 7400018YP)

$1880.99

$

Usually ships in 2-12 days

0

2

GROUP, Front Wheel

Note: ref: Caster Wheel Assembly Page

$

$

Not available

3

Snapper Pro 7074723

GREASE SEAL
(Superseded to 7074723YP)

$

$

Not available

4

Snapper Pro 7058554

BEARING, Tapered Roller

Note: 7074706 (tapered roller brg.) & 7074707 (inner race)

$

$

Not available

5

Snapper Pro 7029137

SPACER, Jackstaff
(Superseded to 7029137YP)

$5.49

$

In Stock, only 3 left!

0

6

Snapper Pro 7092083

CASTLE NUT, 1-1/ UNF, GR B

$

$

Currently unavailable

7

Snapper Pro 7090841

ROLL PIN, 3/16 x 1-1/2"
(Superseded to 7090841YP)

$4.49

$

In Stock, only 1 left!

0

8

Snapper Pro 7074537

CAP, Dust
(Superseded to 7074537YP)

$6.49

$

In Stock, only 2 left!

0

9

Snapper Pro 7400114

WELDMENT, Foot Pedestal
(Superseded to 7400114YP)

$239.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

12

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 1 left!

0

13

Snapper Pro 7041818

PAD, Floor Board Support
(Superseded to 7041818YP)

$10.99

$

In Stock, only 1 left!

0

14

Snapper Pro 7100275

FLOOR MAT, Top

$

$

Currently unavailable

15

Snapper Pro 7300145

FOOTPAN
(Superseded to 7300145YP)

$79.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 7100277

FOOTPAN, Mat

$

$

Currently unavailable

17

Snapper Pro 7300209

FOOT STAND, LFNZM
(Superseded to 7300209YP)

$72.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

19

Snapper Pro 7090768

BOLT, 1/2-13 x 1-1/2" Square Neck Carriage, GR 5
(Superseded to 7090768YP)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 7091325

NUT, 1/2-13 Hex Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, only 3 left!

0

21

Snapper Pro 7100527

HEADLIGHT, w/Connectors
(Superseded to 7100527YP)

Note: Also shown on Electronic Components page.

$185.99

$

Usually ships in 2-12 days

0
