NZMX 30614 KH (7800088) - Snapper 61" Zero-Turn Mower, 30hp Kohler BUMPER ASSEMBLY Parts Diagram

61" Zero-Turn Mower, 30hp Kohler

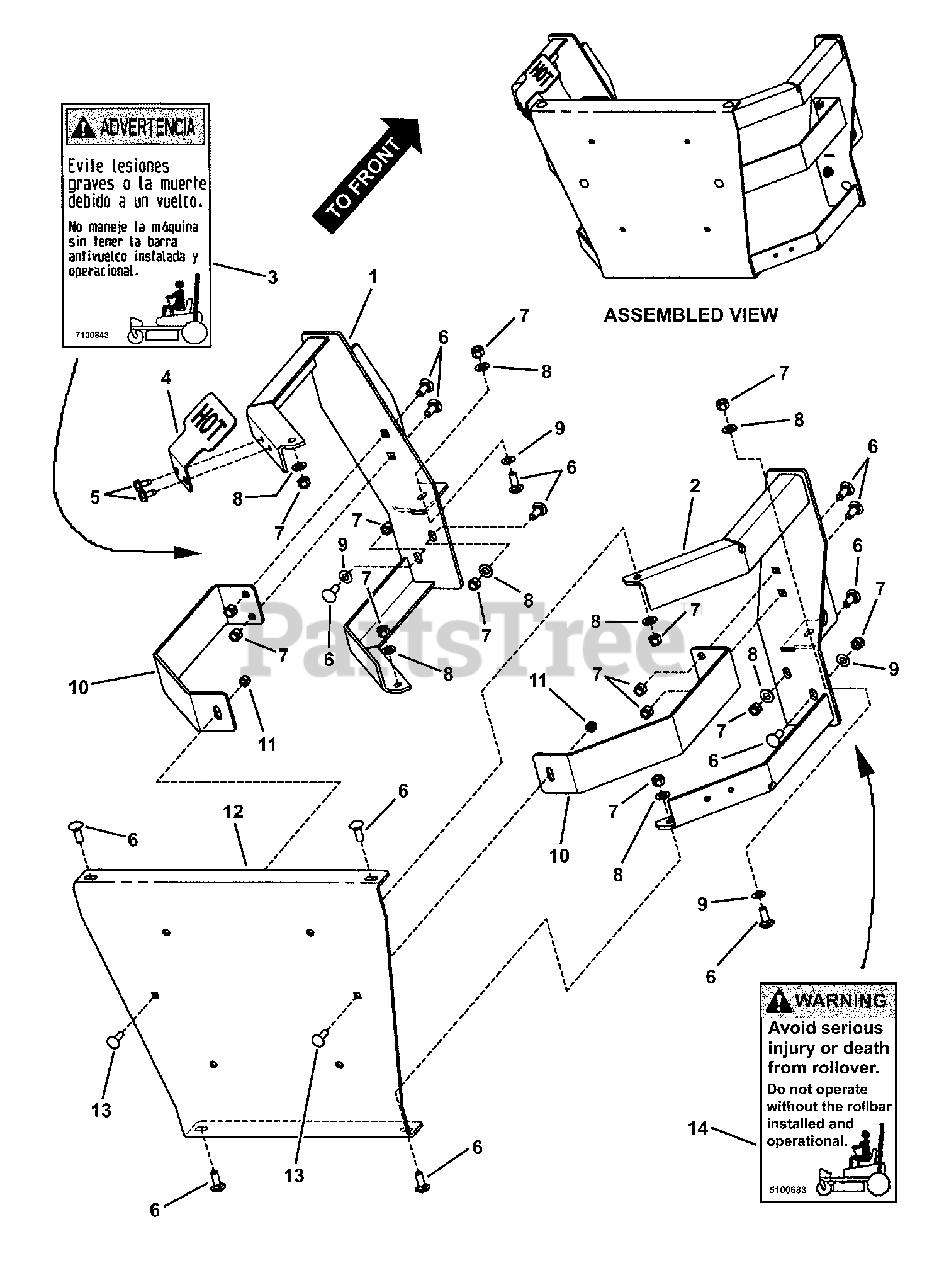

BUMPER ASSEMBLY Parts Diagram

  • Title

1

Snapper Pro 7400089

WELDMENT, Bumper LH
(Superseded to 7400089YP)

$205.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7400142

WELDMENT, Bumper

$

$

Currently unavailable

3

Snapper Pro 7100843

DECAL, Warning, Rollbar (Spanish)

$

$

Currently unavailable

4

Snapper Pro 7300437

GUARD, Hot Plate
(Superseded to 7300437YP)

Note: used on Kohler Model only

$16.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

6

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

7

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

8

Snapper Pro 7090122

WASHER, 3/8" Flat SAE

$

$

Not available

9

Snapper Pro 7013847

BOLT RETAINER, 3/8"
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 7300438

BRACKET, Bumper Support, Middle

$

$

Currently unavailable

11

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 7300219

BRACKET, Rear Bumper
(Superseded to 7300219YP)

$216.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, GR 5

$

$

Not available

14

Snapper Pro 5100683

DECAL, Warning, Rollbar
(Superseded to 5100683SM)

$7.99

$

In Stock, only 1 left!

0
