NZMJ 25613 KH (7800025) - Snapper 61" Zero-Turn Mower, 25hp Kohler HYDRO PUMP ASSEMBLIES Parts Diagram

61" Zero-Turn Mower, 25hp Kohler

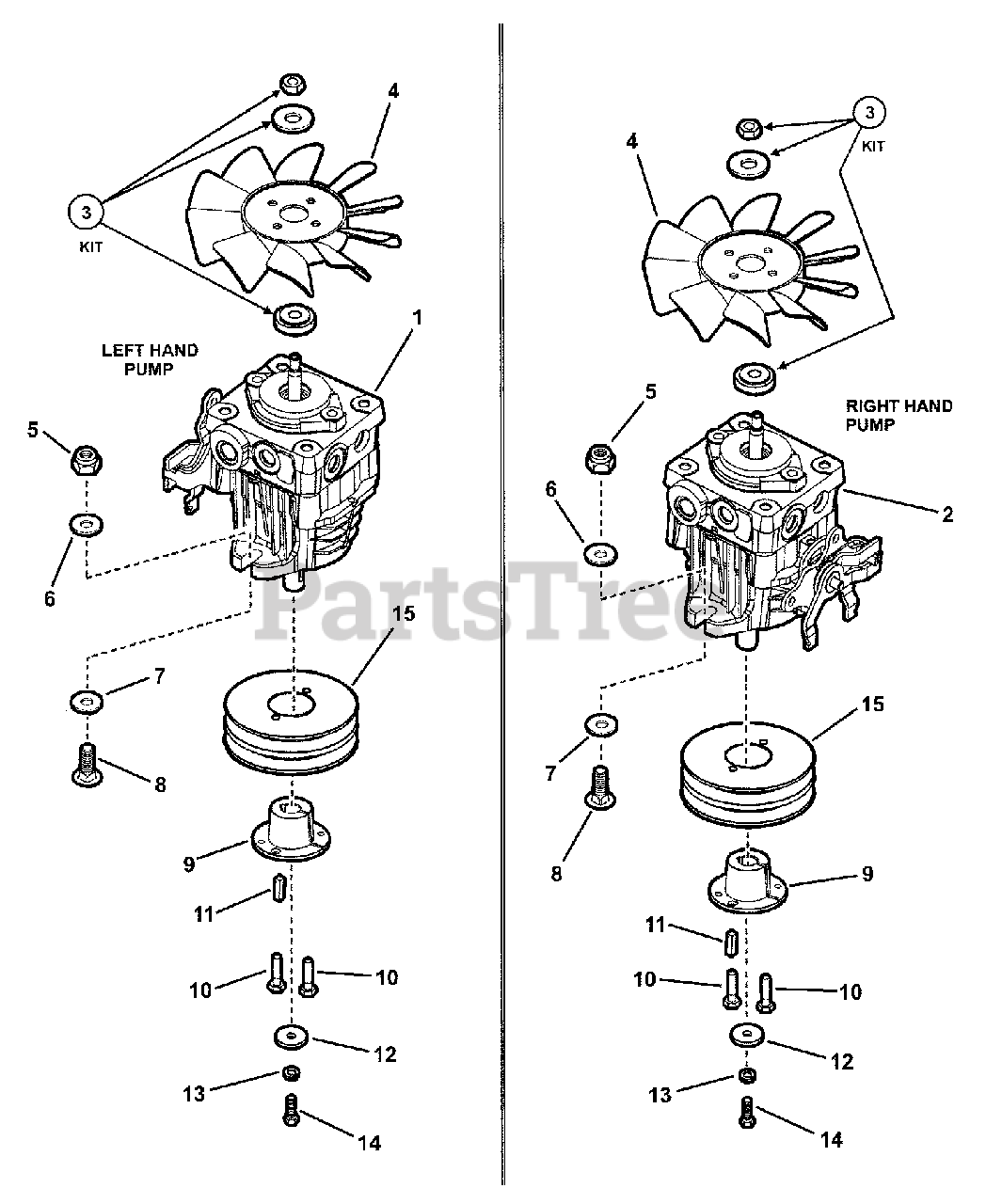

HYDRO PUMP ASSEMBLIES Parts Diagram

  • Title
1

Snapper 7075647

PUMP, Hydro-Gear (BDP-10A-334) Left Hand
(Superseded to 7075647YP)

$1003.99

$

Usually ships in 2-12 days

0

2

Snapper 7075648

PUMP, Hydro-Gear (BDP-10A-457) Right Hand
(Superseded to 7075648YP)

$1037.99

$

Usually ships in 2-12 days

0

3

Snapper 7074738

HUB KIT for BDP-10A Pump w/Thru Shaft (Incl. 1 ea. of 3 items below)
(Superseded to 7074738YP)

Note: (Hydro Gear p/n 7070632 for BDP-10A Pump w/thru shaft)

$

$

Not available

7074738_A

HUB, Fan Mount

$

$

Not available

7074738_B

WASHER, Belleville, Fan Mount

$

$

Not available

7074738_C

NUT, Hex Nyloc

$

$

Not available

4

Snapper 7074968

FAN, 7" Nylon, Counter-Clockwise
(Superseded to 7074968YP)

$37.99

$

In Stock, Qty 5

0

5

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7027181

BOLT, 3/8-16 x 1-1/4" Short Neck Carriage GR 5

$

$

Not available

9

Snapper 7071831

PULLEY, "D" Bushing x 15mm Bore
(Superseded to 7071831YP)

$

$

Not available

10

Snapper 7090548

SCREW, 1/4-20 x 1" Hex Head Cap, GR 5
(Superseded to 703820)

$3.99

$

In Stock, only 4 left!

0

11

Snapper 7027199

KEY, M5 x M20
(Superseded to 7027199YP)

$3.49

$

In Stock, Qty 5

0

12

Snapper 7091627

WASHER, .281 x 1.00 x .125 Flat
(Superseded to 7091627YP)

$4.99

$

In Stock, Qty 11

0

13

Snapper 7027223

WASHER, 1/4" Split Lock
(Superseded to 7027223SM)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7091835

SCREW, M6 1.0X12MM, Hex Head, CZ
(Superseded to 7091835YP)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7041330

PULLEY, 4.25 O.D. x 1.375 OA x "H" Tapered Bore
(Superseded to 7041330YP)

$128.99

$

Usually ships in 2-12 days

0
