NZMJ 25613 KH (7800025) - Snapper 61" Zero-Turn Mower, 25hp Kohler HOSE ASSEMBLY (61" Deck) Parts Diagram

61" Zero-Turn Mower, 25hp Kohler

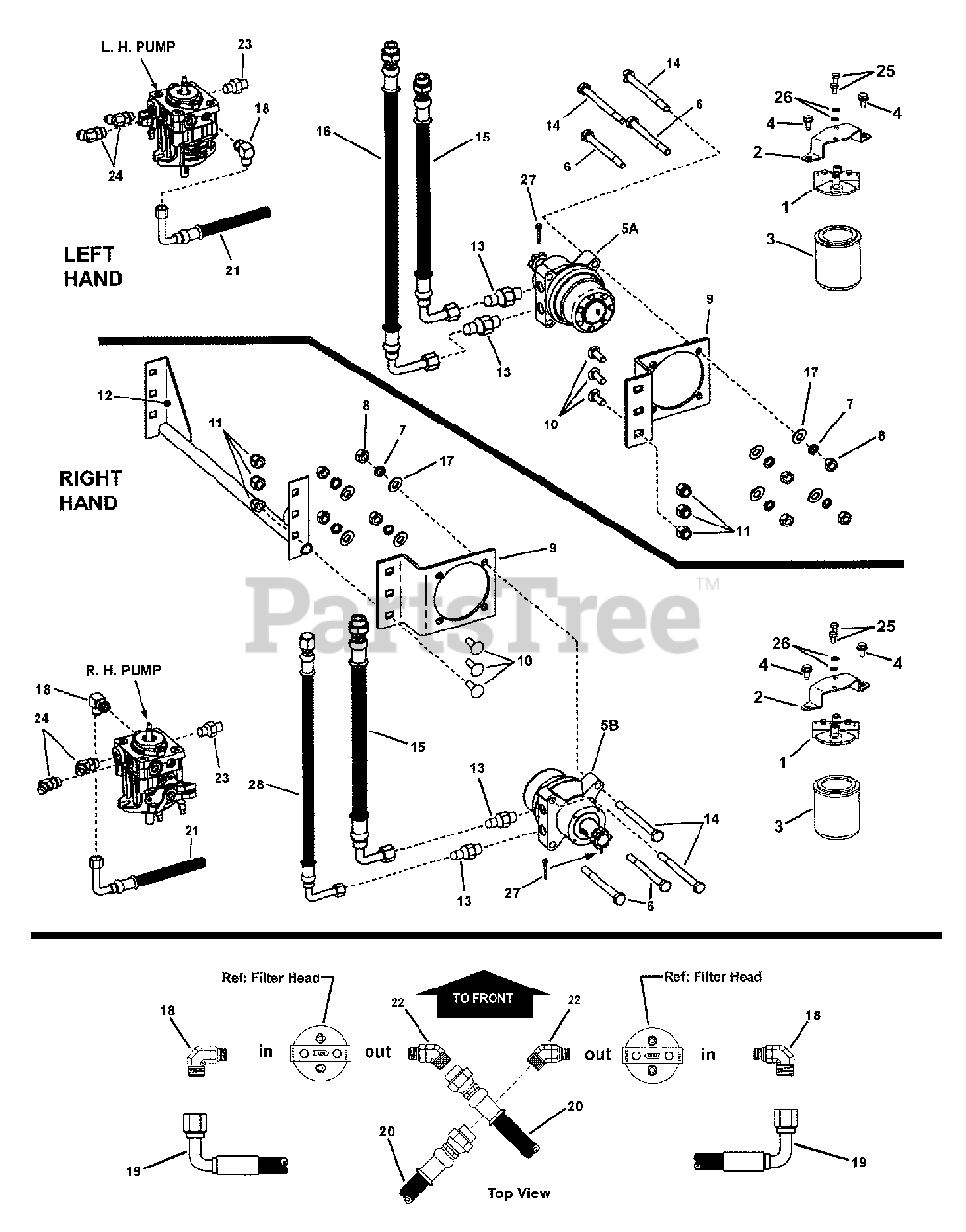

HOSE ASSEMBLY (61" Deck) Parts Diagram

  • Title

1

Snapper 5023096

FILTER HEAD
(Superseded to 5023096SM)

$52.99

$

Usually ships in 2-12 days

0

2

Snapper 7075919

BRACKET, Filter
(Superseded to 7075919YP)

$21.99

$

Usually ships in 2-12 days

0

3

Snapper 1719168

FILTER, OIL
(Superseded to 1719168X1)

$26.99

$

In Stock, Qty 20+

0

4

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

5A

Snapper 7075637

MOTOR, Hydraulic, Left Hand
(Superseded to 7075637YP)

Note: Includes Castle Nut & #502 Woodruff Key, 5/16 x 1"

$1197.99

$

Usually ships in 2-12 days

0

5B

Snapper 7075638

MOTOR, Hydraulic, Right Hand
(Superseded to 7075638YP)

Note: Includes Castle Nut & #502 Woodruff Key, 5/16 x 1"

$712.99

$

Usually ships in 2-12 days

0

6

Snapper 7092087

BOLT, 1/2-13 x 6" Hex Head Cap, GR 5
(Superseded to 7092087YP)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7091322

WASHER, 1/2" Split Lock
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

8

Snapper 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

9

Snapper 7075443

PLATE, Mounting
(Superseded to 7075443YP)

$76.99

$

Usually ships in 2-12 days

0

10

Snapper 7090768

BOLT, 1/2-13 x 1-1/2" Square Neck Carriage, GR 5
(Superseded to 7090768YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7091325

NUT, 1/2-13 Hex Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

12

Snapper 7059091

WELDMENT, Rear Crossbrace
(Superseded to 7059091YP)

$

$

Not available

13

Snapper 7075058

CONNECTOR, Straight Hydraulic (Parker # 8-10 F5OLO-S)
(Superseded to 7075058YP)

$13.99

$

Usually ships in 2-12 days

0

14

Snapper 7029355

BOLT, 1/2-13 x 3-3/4" Hex Head Cap
(Superseded to 7029355YP)

$5.99

$

Usually ships in 2-12 days

0

15

Snapper 7075470

HOSE, 15-1/2" Hydraulic (Parker # F436JCJ9080808-15.50)

$

$

Not available

16

Snapper 7075051

HOSE, 17-1/2" Hydraulic (Parker # F436BKJCJ5080808-17.5)
(Superseded to 7075051YP)

$125.99

$

Usually ships in 2-12 days

0

17

Snapper 7091587

WASHER, .531 I.D. Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

18

Snapper 7075056

CONNECTOR, 90-Degree Hydraulic (Parker # 8-6 C5OLO-S)
(Superseded to 7075056YP)

$26.99

$

Usually ships in 2-12 days

0

19

Snapper 7075052

HOSE, 18-1/2" (Parker # R836BKJCJ9090808-18.5)
(Superseded to 7075052YP)

$62.99

$

Usually ships in 2-12 days

0

20

Snapper 7075053

HOSE, 12-1/4" (Parker # R836BKJ9NR080008-12.5)
(Superseded to 7075053YP)

$53.99

$

Usually ships in 2-12 days

0

21

Snapper 7075054

HOSE, 6-1/2" (Parker # R836BKJ9NR080008-6.5)
(Superseded to 7075054YP)

$56.99

$

Usually ships in 2-12 days

0

22

Snapper 7041247

CONNECTOR, 45-Degree Hydraulic (Parker #8-6 V 50L0-S)
(Superseded to 7041247YP)

$25.99

$

Usually ships in 2-12 days

0

23

Snapper 7075057

CONNECTOR, Straight Hydraulic (Parker # 8-6 F5OLO-S)
(Superseded to 7075057YP)

$11.99

$

Usually ships in 2-12 days

0

24

Snapper 7075055

CONNECTOR, 45-Degree Hydraulic (Parker # V5OLO-S)
(Superseded to 7075055YP)

$26.99

$

Usually ships in 2-12 days

0

25

Snapper 7090071

SCREW, 1/4-20 x 1/2" Hex Head Cap, GR 5
(Superseded to 703818)

$3.49

$

In Stock, only 1 left!

0

26

Snapper 7090052

WASHER, 1/4" Split Lock
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

27

Snapper 7090297

PIN, 1/8 x 1-1/2" Cotter
(Superseded to 7091809YP)

Note: or 7091809, 1-1/4" long

$4.49

$

Usually ships in 2-12 days

0

28

Snapper 7075050

HOSE, 19-1/2" (Parker # F436BKJCJ5080808)

$

$

Not available
