NZMJ 25613 KH (7800025) - Snapper 61" Zero-Turn Mower, 25hp Kohler ENGINE SUB-ASSEMBLY Parts Diagram

61" Zero-Turn Mower, 25hp Kohler

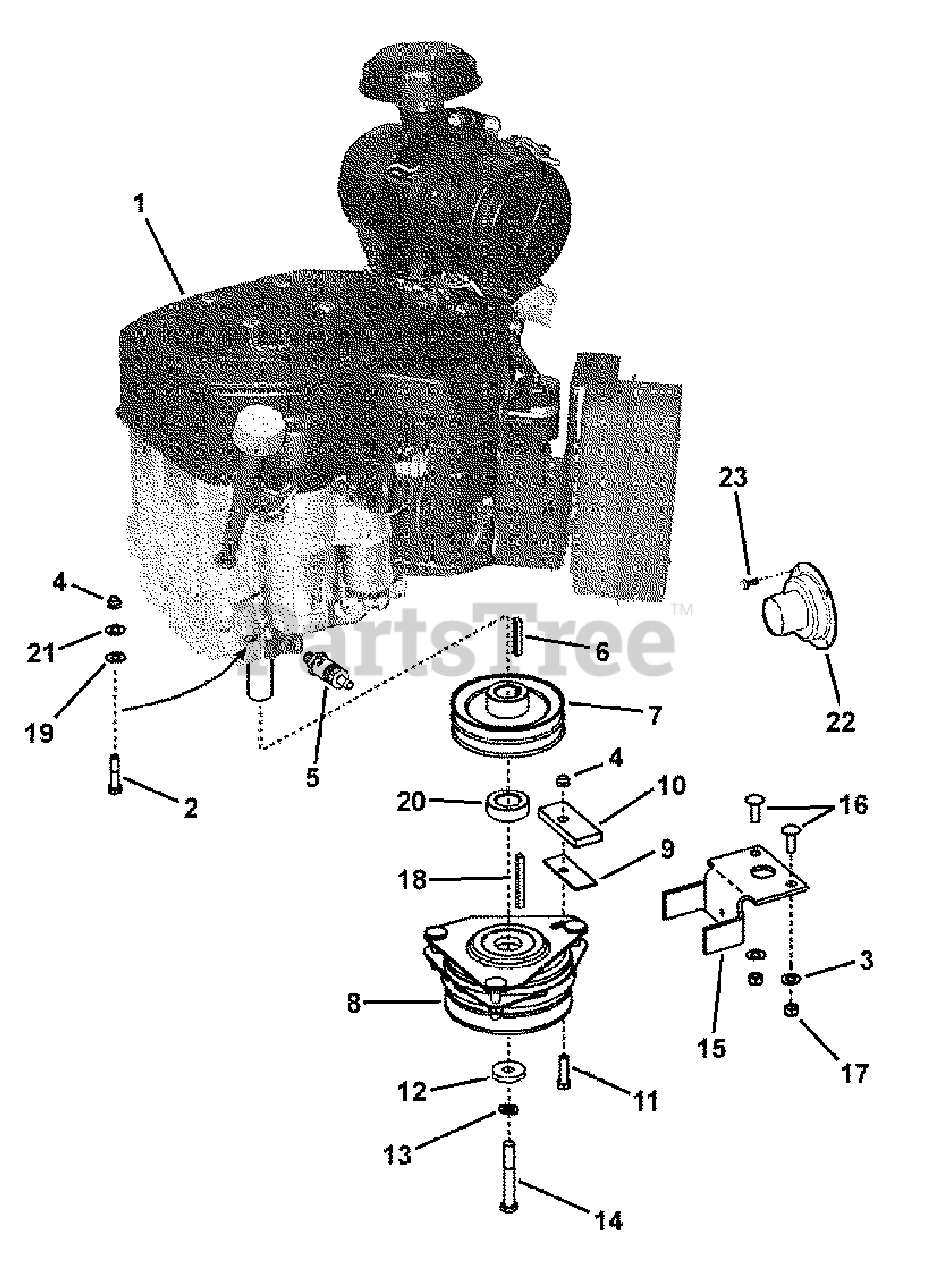

ENGINE SUB-ASSEMBLY Parts Diagram

  • Title

1

** ENGINE, 23HP Kohler (Model CV730S, Spec. PS-CV730-0022)

$

$

Not available

1

** ENGINE, 25HP Kohler (Model CV730S, Spec. PS-CV730-0023)

$

$

Not available

2

Snapper 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

3

Snapper 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper 7091706

NUT, 5/16-18 Hex Top Lock, GR B
(Superseded to 7091706SM)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 7027972

ASSEMBLY, Oil Valve
(Superseded to 7027972SM)

$24.99

$

In Stock, Qty 9

0

6

Snapper 7016755

KEY, 1/4" Square x 3/4" long
(Superseded to 7016755YP)

$4.99

$

Usually ships in 2-12 days

0

7

Snapper 7071828

PULLEY, Engine (Double)

$

$

Not available

8

Snapper 7075672

CLUTCH, Electric (Ogura GT-2.5)
(Superseded to 7075672YP)

$501.99

$

Usually ships in 2-12 days

0

9

Snapper 7034448

WASHER, Rectangular Steel
(Superseded to 7034448YP)

$33.99

$

Usually ships in 2-12 days

0

10

Snapper 7029704

BUMPER, Electric Clutch
(Superseded to 7029704YP)

$23.99

$

Usually ships in 2-12 days

0

11

Snapper 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7075082

WASHER, .468 x 1.85 x .25 Flat
(Superseded to 7075082YP)

$0.00

$

Usually ships in 2-12 days

0

13

Snapper 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 7092071

SCREW, 7/16-20 x 2-1/2" Hex Head Cap, GR 5 (w/Nyloc Patch)
(Superseded to 7092071YP)

$4.49

$

In Stock, only 2 left!

0

15

Snapper 7034829

BRACKET, Clutch
(Superseded to 7034829YP)

$33.99

$

Usually ships in 2-12 days

0

16

Snapper 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

17

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7017033

KEY, 1/4" Square x 2-1/4" Long
(Superseded to 7017033YP)

$5.49

$

In Stock, only 4 left!

0

19

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7025071

SPACER, Clutch
(Superseded to 7025071YP)

$47.99

$

In Stock, only 1 left!

0

21

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

22

Snapper 7075734

OUTLET, Muffler

$

$

Not available

23

Snapper 7091581

SCREW, # 8-18 x 1/2" Hex Washer Head Self-Tap
(Superseded to 7091581YP)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 7092044

NUT, M8 x 1.25 Hex (not shown)
(Superseded to 7092044YP)

Note: used on NZMJ23523KH only

$2.99

$

Usually ships in 2-12 days

0

25

Snapper 7091315

WASHER, 5/16" Split Lock (not shown)
(Superseded to 703116)

Note: used on NZMJ23523KH only

$3.49

$

In Stock, Qty 20+

0
