NZMJ 25612 KH (7085678) - Snapper 61" Zero-Turn Mower, 25hp Kohler SEAT ASSEMBLY Parts Diagram

61" Zero-Turn Mower, 25hp Kohler

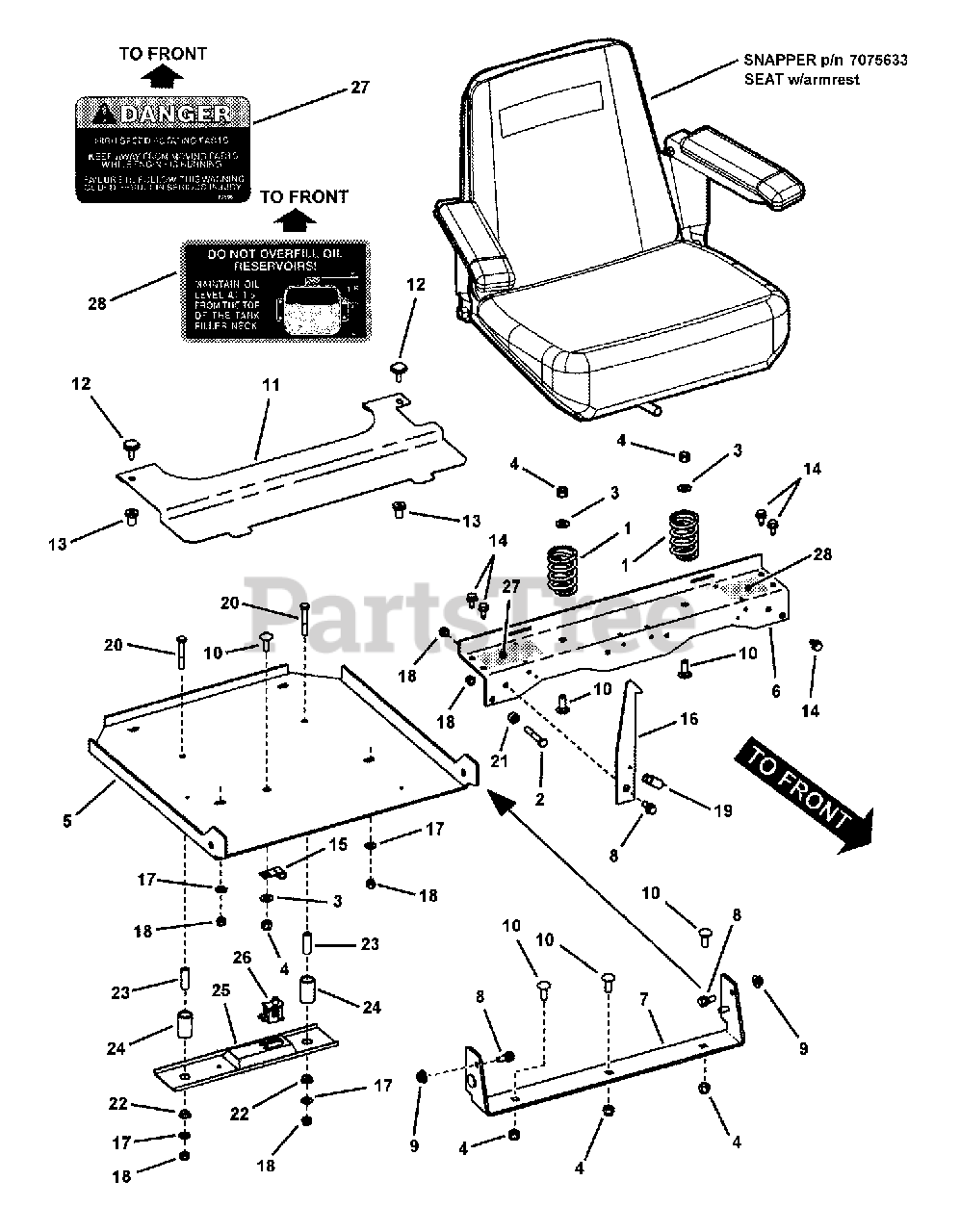

SEAT ASSEMBLY Parts Diagram

  • Title

Snapper Pro 7075633

SEAT ASSY (Seats, Inc. p/n 907 EVC order parts from 1-800-767-3287)
(Superseded to 7075633YP)

Note: (Incl. angle brackets, seat pan, cushions, armrests, adjusters & seat switch)

$604.99

$

Usually ships in 2-12 days

0

1

Snapper Pro 7074218

SPRING, Compression- Seat Support
(Superseded to 7074218SM)

$

$

Not available

2

Snapper Pro 7090368

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

3

Snapper Pro 7090122

WASHER, 3/8" Flat

$

$

Not available

4

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

5

Snapper Pro 7075419

SEAT PAN

$

$

Not available

6

Snapper Pro 7074673

CROSSMEMBER, Seat

$

$

Not available

7

Snapper Pro 7058546

WELDMENT, Hinge Bracket
(Superseded to 7058546YP)

$85.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7015761

SHOULDER BOLT, 5/16-18

$5.49

$

In Stock, only 2 left!

0

9

Snapper Pro 7090951

NUT, 5/16-18 Large Flange Hex Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

10

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

11

Snapper Pro 7074740

GUARD, Fan

$

$

Not available

12

Snapper Pro 7023341

KNOB, 1/4-20 x 3/4" Thread

$7.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7091909

WELL-NUT, 1/4-20 x 53/64"
(Superseded to 7091909YP)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

15

Snapper Pro 7035638

CLIP, Open J 3/8 Cushioned
(Superseded to 7035638YP)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 7075616

LATCH, Seat
(Superseded to 7075616YP)

$11.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 7090188

WASHER, 5/16" Flat

$

$

Not available

18

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 7026292

SPRING, Extension
(Superseded to 7026292YP)

$11.99

$

In Stock, only 3 left!

0

20

Snapper Pro 5025011X16

BOLT, 5/16-18 X 2", GD5
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 7028620

SPACER, .340 I.D.x .63 O.D. x .310 Thick
(Superseded to 7028620SM)

$4.49

$

In Stock, only 1 left!

0

22

Snapper Pro 7022793

BUSHING, Seat
(Superseded to 7022793YP)

$2.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 7022794

SPACER

$

$

Currently unavailable

24

Snapper Pro 7036492

SPRING, Compression
(Superseded to 7036492YP)

$7.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 7033362

HOLDER, Seat Switch
(Superseded to 7033362YP)

$23.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 7023354

SWITCH, Seat, NC
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

27

Snapper Pro 7073596

DECAL, Warning
(Superseded to 7073596YP)

$6.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 7075433

DECAL, Oil Reservoir Overfill Warning
(Superseded to 7075433YP)

$5.99

$

Usually ships in 2-12 days

0
