NZMJ 25611 KH (7085628) - Snapper 61" Zero-Turn Mower, 25hp Kohler REAR FRAME & TANK BRACKETS Parts Diagram

61" Zero-Turn Mower, 25hp Kohler

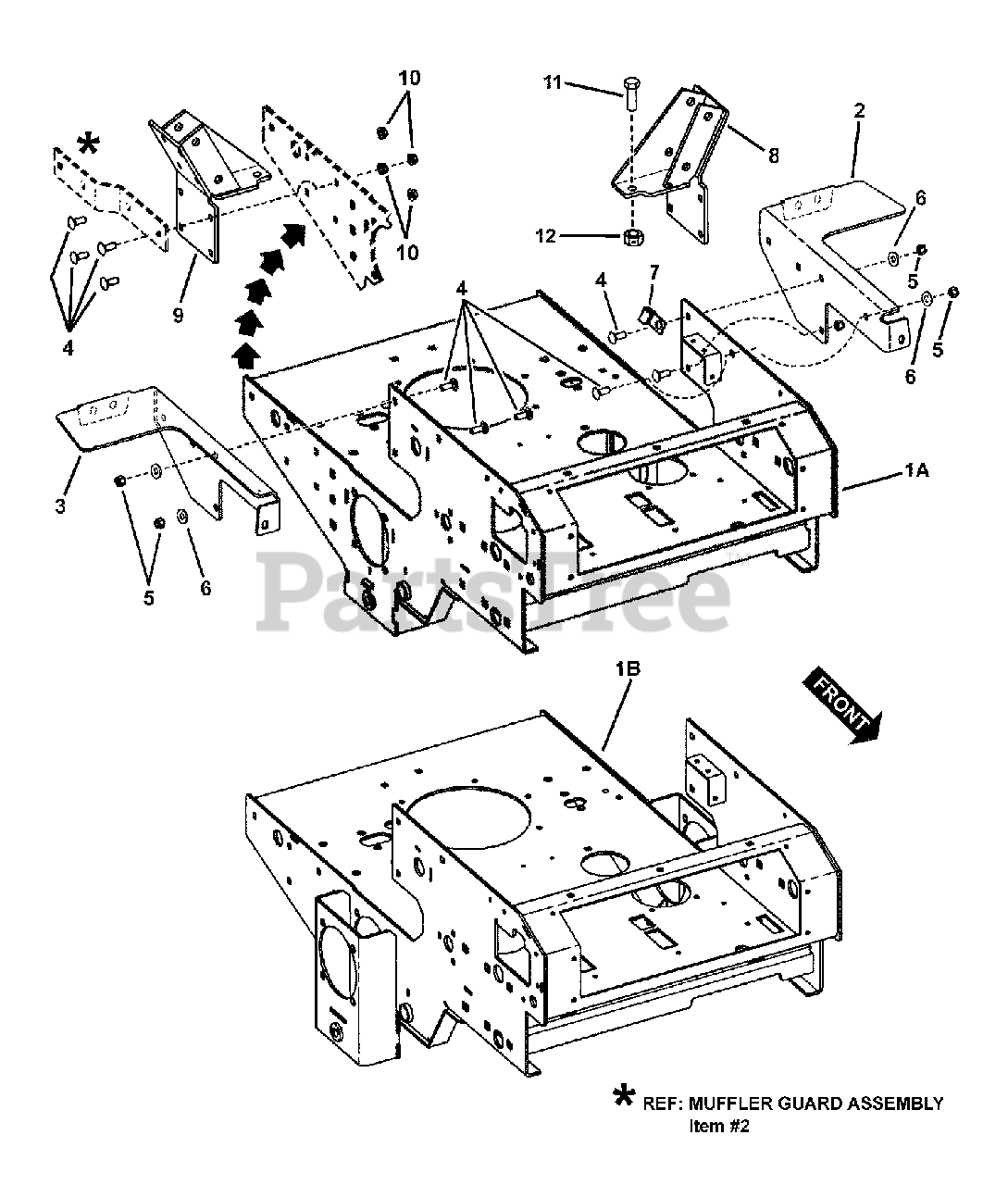

REAR FRAME & TANK BRACKETS Parts Diagram

  • Title

1A

Snapper Pro 7044846

WELDMENT, Rear Frame (52" Deck)
(Superseded to 7044846YP)

$712.99

$

Usually ships in 2-12 days

0

1B

Snapper Pro 7044816

WELDMENT, Rear Frame (61" Deck)
(Superseded to 7044816YP)

$968.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7053476

WELDMENT, Left Hand Fuel Tank Bracket
(Superseded to 7053476YP)

$125.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7053518

WELDMENT, Right Hand Fuel Tank Bracket

$153.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

5

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

6

Snapper Pro 7090122

WASHER, 3/8" Flat

$

$

Not available

7

Snapper Pro 7035638

CLIP, Open 3/8" Cushioned
(Superseded to 7035638YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 7400013

WELDMENT, Right Hand Socket
(Superseded to 7400013YP)

Note: Series 2

$136.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7400012

WELDMENT, Left Hand Socket
(Superseded to 7400012YP)

Note: Series 2

$136.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

11

Snapper Pro 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 12

0
