NZMJ 25611 KH (7085628) - Snapper 61" Zero-Turn Mower, 25hp Kohler PARKING BRAKE ASSEMBLY (Series 2) Parts Diagram

61" Zero-Turn Mower, 25hp Kohler

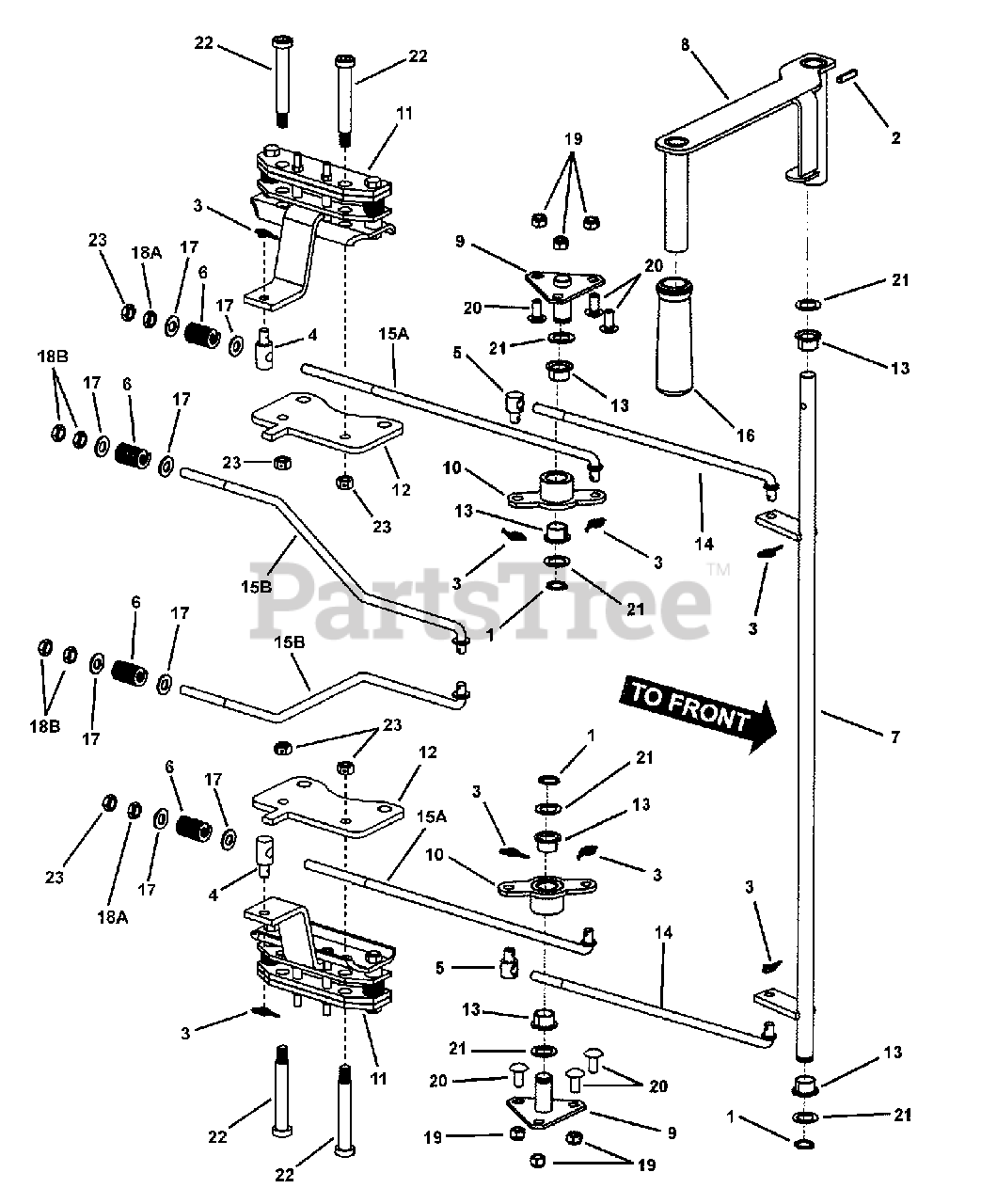

PARKING BRAKE ASSEMBLY (Series 2) Parts Diagram

  • Title

1

Snapper Pro 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 2 left!

0

2

Snapper Pro 7092091

GROOVE PIN, 1/4 x 1-1/4" long
(Superseded to 7092091SM)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 7024159

PIN, 3/8" Self Locking Cotter
(Superseded to 703355)

Note: or 7091593

$3.99

$

In Stock, Qty 14

0

4

Snapper Pro 7011231

SWIVEL, 3/8" Thru Hole, Special
(Superseded to 7011231SM)

$11.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7046451

SWIVEL, 3/8-24 Adjustment
(Superseded to 7046451YP)

$11.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7046782

SPRING, Rectangular Wire Die, Blue
(Superseded to 7046782YP)

$12.99

$

In Stock, only 1 left!

0

7

Snapper Pro 7054043

WELDMENT, Park Brake Crossrod
(Superseded to 7054043YP)

$109.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7059085

WELDMENT, Park Brake Handle
(Superseded to 7059085YP)

$108.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7059086

WELDMENT, Brake Linkage Pivot
(Superseded to 7059086YP)

$32.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7059087

WELDMENT, Brake Linkage Bellcrank

$

$

Currently unavailable

11

Snapper Pro 7071820

ASSEMBLY, Brake

Note: Ausco p/n CC 83022

$

$

Not available

12

Snapper Pro 7041140

BRACKET, Brake Mounting

$

$

Not available

13

Snapper Pro 7072934

BUSHING, Teflon Impregnated

$7.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 7073989

FRONT LINKAGE, Park Brake (3/8-24 thread)
(Superseded to 7073989YP)

$11.99

$

Usually ships in 2-12 days

0

15A

Snapper Pro 7073990

REAR LINKAGE, Park Brake (3/8-24 thread)

Note: 52" Deck Models only

$

$

Not available

15B

Snapper Pro 7072094

ROD, Brake Rear (3/8-16 thread)
(Superseded to 7072094YP)

Note: 61" Deck Models only

$18.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 7074196

GRIP, Parking Brake
(Superseded to 7074196YP)

$4.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 7090122

WASHER, 3/8" SAE Flat

$

$

Not available

18A

Snapper Pro 7090482

NUT, 3/8-24, Hex Jam, GR 5 or B
(Superseded to 7090482SM)

$4.49

$

In Stock, only 1 left!

0

18B

Snapper Pro 7090665

NUT, 3/8-16, Hex Jam, GR 5 or B

$

$

Not available

19

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR 5

$

$

Not available

21

Snapper Pro 7091628

WASHER, .64 I.D. x .99 O.D. x .05 Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, only 3 left!

0

22

Snapper Pro 7041148

SHOULDER BOLT, 3/8-16 Hex Socket Head
(Superseded to 7041148YP)

$7.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 7091518

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0
