NZMJ 25611 KH (7085628) - Snapper 61" Zero-Turn Mower, 25hp Kohler ELECTRICAL COMPONENTS (except wiring) Parts Diagram

61" Zero-Turn Mower, 25hp Kohler

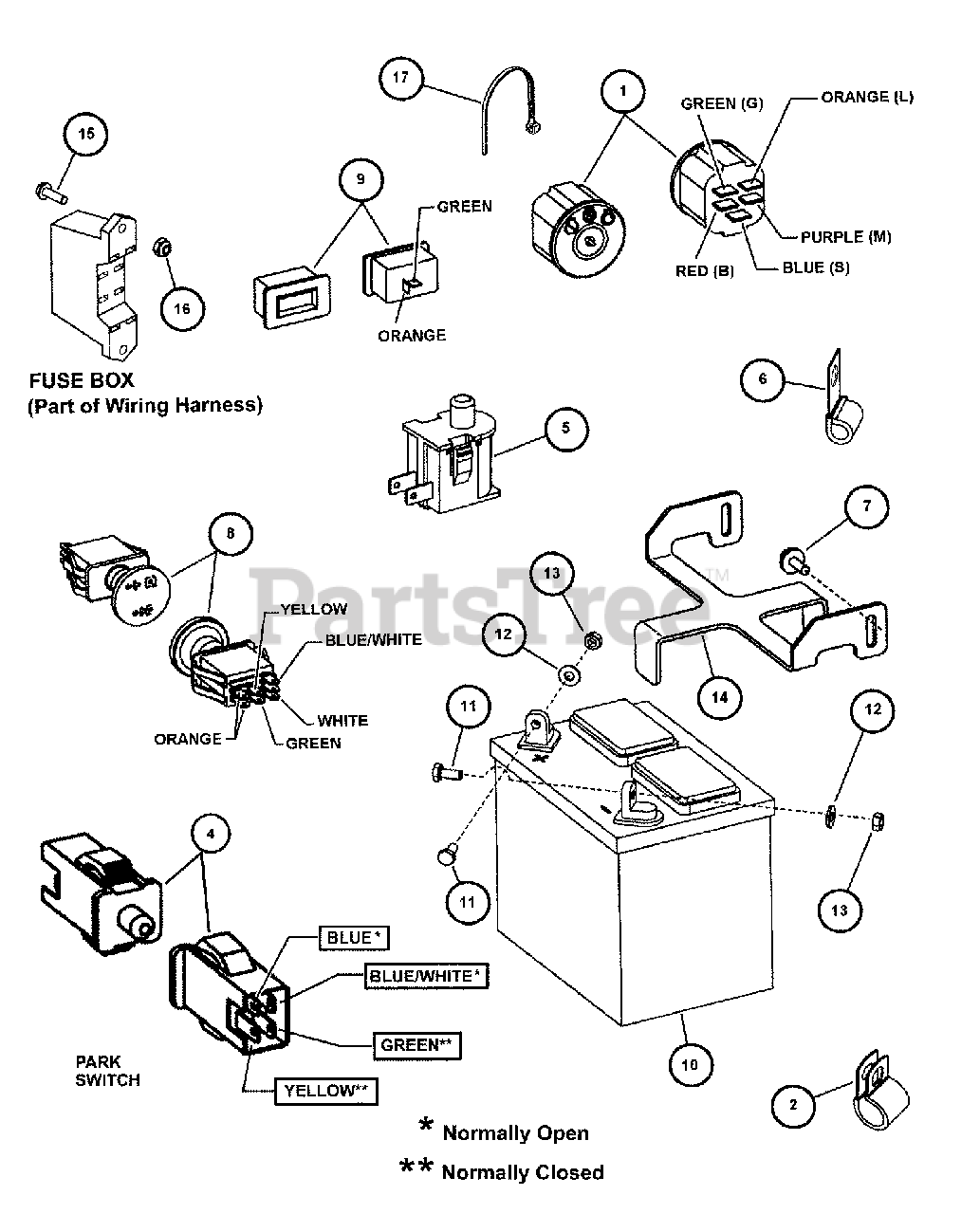

ELECTRICAL COMPONENTS (except wiring) Parts Diagram

  • Title

1

Snapper Pro 7072684

SWITCH, Ignition
(Superseded to 7072684YP)

$31.99

$

In Stock, only 1 left!

0

2

Snapper Pro 7015861

CLIP, Harness
(Superseded to 7015861SM)

$3.49

$

Usually ships in 2-12 days

0

--

Snapper Pro 7073406

KEY SET (not shown)
(Superseded to 1717163SM)

$8.99

$

In Stock, Qty 20+

0

4

Snapper Pro 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

5

Snapper Pro 7023354

SWITCH, Seat, NC
(Superseded to 7023354YP)

Note: shown also on Seat Assembly page

$12.99

$

In Stock, Qty 20+

0

6

Snapper Pro 7035638

CLIP, Open J 3/8 Cushioned
(Superseded to 7035638YP)

Note: shown on Rear Frame & Tank Bracket page & Seat Assembly page

$3.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 7090741

SCREW, 1/4-20 x 5/8" Hex Head w/loose captured washer

$

$

Currently unavailable

8

Snapper Pro 7075132

SWITCH, PTO, Yellow
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

9

Snapper Pro 7074796

HOUR METER w/2 Flash Alerts

Note: Sendec Corp. Model No. 804-204

$

$

Currently unavailable

10

Snapper Pro 7075911

BATTERY, 12V - Wet, 11 Plate 375CCA

Note: 7075911 replaces 7035610

$

$

Not available

11

Snapper Pro 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap, GR 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

12

Snapper Pro 7091294

WASHER, 9/32 I.D. x 5/8" O.D. Flat

$

$

Not available

13

Snapper Pro 7090372

NUT, 1/4-20 Hex Center Lock, GR 5 or B

$

$

Not available

14

Snapper Pro 7074809

BRACKET, Battery Hold-Down
(Superseded to 7074809YP)

$30.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 7091240

SCREW, #10-32 x 5/8" Hex Washer Self-Tap
(Superseded to 7091240YP)

$4.99

$

In Stock, only 1 left!

0

16

Snapper Pro 7090376

NUT, #10-32 Hex Nyloc

$3.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 7012080

CABLE TIE, 7" long
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0
