NZMJ 25611 KH (7085628) - Snapper 61" Zero-Turn Mower, 25hp Kohler DRIVE TIRE & WHEEL ASSEMBLY Parts Diagram

61" Zero-Turn Mower, 25hp Kohler

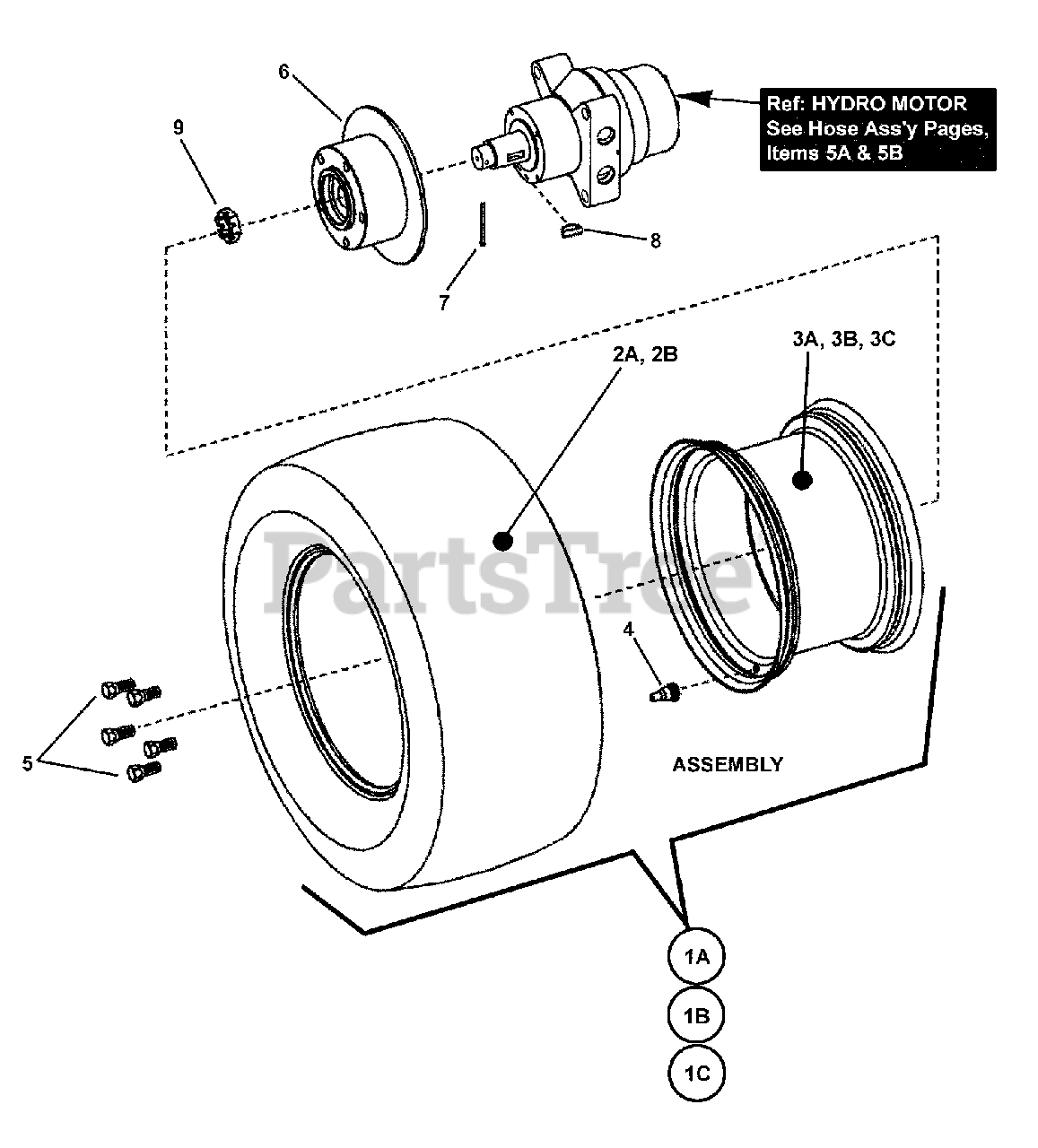

DRIVE TIRE & WHEEL ASSEMBLY Parts Diagram

  • Title

1A

Snapper Pro 7059161

ASSEMBLY, Rear Tire & Rim (Incl. Items 2A, 3A & 4)

Note: used on Series 1 Models

$

$

Not available

1B

Snapper Pro 7072796

ASSEMBLY, 23" Rear Tire & Rim (Incl. Items 2B, 3B & 4)

Note: used on 52", Series 2

$

$

Not available

1C

Snapper Pro 7072797

ASSEMBLY, 24" Rear Tire & Rim (Incl. Items 2B, 3C & 4)
(Superseded to 7072797YP)

Note: used on 61", Series 2

$396.99

$

Usually ships in 2-12 days

0

2A

Snapper Pro 7074157

TIRE, 23 x 10.5 - 12 NHS 4PR Kenda "Super Turf" 4 Ply
(Superseded to 7074157YP)

$267.99

$

Usually ships in 2-12 days

0

2B

Snapper Pro 7100296

TIRE, 23 x 10.5 - 12 NHS 4PR TMSTR TL (Carlisle)

$

$

Not available

3A

Snapper Pro 7075336

RIM, 12" Diameter x 7.00"

$

$

Currently unavailable

3B

Snapper Pro 7100295

RIM, 12" Diameter x 7.00"

$

$

Currently unavailable

3C

Snapper Pro 7100297

RIM, 12" Diameter x 8.50"

$

$

Not available

4

Snapper Pro 7012234

VALVE, Air
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 7092073

NUT, 1/2-20NF Lug

$

$

Currently unavailable

6

Snapper Pro 7074179

DRUM, Brake (Hayes)
(Superseded to 7074179YP)

Note: used on Series 1 Models

$222.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7071819

DRUM, Brake (Ausco)
(Superseded to 7600098YP)

Note: used on Series 2 Models

$902.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7091793

PIN, 9/64 x 1-1/2" Cotter

Note: included as part of wheel motor

$2.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7013861

KEY, #11 Woodruff
(Superseded to 7013861YP)

Note: included as part of wheel motor

$3.49

$

In Stock, Qty 5

0

9

Snapper Pro 7091828

NUT, 3/4-20 Slotted Hex

Note: included as part of wheel motor

$

$

Not available
