NZMJ 25611 KH (7085628) - Snapper 61" Zero-Turn Mower, 25hp Kohler 61" CUTTING DECK ASSEMBLY PT.2 Parts Diagram

61" Zero-Turn Mower, 25hp Kohler

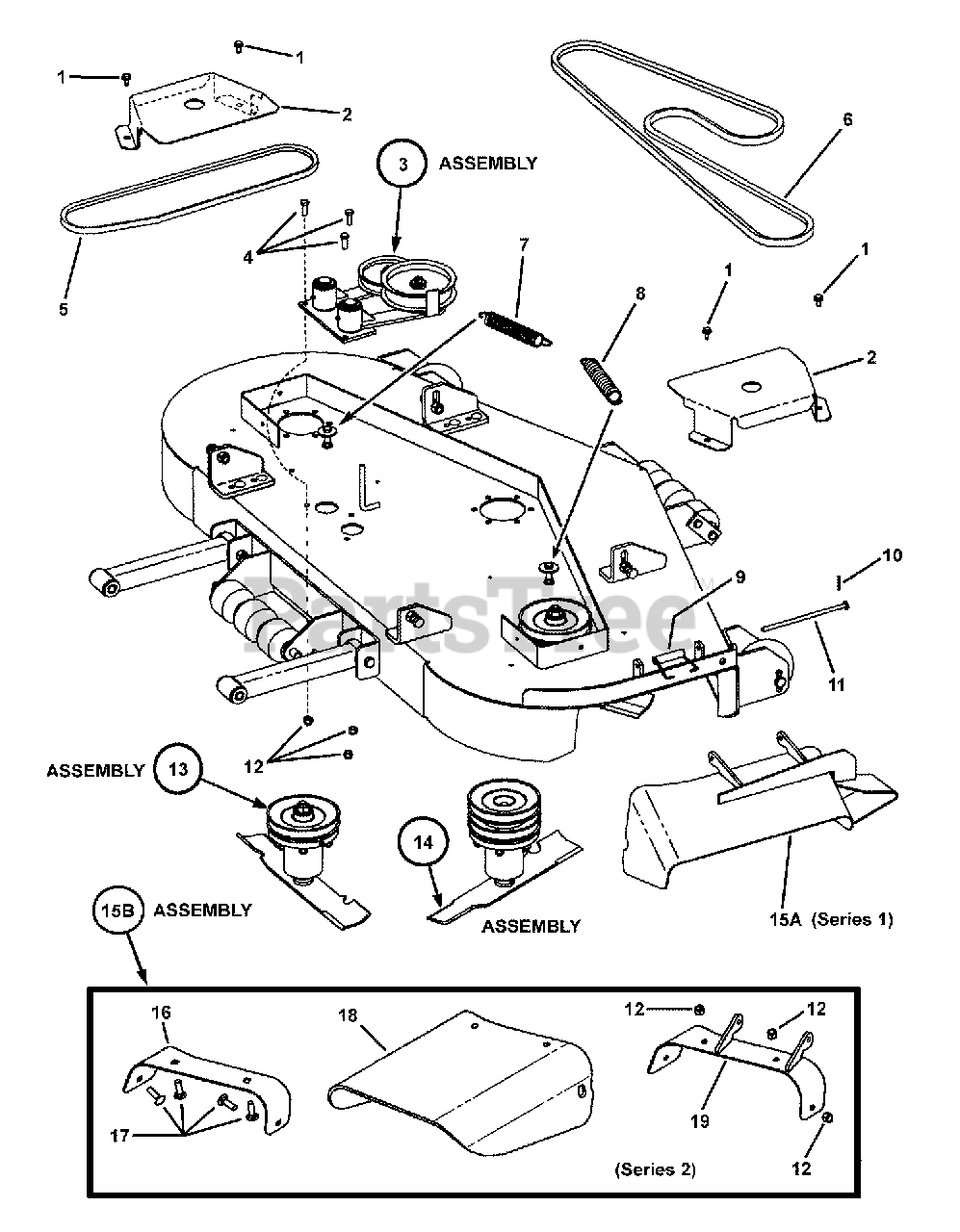

61" CUTTING DECK ASSEMBLY PT.2 Parts Diagram

  • Title

1

Snapper Pro 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

2

Snapper Pro 7075384

BELT COVER
(Superseded to 7075384YP)

$143.99

$

In Stock, only 1 left!

0

3

Snapper Pro 7058885

ASSEMBLY, Idler (see breakdown on Idler Assy page)

$

$

Currently unavailable

4

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

5

Snapper Pro 7075623

*BELT, Primary (HB Section, 94.20" effective length)
(Superseded to 7071766YP)

Note: Series 1 only

$51.99

$

In Stock, only 1 left!

0

5

Snapper Pro 7071766

*BELT, Primary (HB Section, 94.2" effective length)
(Superseded to 7071766YP)

Note: Series 2 only

$51.99

$

In Stock, only 1 left!

0

6

Snapper Pro 7029268

*V-BELT, Secondary- 61" (HB Section, 127.0" effective length)
(Superseded to 7029268YP)

$92.99

$

In Stock, only 1 left!

0

7

Snapper Pro 7029278

SPRING, Idler (1.17" O.D. x 7.5" long)
(Superseded to 7029278YP)

$14.99

$

In Stock, Qty 7

0

8

Snapper Pro 7029272

SPRING, Idler Primary (.90" O.D. x 10" long)
(Superseded to 7029272SM)

Note: Series 1 only

$14.99

$

In Stock, only 1 left!

0

8

Snapper Pro 7072915

SPRING, Idler Primary (1.25" O.D. x 10" long)
(Superseded to 7072915YP)

Note: Series 2 only

$19.99

$

In Stock, only 4 left!

0

9

Snapper Pro 7027950

SPRING, Chute
(Superseded to 7027950YP)

$

$

Not available

10

Snapper Pro 7091313

PIN, 3/32 x 1" Cotter

$

$

Not available

11

Snapper Pro 7029277

PIN, Chute Hinge
(Superseded to 7029277YP)

$40.99

$

In Stock, only 2 left!

0

12

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

13

ASSEMBLY, Spindle (see breakdown on Deck Spindle Assy page)

$

$

Not available

14

Snapper Pro 7058900

ASSEMBLY, Center Spindle (see breakdown on Deck Spindle Assy page)

$

$

Currently unavailable

15A

Snapper Pro 7058291

WELDMENT, 61" Chute Deflector (Series 1)
(Superseded to 7058291YP)

$427.99

$

Usually ships in 2-12 days

0

15B

ASSEMBLY, Discharge Chute, 61" Deck (Series 2)

Note: incl. items 10, 11, 12, 17, 19 & 20

$

$

Not available

16

Snapper Pro 7300034D

DEFLECTOR BOTTOM (61" Deck)

$

$

Currently unavailable

17

Snapper Pro 7091790

BOLT, 3/8-16 x 1-1/4" Square Neck Carriage, GR 5
(Superseded to 703130)

$3.99

$

In Stock, Qty 13

0

18

Snapper Pro 7100086

CHUTE, Rubber (61" Deck)
(Superseded to 7100622YP)

$204.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 7400007D

WELDMENT, 61" Discharge Chute

$

$

Currently unavailable
