NZMJ 23523 KH (7800024) - Snapper 52" Zero-Turn Mower, 23hp Kohler JOYSTICK CONTROL ASSEMBLY (L. H. Side) Parts Diagram

52" Zero-Turn Mower, 23hp Kohler

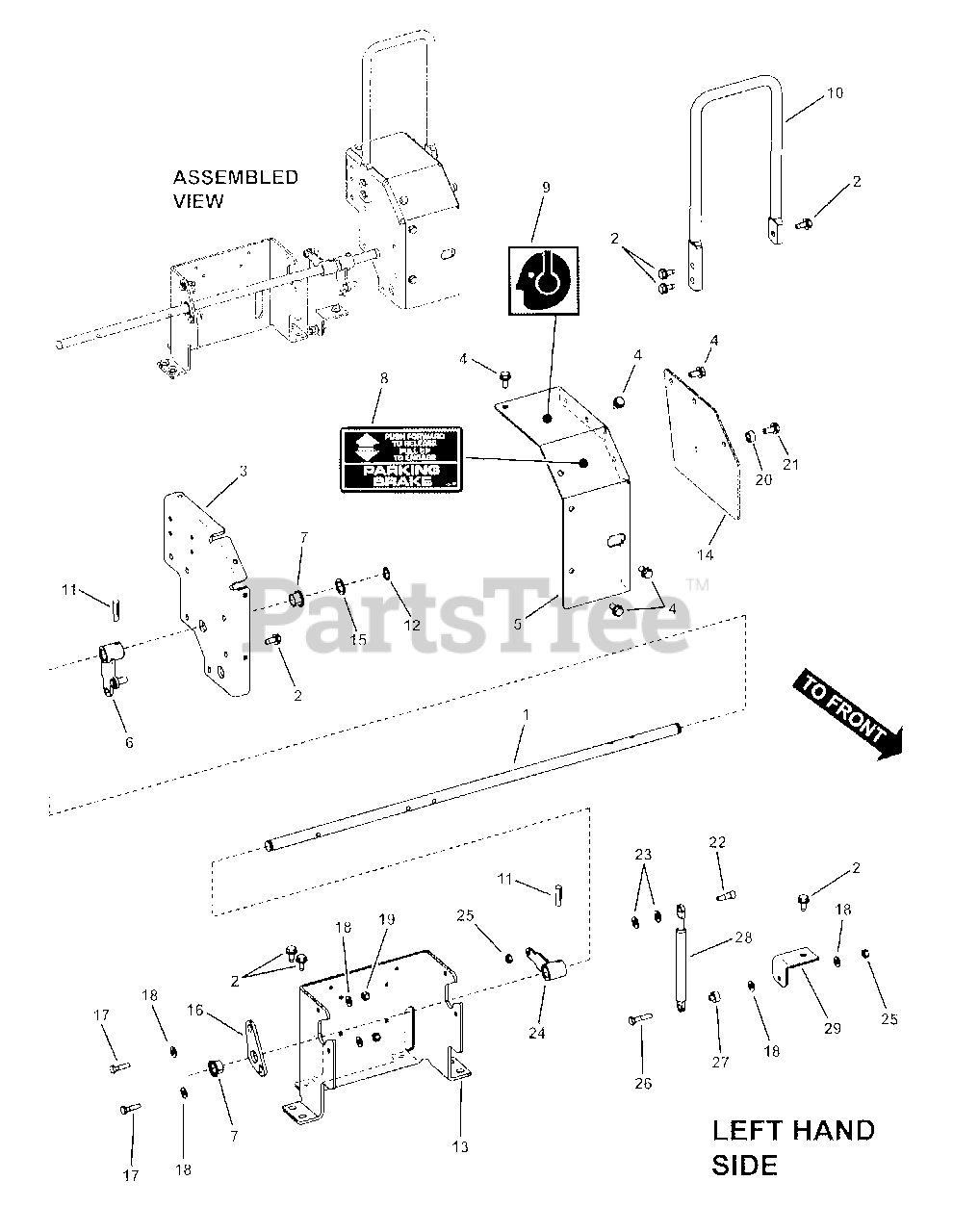

JOYSTICK CONTROL ASSEMBLY (L. H. Side) Parts Diagram

  • Title

1

Snapper 7075265

SHAFT, Pivot
(Superseded to 7075265YP)

$95.99

$

Usually ships in 2-12 days

0

2

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

3

Snapper 7075267

MOUNT, Bearing, Left Hand
(Superseded to 7075267YP)

$76.99

$

Usually ships in 2-12 days

0

4

Snapper 7091867

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap Yellow Zinc
(Superseded to 7091867YP)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 7075268

LIMITER BRACKET, Left Hand
(Superseded to 7075268YP)

$44.99

$

Usually ships in 2-12 days

0

6

Snapper 7053998

WELDMENT, Bellcrank
(Superseded to 7053998YP)

$72.99

$

Usually ships in 2-12 days

0

7

Snapper 7072934

BUSHING, Teflon Impregnated
(Superseded to 7072934SM)

$8.49

$

In Stock, only 4 left!

0

8

Snapper 7075040

DECAL, Parking Brake
(Superseded to 7075040YP)

Note: see also Decal Page

$7.99

$

Usually ships in 2-12 days

0

9

Snapper 7027733

DECAL, Ear Protection
(Superseded to 7027733YP)

Note: see also Decal Page

$6.49

$

Usually ships in 2-12 days

0

10

Snapper 7075654

HANDLE, Support
(Superseded to 7075654YP)

$16.99

$

Usually ships in 2-12 days

0

11

Snapper 7092091

GROOVE PIN, 1/4 x 1-1/4"
(Superseded to 7092091SM)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 2 left!

0

13

Snapper 7075264

CHANNEL, Joystick Mounting
(Superseded to 7075264YP)

$100.99

$

Usually ships in 2-12 days

0

14

Snapper 7043214

COVER, Left Hand Outside
(Superseded to 7043214YP)

$16.99

$

Usually ships in 2-12 days

0

15

Snapper 7091628

WASHER, 5/8" Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, only 3 left!

0

16

Snapper 7075761

BRACKET, Bearing Support
(Superseded to 7075761YP)

$6.49

$

Usually ships in 2-12 days

0

17

Snapper 7090548

SCREW, 1/4-20 x 1" Hex Head Cap, GR 5
(Superseded to 703820)

$3.99

$

In Stock, only 4 left!

0

18

Snapper 7091294

WASHER, .28 x .63 x .06 Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

20

Snapper 7028620

SPACER, .340 I.D. x .63 O.D. x .310 Thick
(Superseded to 7028620SM)

$4.49

$

In Stock, only 1 left!

0

21

Snapper 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 703228)

Note: or 7090793

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7092010

SHOULDER BOLT, 1/4-20 thread
(Superseded to 7092010YP)

Note: shoulder: 5/16 Dia. x 3/8" long

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7090188

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 6

0

24

Snapper 7059171

BELLCRANK, Dampener (weldment)
(Superseded to 7059171YP)

$75.99

$

Usually ships in 2-12 days

0

25

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

26

Snapper 7091814

SCREW, 1/4-20 x 1-1/4" Hex Head Cap
(Superseded to 7091814SM)

$3.99

$

Usually ships in 2-12 days

0

27

Snapper 7075026

SPACER, Twin Stick
(Superseded to 7075026YP)

$26.99

$

Usually ships in 2-12 days

0

28

Snapper 7075746

DAMPENER, Hydraulic
(Superseded to 7075746YP)

$113.99

$

Usually ships in 2-12 days

0

29

Snapper 7074672

BRACKET, Dampener
(Superseded to 7074672YP)

$10.99

$

Usually ships in 2-12 days
