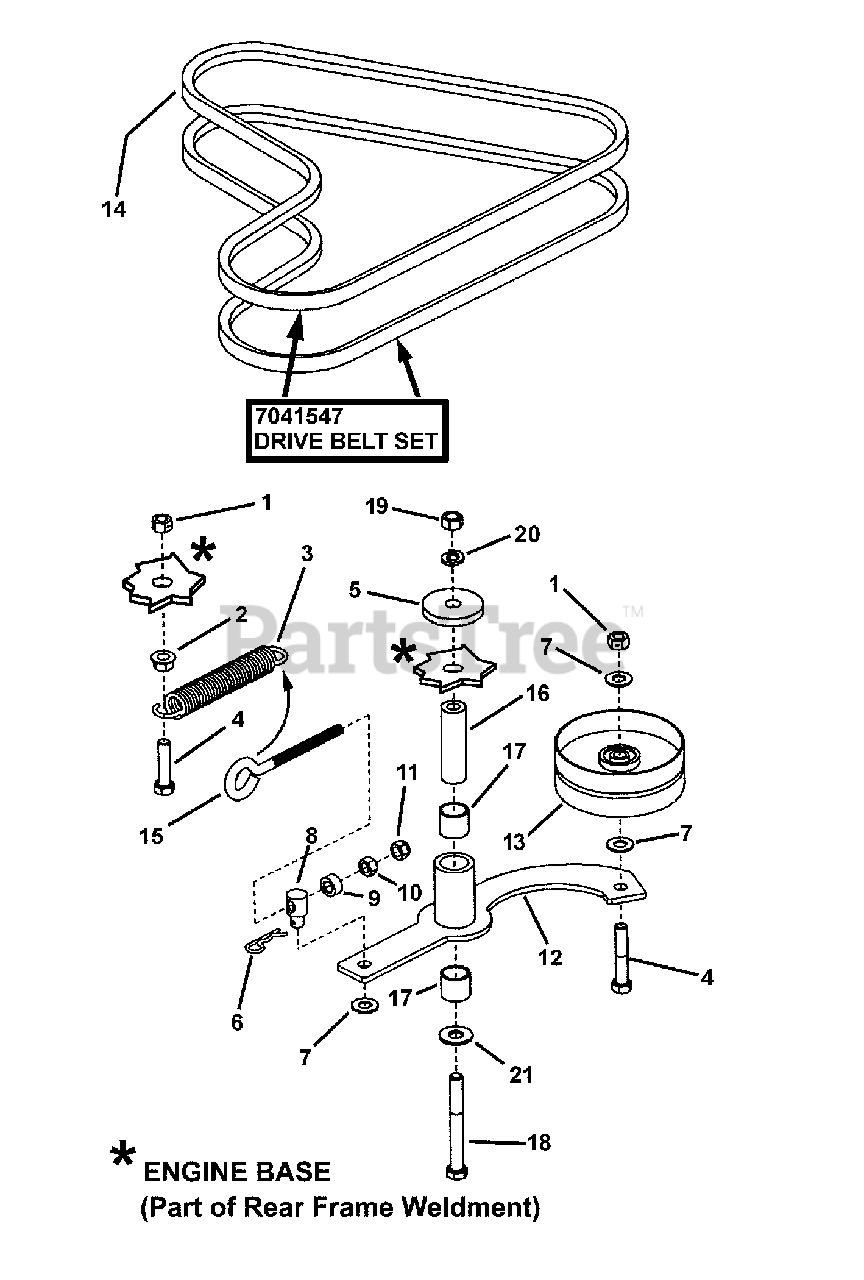

NZMJ 23523 KH (7800024) - Snapper 52" Zero-Turn Mower, 23hp Kohler HYDRO IDLER ASSEMBLY Parts Diagram

52" Zero-Turn Mower, 23hp Kohler

HYDRO IDLER ASSEMBLY Parts Diagram

  • Title

1

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

2

Snapper 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

3

Snapper 7073992

SPRING, Extension
(Superseded to 7073992YP)

$28.99

$

Usually ships in 2-12 days

0

4

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

5

Snapper 7075082

WASHER, .468 x 1.85 x .25
(Superseded to 7075082YP)

$0.00

$

Usually ships in 2-12 days

0

6

Snapper 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7075078

SWIVEL, Adjustable
(Superseded to 7075078YP)

$18.99

$

In Stock, only 1 left!

0

9

Snapper 7028620

SPACER, .340 I.D. x .63 O.D. x .310 Thick
(Superseded to 7028620SM)

$4.49

$

In Stock, only 1 left!

0

10

Snapper 7091511

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

11

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7074440

WELDMENT, Idler Arm
(Superseded to 7074440YP)

$

$

Not available

13

Snapper 7041262

PULLEY, 4" O.D. x .391 I.D. x 1.25 Backside Idler
(Superseded to 7041262YP)

$49.99

$

In Stock, only 1 left!

0

14

Snapper 7075109

BELT, Hydro Drive (HA Section, 47.5 Effective Length)
(Superseded to 7075109YP)

$40.99

$

In Stock, Qty 20+

0

Snapper 7041547

SET, Matched Traction Drive Belts
(Superseded to 7041547YP)

Note: (Kit contains two belts (p/n 7075109)

$74.99

$

In Stock, only 2 left!

0

15

Snapper 7078063

EYEBOLT, 5/16-18
(Superseded to 7078063YP)

Note: may be used instead of 7075078

$5.99

$

Usually ships in 2-12 days

0

16

Snapper 1723806

BOSS, IDLER,YELLOW GV3036304
(Superseded to 1723806SM)

$70.99

$

Usually ships in 2-12 days

0

17

Snapper 1723805

BUSHING, SLEEVE, 3/4 ID, GV3031224
(Superseded to 1723805SM)

$12.99

$

In Stock, only 2 left!

0

18

Snapper 7027221

BOLT, 3/8-16 x 3-1/2" Hex Head, GR 5
(Superseded to 7027221YP)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 7090130

NUT, 3/8-16 Hex, GR 5 or B
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

21

Snapper 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0
