NZMJ 23523 KH (7800024) - Snapper 52" Zero-Turn Mower, 23hp Kohler CASTER WHEEL ASSEMBLY Parts Diagram

52" Zero-Turn Mower, 23hp Kohler

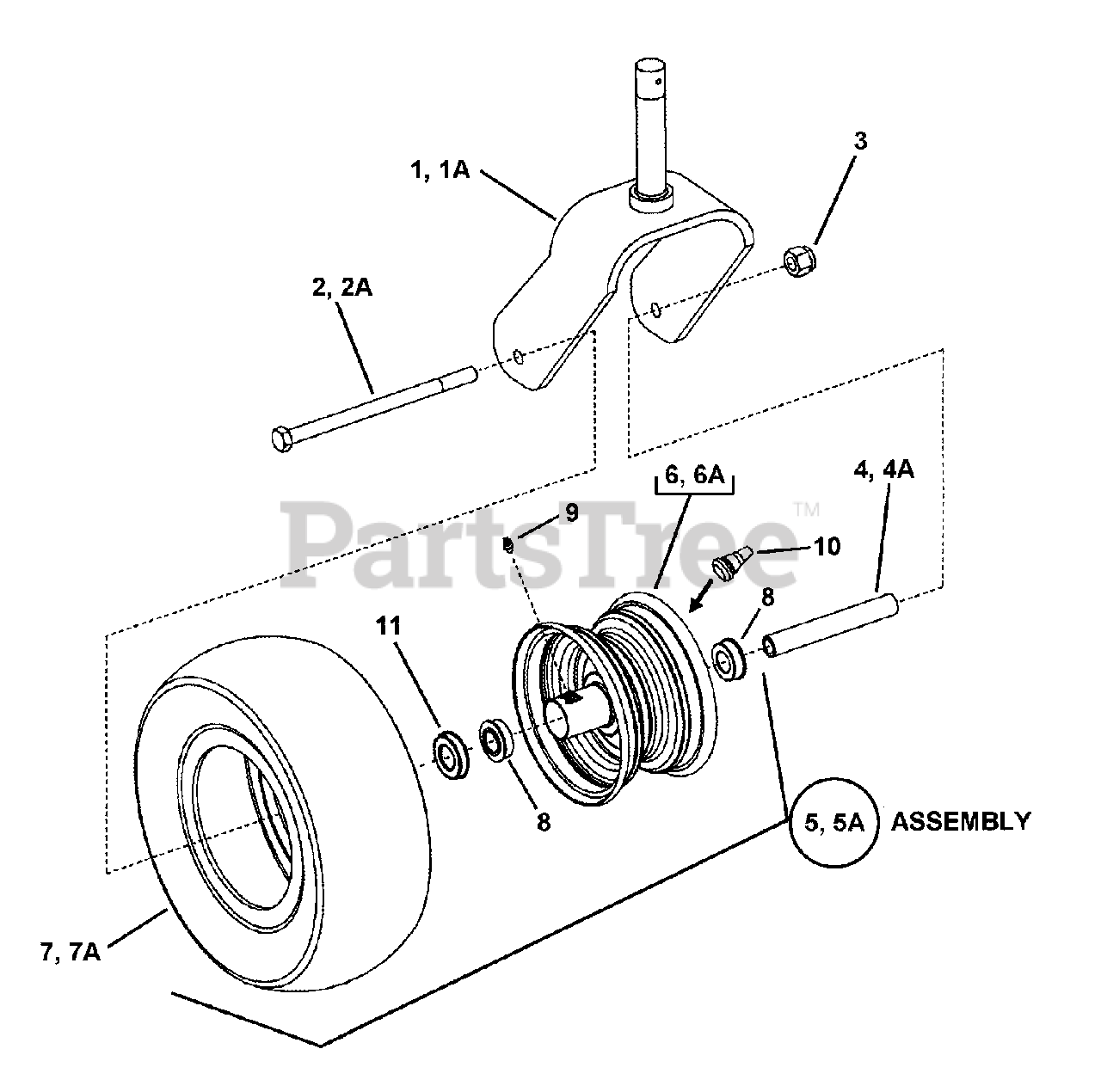

CASTER WHEEL ASSEMBLY Parts Diagram

  • Title
1

Snapper 7058744

WELDMENT, Caster Yoke
(Superseded to 7058744YP)

Note: used on 52" Deck Model only

$189.99

$

Usually ships in 2-12 days

0

1A

Snapper 7075398

WELDMENT, Caster Yoke, 7-1/4" Wide
(Superseded to 7075398YP)

Note: used on 61" Deck Model only

$230.99

$

Usually ships in 2-12 days

0

2

Snapper 5025017X56

BOLT, HEX, 1/2-13 X 7, GD 8, YZ
(Superseded to 5025017X56YP)

Note: used on 52" Deck Model only

$14.99

$

In Stock, Qty 8

0

2A

Snapper 7092094

SCREW, 1/2-13 x 9-1/2" Hex Head Cap, GR 5
(Superseded to 7092094YP)

Note: used on 61" Deck Model only

$14.99

$

Usually ships in 2-12 days

0

3

Snapper 7091325

NUT,1/2-13 Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

4

Snapper 7035476

SPACER, Bearing, 5.29" Long
(Superseded to 7035476YP)

Note: used on 52" Deck Model only

$31.99

$

In Stock, only 1 left!

0

4A

Snapper 7075462

SPACER, Bearing, 7.29" Long
(Superseded to 7075462YP)

Note: used on 61" Deck Model only

$32.99

$

Usually ships in 2-12 days

0

5

Snapper 7026188

ASSY, Tire & Wheel (Incl. items 6, 7, 8, 9, 10 & 11)
(Superseded to 7026188YP)

Note: used on 52" Deck Model only

$201.99

$

In Stock, only 2 left!

0

5A

Snapper 7072795

ASSY, Tire & Wheel (Incl. items 6A, 7A, 8, 9, 10 & 11)
(Superseded to 7072795YP)

Note: used on 61" Deck Model only

$201.99

$

In Stock, only 2 left!

0

6

Snapper 7078276

WELDMENT, Wheel Hub & Rim (Grey)

Note: used on 52" Deck Model only

$

$

Not available

6A

Snapper 7078285

WELDMENT, Wheel Hub & Rim (Grey)

Note: used on 61" Deck Model only

$

$

Currently unavailable

7

Snapper 7078275

TIRE, 13 x 5.00-6 4 Ply Smooth TL

Note: used on 52" Deck Model only

$

$

Not available

7A

Snapper 7078277

TIRE, 13 x 6.5-6 4 Ply Smooth TL
(Superseded to 7078277YP)

Note: used on 61" Deck Model only

$79.99

$

In Stock, only 1 left!

0

8

Snapper 7028722

BEARING, .750 Heim
(Superseded to 7028722YP)

$29.99

$

In Stock, Qty 9

0

9

Snapper 7076998

FITTING, Lube
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

10

Snapper 7012234

VALVE STEM, Air
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

11

Snapper 7075883

SPACER
(Superseded to 7075883YP)

$11.99

$

In Stock, only 1 left!

0
