NZMJ 23522 KH (85677) - Snapper 52" Zero-Turn Mower, 23hp Kohler DECK SPINDLE ASSEMBLIES Parts Diagram

52" Zero-Turn Mower, 23hp Kohler

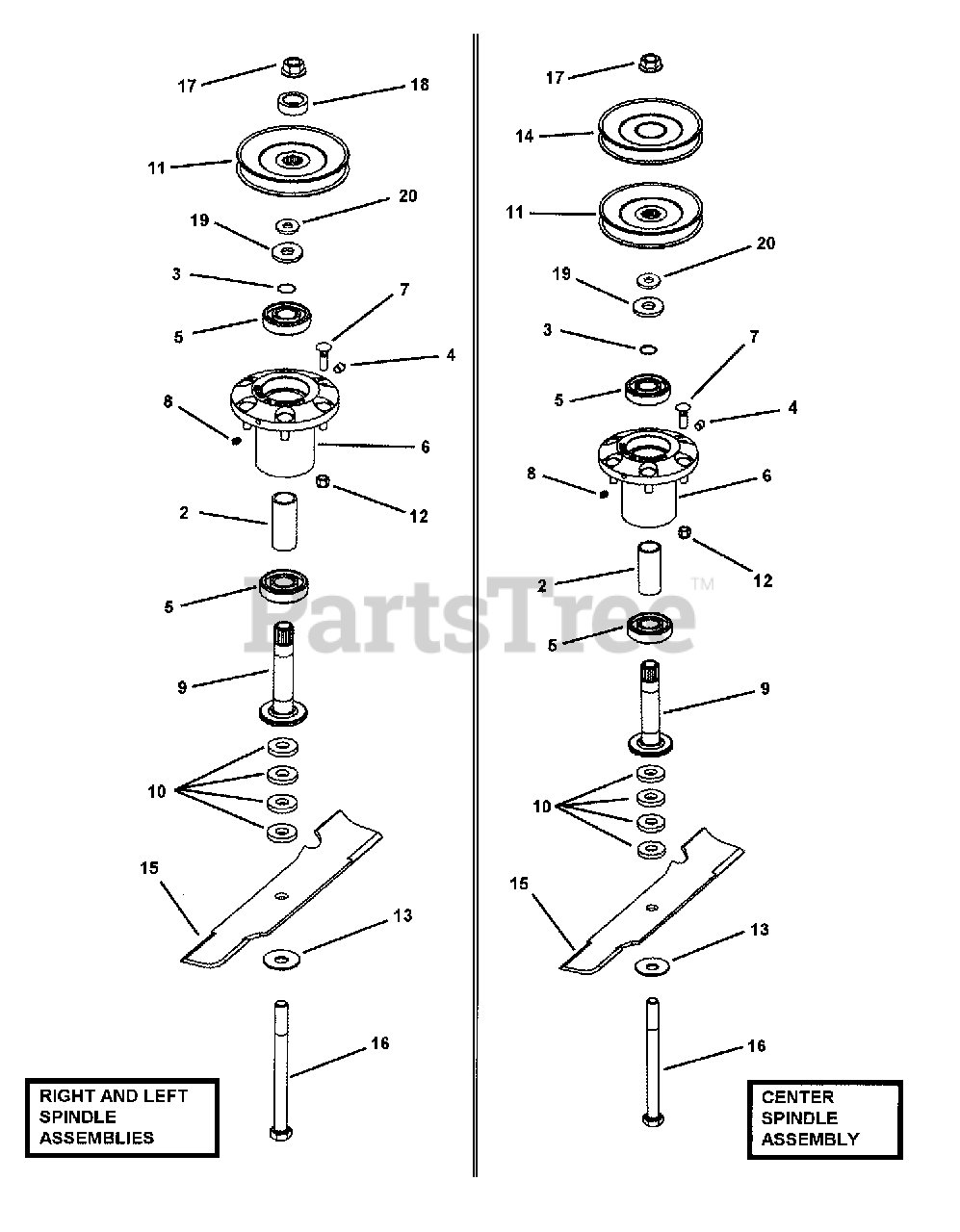

DECK SPINDLE ASSEMBLIES Parts Diagram

  • Title

1

Snapper 7054011

SUB-ASSEMBLY, Spindle (Incl.the 8 items below)
(Superseded to 7054011YP)

$

$

Not available

2

Snapper 7029254

SPACER, Bearing
(Superseded to 7029254YP)

$20.99

$

In Stock, Qty 5

0

3

Snapper 7029274

*RING, Spindle Retaining
(Superseded to 7029274YP)

$4.49

$

In Stock, only 2 left!

0

4

Snapper 7029384

VENT, Spindle (Alemite # 321839)
(Superseded to 7029384YP)

$13.99

$

In Stock, only 3 left!

0

5

Snapper 7029422

BALL BEARING (2 per item 1, sub-assembly)
(Superseded to 7029422YP)

$

$

Not available

6

Snapper 7058237

ASSEMBLY, Spindle Housing (includes items 4 & 8)
(Superseded to 7058237YP)

$

$

Not available

7

Snapper 7029302

BOLT, Ribbed (3/8-16 x 1-1/4" Thread) (6 per item 1, sub-assembly)
(Superseded to 7029302YP)

$4.49

$

In Stock, Qty 8

0

8

Snapper 7029275

FITTING, Lube (1/4-28 Special Thread Forming)
(Superseded to 703153)

Note: (Alemite #3038-B)

$3.99

$

In Stock, Qty 12

0

9

Snapper 7059311

SHAFT, Spindle
(Superseded to 7059311YP)

$

$

Not available

10

Snapper 7029271

SPACER, Blade
(Superseded to 7029271YP)

$13.99

$

In Stock, only 1 left!

0

11

Snapper 7029245

PULLEY, 5.75" Diameter
(Superseded to 7029245YP)

$59.99

$

In Stock, only 2 left!

0

12

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK (6 per spindle assembly)
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

13

Snapper 7016440

WASHER, Beveled
(Superseded to 7016440SM)

$7.99

$

In Stock, Qty 20+

0

14

Snapper 7075076

PULLEY, Driven (52" Deck only)
(Superseded to 7075076YP)

$87.99

$

Usually ships in 2-12 days

0

14

Snapper 7029250

PULLEY, Driven (61" Deck only)
(Superseded to 7029250YP)

$98.99

$

Usually ships in 2-12 days

0

15

Snapper 7075751

BLADE, 18" Commercial w/Extra Cut (52" Deck only)
(Superseded to 7075751BZYP)

Note: (replaces 7029246)

$27.99

$

In Stock, only 3 left!

0

15

Snapper 7075770

BLADE, 21" (61" Deck only)
(Superseded to 7075770YP)

Note: (was 7017081)

$28.99

$

In Stock, only 3 left!

0

16

Snapper 7063234

BOLT, 5/8-11 x 7-1/2" Hex, Grade 5
(Superseded to 7063234YP)

$12.99

$

In Stock, Qty 5

0

17

Snapper 7063237

NUT, 5/8-11 Hex Flange Lock, GR 5
(Superseded to 7063237YP)

$4.49

$

In Stock, Qty 20+

0

18

Snapper 7029270

WASHER, Spindle
(Superseded to 7029270YP)

$25.99

$

In Stock, only 2 left!

0

19

Snapper 7063238

*SEAL, Nylos
(Superseded to 7063238YP)

$56.99

$

In Stock, Qty 8

0

20

Snapper 7013370

*WASHER
(Superseded to 7013370YP)

$

$

Not available
