NZMJ 23522 KH (7085677) - Snapper 52" Zero-Turn Mower, 23hp Kohler HOSE ASSEMBLY (52" DECK) Series2 Parts Diagram

52" Zero-Turn Mower, 23hp Kohler

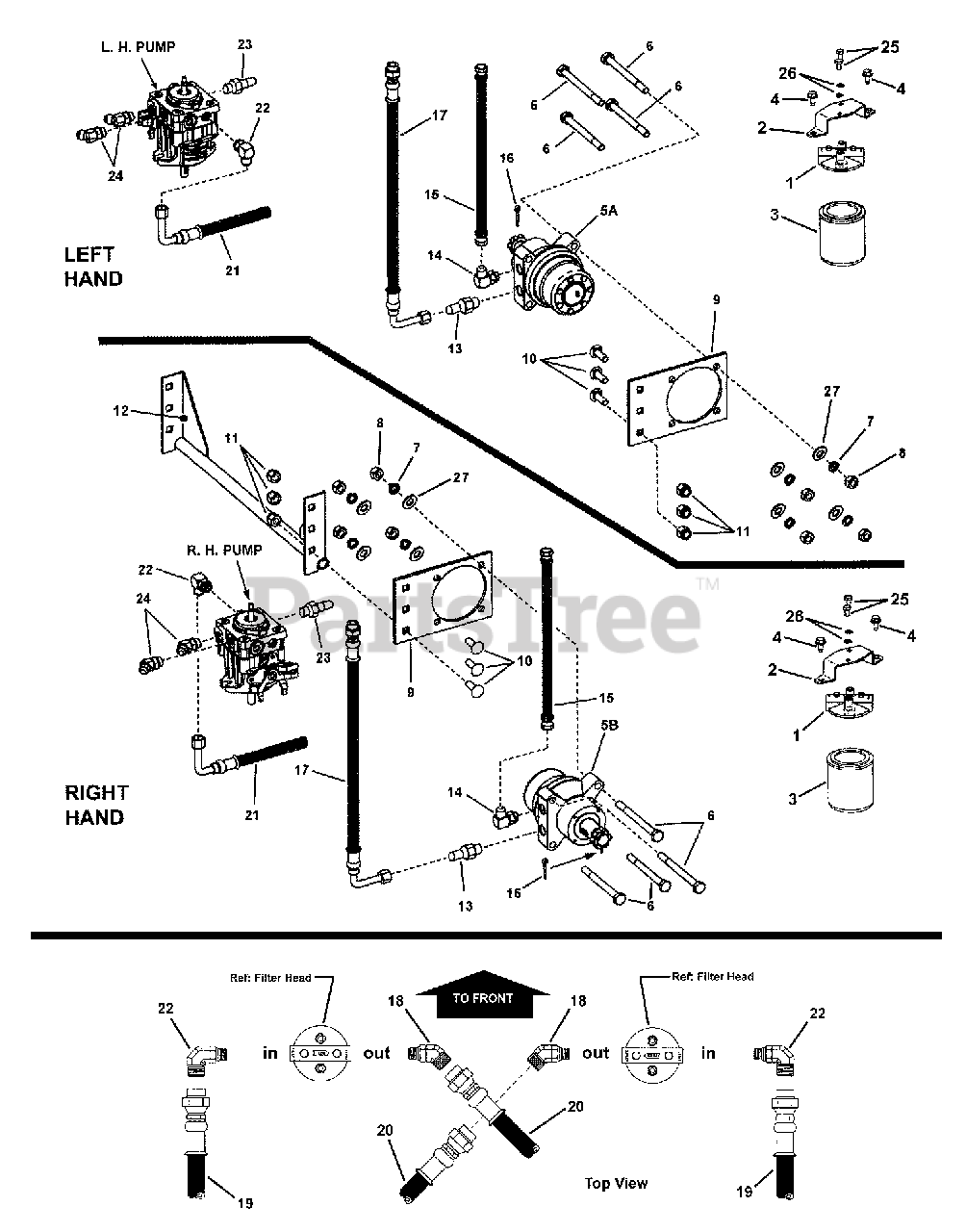

HOSE ASSEMBLY (52" DECK) Series2 Parts Diagram

  • Title

1

Snapper Pro 5023096

FILTER HEAD
(Superseded to 5023096SM)

$52.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7075919

BRACKET, Filter
(Superseded to 7075919YP)

$21.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 1719168YP

FILTER, OIL

$26.99

$

In Stock, Qty 20+

0

4

Snapper Pro 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

5A

Snapper Pro 7075637

MOTOR, Hydraulic, Left Hand
(Superseded to 7075637YP)

Note: Includes Castle Nut & #502 Woodruff Key, 5/16 x 1"

$1197.99

$

Usually ships in 2-12 days

0

5B

Snapper Pro 7075638

MOTOR, Hydraulic, Right Hand
(Superseded to 7075638YP)

Note: Includes Castle Nut & #502 Woodruff Key, 5/16 x 1"

$712.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7092087

BOLT, 1/2-13 x 6" Hex Head Cap GR 5
(Superseded to 7092087YP)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 7091322

WASHER, 1/2" Split Lock
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

8

Snapper Pro 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

9

Snapper Pro 7073996

MOUNTING PLATE, Hydro Motor
(Superseded to 7073996YP)

$58.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7090768

BOLT, 1/2-13 x 1-1/2" Square Neck Carriage, GR 5
(Superseded to 7090768YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 7091325

NUT, 1/2-13 Hex Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

12

Snapper Pro 7059091

WELDMENT, Rear Crossbrace
(Superseded to 7059091YP)

$

$

Not available

13

Snapper Pro 7075058

CONNECTOR, Straight Hydraulic (Parker # 8-10 F5OLO-S)

$

$

Currently unavailable

14

Snapper Pro 7075059

CONNECTOR, 90-Degree Hydraulic (Parker # 8-10 C5OLO-S)

$

$

Not available

15

Snapper Pro 7075049

HOSE, 13-3/4" Hydraulic (Parker # F436BKJCJC080808-13-75)
(Superseded to 7075049YP)

$85.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 7090297

COTTER PIN, 1/8 x 1-1/2"
(Superseded to 7091809YP)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 7075051

HOSE, 17-1/2" Hydraulic (Parker # F436BKJCJ5080808-17.5)

$

$

Currently unavailable

18

Snapper Pro 7041247

CONNECTOR, 45-Degree Hydraulic (Parker #8-6 V 50L0-S)
(Superseded to 7041247YP)

$25.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 7075052

HOSE, 18-1/2" (Parker R836BKJCJ9090808-18.5)
(Superseded to 7075052YP)

$62.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 7075053

HOSE, 12-1/4" (Parker # R836BKJ9NR080008-12.5)
(Superseded to 7075053YP)

$53.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 7075054

HOSE, 6-1/2" (Parker # R836BKJ9NR080008-6.5)
(Superseded to 7075054YP)

$56.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 7075056

CONNECTOR, 90-Degree Hydraulic (Parker # 8-6 C5OLO-S)
(Superseded to 7075056YP)

$26.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 7075057

CONNECTOR, Straight Hydraulic (Parker # 8-6 F5OLO-S)

$

$

Currently unavailable

24

Snapper Pro 7075055

CONNECTOR, 45-Degree Hydraulic (Parker # V5OLO-S)
(Superseded to 7075055YP)

$26.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 7090071

SCREW, 1/4-20 x 1/2" Hex Head Cap, GR 5

$

$

Not available

26

Snapper Pro 7090052

WASHER, 1/4" Split Lock
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

27

Snapper Pro 7091587

WASHER, .531 I.D. Flat

$

$

Not available
