NZMJ 23521 KH (84938) - Snapper 52" Zero-Turn Mower, 23hp Kohler PARKING BRAKE ASSEMBLY (Series 1) Parts Diagram

52" Zero-Turn Mower, 23hp Kohler

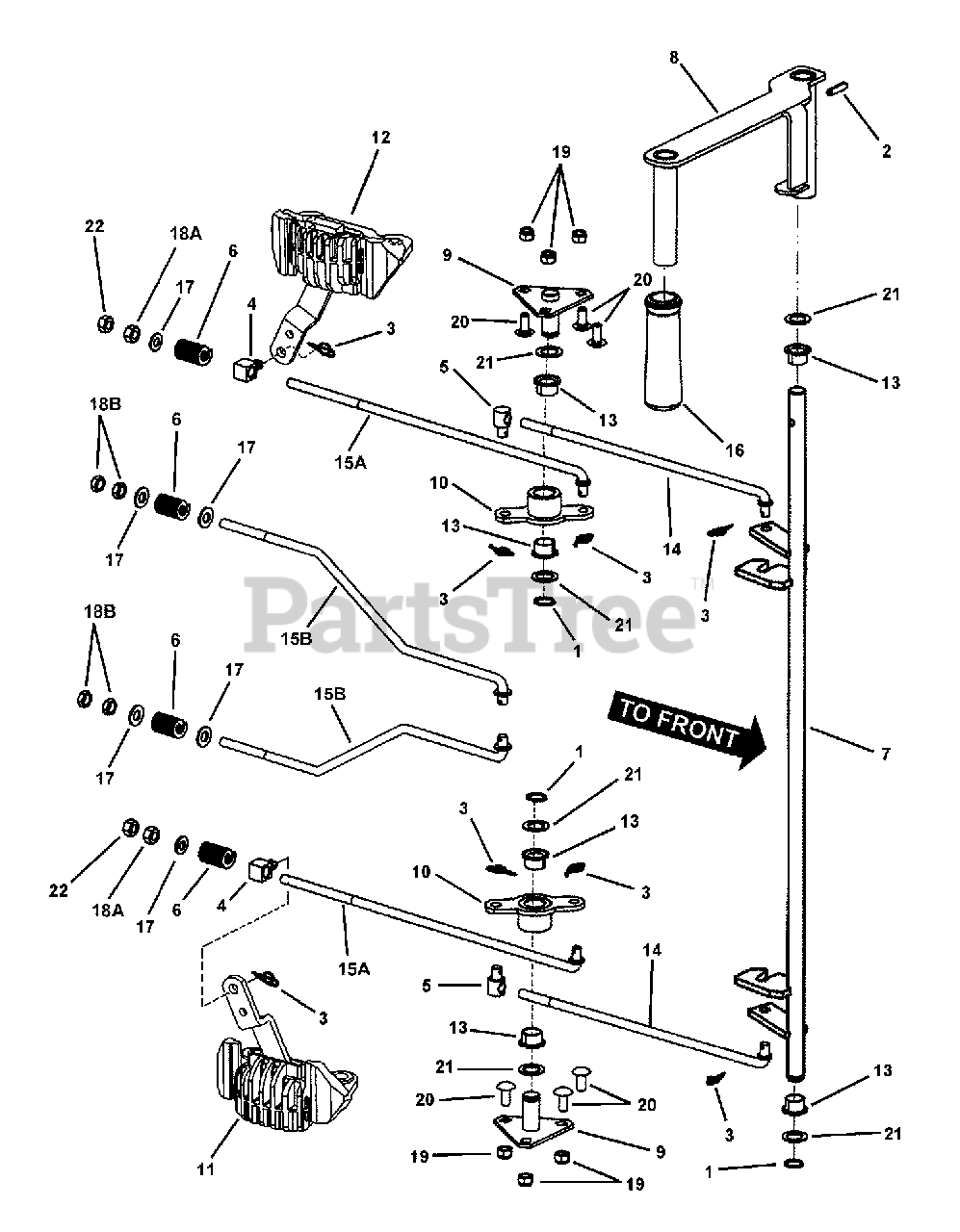

PARKING BRAKE ASSEMBLY (Series 1) Parts Diagram

  • Title

1

Snapper 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 2 left!

0

2

Snapper 7092091

GROOVE PIN, 1/4 x 1-1/4"
(Superseded to 7092091SM)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7024159

PIN, 3/8" Self Locking Cotter
(Superseded to 703355)

$3.99

$

In Stock, Qty 14

0

4

Snapper 7024586

SWIVEL, Brake Link-PM
(Superseded to 7024586YP)

$4.99

$

Usually ships in 2-12 days

0

5

Snapper 7046451

SWIVEL, Adjustable
(Superseded to 7046451YP)

$11.99

$

Usually ships in 2-12 days

0

6

Snapper 7046782

SPRING, Rectangular Wire Die, Blue
(Superseded to 7046782YP)

Note: or 7035915, SPRING, Neutral Return Adjust

$12.99

$

In Stock, only 1 left!

0

7

Snapper 7054043

WELDMENT, Brake Rod
(Superseded to 7054043YP)

$109.99

$

Usually ships in 2-12 days

0

8

Snapper 7059085

WELDMENT, Park Brake Handle
(Superseded to 7059085YP)

$108.99

$

Usually ships in 2-12 days

0

9

Snapper 7059086

WELDMENT, Brake Linkage Pivot
(Superseded to 7059086YP)

$32.99

$

Usually ships in 2-12 days

0

10

Snapper 7059087

WELDMENT, Brake Linkage Bellcrank
(Superseded to 7059087YP)

$70.99

$

Usually ships in 2-12 days

0

11

Snapper 7059176

PACKAGE, Left Hand Disc Brake
(Superseded to 7059176YP)

Note: Hayes p/n 00-16099

$148.99

$

Usually ships in 2-12 days

0

12

Snapper 7059181

PACKAGE, Right Hand Disc Brake
(Superseded to 7059181YP)

Note: Hayes p/n 00-16100

$164.99

$

In Stock, only 1 left!

0

13

Snapper 7072934

BUSHING, Teflon Impregnated
(Superseded to 7072934SM)

$8.49

$

In Stock, only 4 left!

0

14

Snapper 7073989

LINKAGE, Park Brake, Front (3/8-24 thread)
(Superseded to 7073989YP)

$11.99

$

Usually ships in 2-12 days

0

15A

Snapper 7073990

LINKAGE, Park Brake, Rear (3/8-24 thread)
(Superseded to 7073990YP)

Note: used on 52" Deck Model only

$11.99

$

Usually ships in 2-12 days

0

15B

Snapper 7072094

ROD, Brake, Rear (3/8-16 thread)
(Superseded to 7072094YP)

Note: used on 61" Deck Model only

$18.99

$

Usually ships in 2-12 days

0

16

Snapper 7074196

GRIP, Parking Brake
(Superseded to 7074196YP)

$4.99

$

Usually ships in 2-12 days

0

17

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18A

Snapper 7090482

NUT, 3/8-24 Hex Jam
(Superseded to 7090482SM)

$4.49

$

In Stock, only 1 left!

0

18B

Snapper 7090665

NUT, 3/8-16, Hex Jam, GR 5 or B
(Superseded to 703996)

$4.99

$

In Stock, Qty 10

0

19

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

21

Snapper 7091628

WASHER, .64 I.D. Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, only 3 left!

0

22

Snapper 7091518

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0
