NZMJ 23521 KH (84938) - Snapper 52" Zero-Turn Mower, 23hp Kohler HOSE ASSEMBLY (52" DECK) Series1 Parts Diagram

52" Zero-Turn Mower, 23hp Kohler

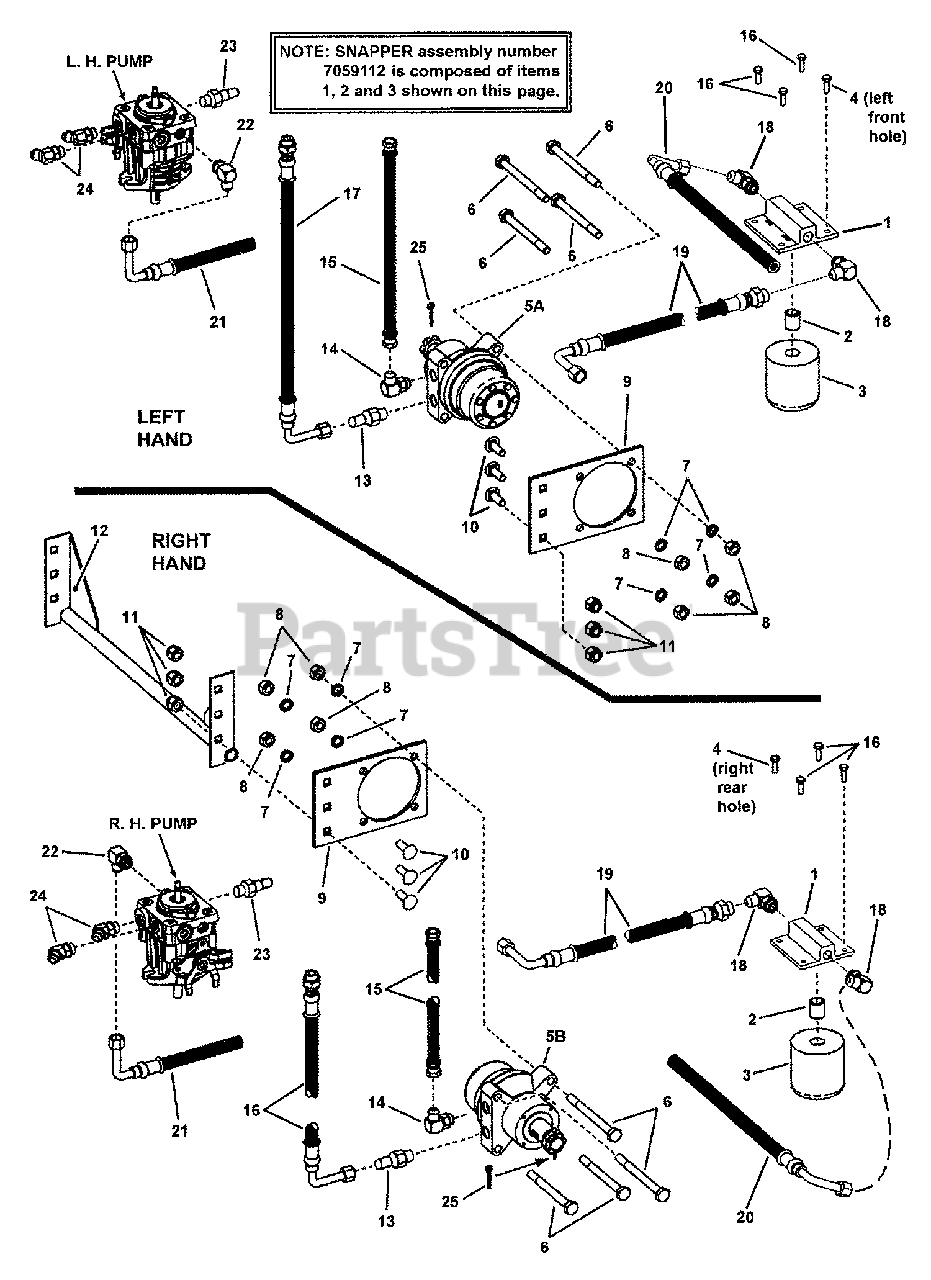

HOSE ASSEMBLY (52" DECK) Series1 Parts Diagram

  • Title

1

Snapper 7059112

MOUNT, Oil Filter
(Superseded to 7059112YP)

Note: Includes Filter Item #3

$265.99

$

Usually ships in 2-12 days

0

2

Snapper 7027200

FITTING, Straight 1-12 UNF Thread

$

$

Currently unavailable

3

Snapper 7027164

FILTER, Oil
(Superseded to 7027164YP)

$

$

Not available

4

Snapper 7090815

SCREW, 3/8-16 x 3/4" Hex Washer Self-Tap
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

5A

Snapper 7075637

MOTOR, Hydraulic, Left Hand
(Superseded to 7075637YP)

Note: Includes Castle Nut & #502 Woodruff Key, 5/16 x 1"

$1197.99

$

Usually ships in 2-12 days

0

5B

Snapper 7075638

MOTOR, Hydraulic, Right Hand
(Superseded to 7075638YP)

Note: Includes Castle Nut & #502 Woodruff Key, 5/16 x 1"

$712.99

$

Usually ships in 2-12 days

0

6

Snapper 7092087

BOLT, 1/2-13 x 6" Hex Head Cap GR 5
(Superseded to 7092087YP)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7091322

WASHER, 1/2" Split Lock
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

8

Snapper 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

9

Snapper 7073996

PLATE, Mounting
(Superseded to 7073996YP)

$58.99

$

Usually ships in 2-12 days

0

10

Snapper 7090768

BOLT, 1/2-13 x 1-1/2" Square Neck Carriage, GR 5
(Superseded to 7090768YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7091325

NUT, 1/2-13 Hex Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, only 3 left!

0

12

Snapper 7059091

WELDMENT, Rear Crossbrace
(Superseded to 7059091YP)

$

$

Not available

13

Snapper 7075058

CONNECTOR, Straight Hydraulic (Parker # 8-10 F5OLO-S)
(Superseded to 7075058YP)

$13.99

$

Usually ships in 2-12 days

0

14

Snapper 7075059

CONNECTOR, 90-Degree Hydraulic (Parker # 8-10 C5OLO-S)
(Superseded to 7075059YP)

$39.99

$

Usually ships in 2-12 days

0

15

Snapper 7075049

HOSE, 13-3/4" Hydraulic (Parker # F436BKJCJC080808-13-75)
(Superseded to 7075049YP)

$85.99

$

Usually ships in 2-12 days

0

16

Snapper 7090793

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 7090793YP)

$3.49

$

In Stock, only 3 left!

0

17

Snapper 7075051

HOSE, 17-1/2" Hydraulic (Parker # F436BKJCJ5080808-17.5)
(Superseded to 7075051YP)

$125.99

$

Usually ships in 2-12 days

0

18

Snapper 7075060

CONNECTOR, 90-Degree Hydraulic (Parker # 8 C5OLO-S)
(Superseded to 7075060YP)

$26.99

$

Usually ships in 2-12 days

0

19

Snapper 7075052

HOSE, 18-1/2" (Parker R836BKJCJ9090808-18.5)
(Superseded to 7075052YP)

$62.99

$

Usually ships in 2-12 days

0

20

Snapper 7075053

HOSE, 12-1/4" (Parker # R836BKJ9NR080008-12.5)
(Superseded to 7075053YP)

$53.99

$

Usually ships in 2-12 days

0

21

Snapper 7075054

HOSE, 6-1/2" (Parker # R836BKJ9NR080008-6.5
(Superseded to 7075054YP)

$56.99

$

Usually ships in 2-12 days

0

22

Snapper 7075056

CONNECTOR, 90-Degree Hydraulic (Parker # 8-6 C5OLO-S
(Superseded to 7075056YP)

$26.99

$

Usually ships in 2-12 days

0

23

Snapper 7075057

CONNECTOR, Straight Hydraulic (Parker # 8-6 F5OLO-S)
(Superseded to 7075057YP)

$11.99

$

Usually ships in 2-12 days

0

24

Snapper 7075055

CONNECTOR, 45-Degree Hydraulic (Parker # V5OLO-S)
(Superseded to 7075055YP)

$26.99

$

Usually ships in 2-12 days

0

25

Snapper 7091793

PIN, 9/64 x 1-1/2" Cotter
(Superseded to 7091793YP)

$2.99

$

Usually ships in 2-12 days

0
