NZMJ 23521 KH (84938) - Snapper 52" Zero-Turn Mower, 23hp Kohler FRONT FRAME ASSEMBLY PT.2 Parts Diagram

52" Zero-Turn Mower, 23hp Kohler

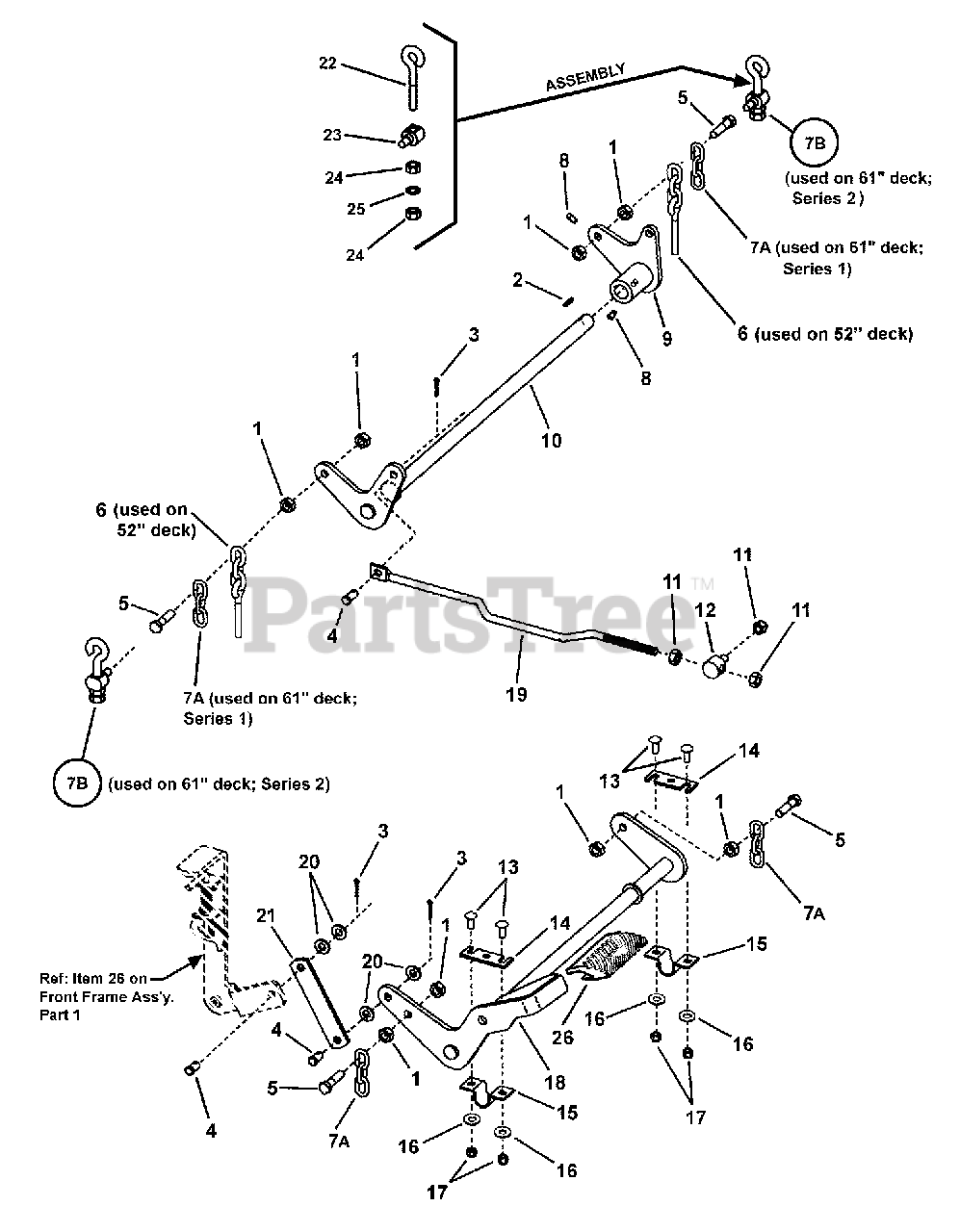

FRONT FRAME ASSEMBLY PT.2 Parts Diagram

  • Title

1

Snapper 7091544

NUT, 1/2-13 Hex Flange GR 5
(Superseded to 7091544SM)

$3.49

$

Usually ships in 2-12 days

0

2

Snapper 7091803

KEY, 3/16" Square x 1-1/2"
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

3

Snapper 7091516

PIN, 5/32 x 1" Cotter
(Superseded to 703984)

$4.49

$

In Stock, Qty 11

0

4

Snapper 7012802

PIN, 1/2 x 1-1/8" Clevis
(Superseded to 7012802SM)

$5.99

$

In Stock, only 2 left!

0

5

Snapper 7090543

SCREW, 1/2-13 x 2" Hex Head Cap, GR 5
(Superseded to 703817)

$5.99

$

Usually ships in 2-12 days

0

6

Snapper 7053562

ASSEMBLY, Chain & Eyebolt

Note: (used on 52" Deck Model only)

$

$

Not available

7A

Snapper 7059173

CHAIN, 3 Links

Note: (qty. 2 on 52" Deck; qty. 4 on 61" Deck (series 1))

$

$

Not available

7B

NLA - ASSEMBLY, Rear Linkage (incl. items 22 thru 25)

Note: (used on 61" Deck (series 2))

$

$

Not available

8

Snapper 7090848

SET SCREW, 5/16-18 Square Head Cup Point
(Superseded to 7090848SM)

$10.99

$

In Stock, only 1 left!

0

9

Snapper 7058182

WELDMENT, Bellcrank Lift
(Superseded to 7058182YP)

$196.99

$

Usually ships in 2-12 days

0

10

Snapper 7058148

WELDMENT, Rear Lift
(Superseded to 7058148YP)

$176.99

$

Usually ships in 2-12 days

0

11

Snapper 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 11

0

12

Snapper 7044858

SWIVEL, Timing Rod (1/2-13 External Thread)
(Superseded to 7044858SM)

$55.99

$

Usually ships in 2-12 days

0

13

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, GR 5
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

14

Snapper 7044870

SHIM PLATE
(Superseded to 7044870YP)

$22.99

$

Usually ships in 2-12 days

0

15

Snapper 7043803

BRACKET, Deck Support
(Superseded to 7043803YP)

$9.49

$

Usually ships in 2-12 days

0

16

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

17

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7058181

WELDMENT, Front Deck Lift

$

$

Currently unavailable

19

Snapper 7074579

ROD, Timing (1/2-13 Thread)
(Superseded to 7074579YP)

$39.99

$

Usually ships in 2-12 days

0

20

Snapper 7091587

WASHER, .531 I.D. Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

21

Snapper 7074698

LINK, Front
(Superseded to 7074698YP)

$15.99

$

Usually ships in 2-12 days

0

22

Snapper 7075783

ROD LINK (1/2-13 thread)
(Superseded to 7075783YP)

$12.99

$

Usually ships in 2-12 days

0

23

Snapper 7075782

ROD SWIVEL (1/2-13 thread)

$

$

Not available

24

Snapper 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

25

Snapper 7090509

WASHER, 1/2" Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

26

Snapper 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

$10.99

$

Usually ships in 2-12 days

0
