NZM 27613 KH (7800023) - Snapper 61" Zero-Turn Mower, 27hp Kohler REAR FRAME & TANK BRACKETS Parts Diagram

61" Zero-Turn Mower, 27hp Kohler

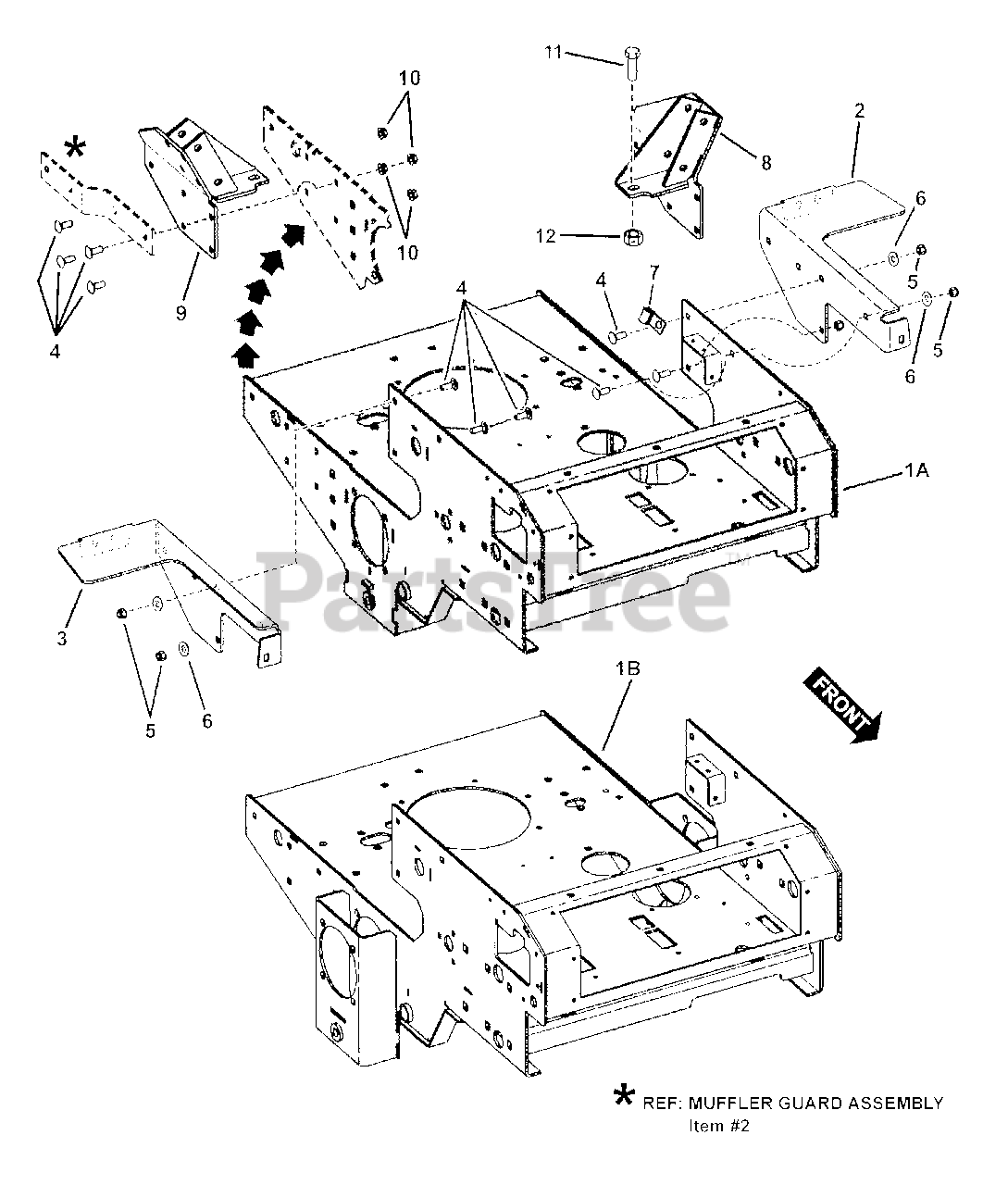

REAR FRAME & TANK BRACKETS Parts Diagram

  • Title

1A

Snapper 7044846

WELDMENT, Rear Frame (48" & 52" Deck)
(Superseded to 7044846YP)

$712.99

$

Usually ships in 2-12 days

0

1B

Snapper 7044816

WELDMENT, Rear Frame (61" Deck)
(Superseded to 7044816YP)

$968.99

$

Usually ships in 2-12 days

0

2

Snapper 7053476

WELDMENT, Left Hand Fuel Tank Bracket
(Superseded to 7053476YP)

$125.99

$

Usually ships in 2-12 days

0

3

Snapper 7053518

WELDMENT, Right Hand Fuel Tank Bracket
(Superseded to 7053518YP)

$153.99

$

Usually ships in 2-12 days

0

4

Snapper 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

5

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7035638

CLIP, Open 3/8" Cushioned
(Superseded to 7035638YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7400080

WELDMENT, Right Hand Socket
(Superseded to 7400080YP)

Note: see also on ROLL BAR PROTECTIVE STRUCTURE page

$142.99

$

Usually ships in 2-12 days

0

9

Snapper 7400081

WELDMENT, Left Hand Socket
(Superseded to 7400081YP)

Note: see also on ROLL BAR PROTECTIVE STRUCTURE page

$142.99

$

Usually ships in 2-12 days

0

10

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Snapper 7091884

SCREW, 1/2-13 x 1-1/2" Hex Head Cap
(Superseded to 703571)

Note: or 7090646 (1" long)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7091894

NUT, 1/2-13 Hex Center Lock, GR 5
(Superseded to 703894)

Note: or 7090975

$3.49

$

In Stock, Qty 9

0
